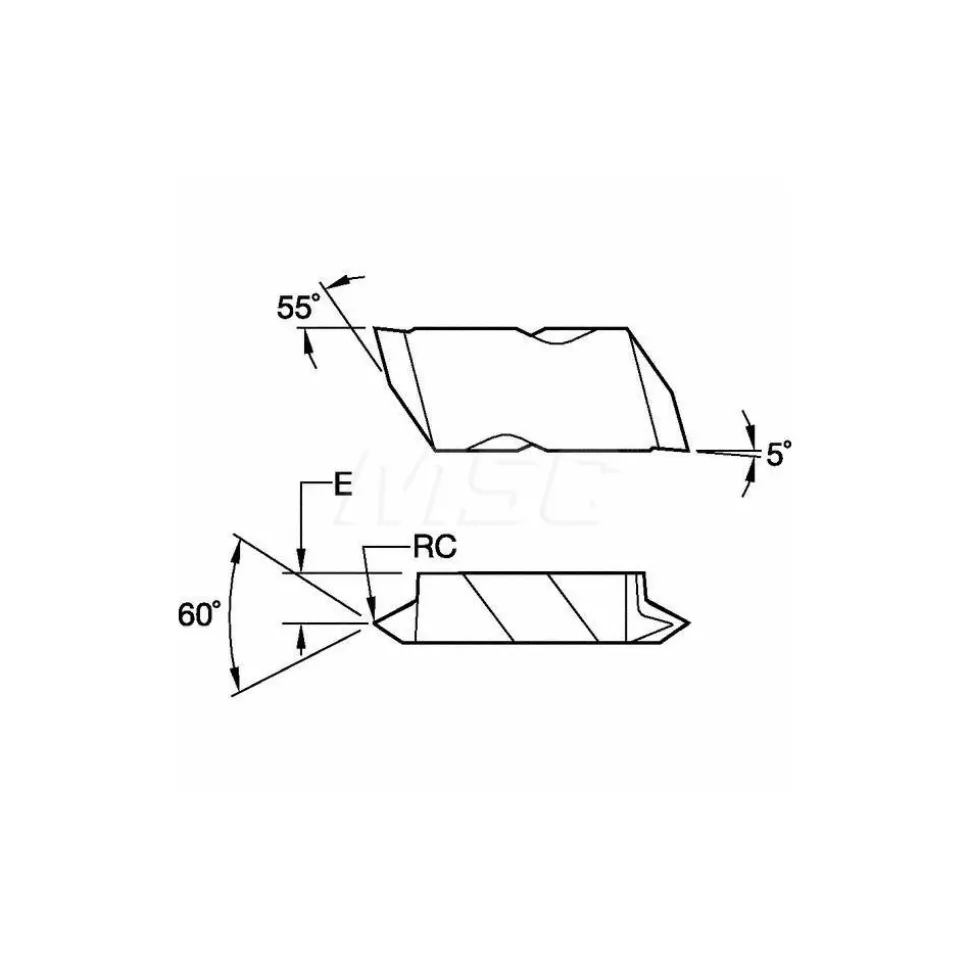

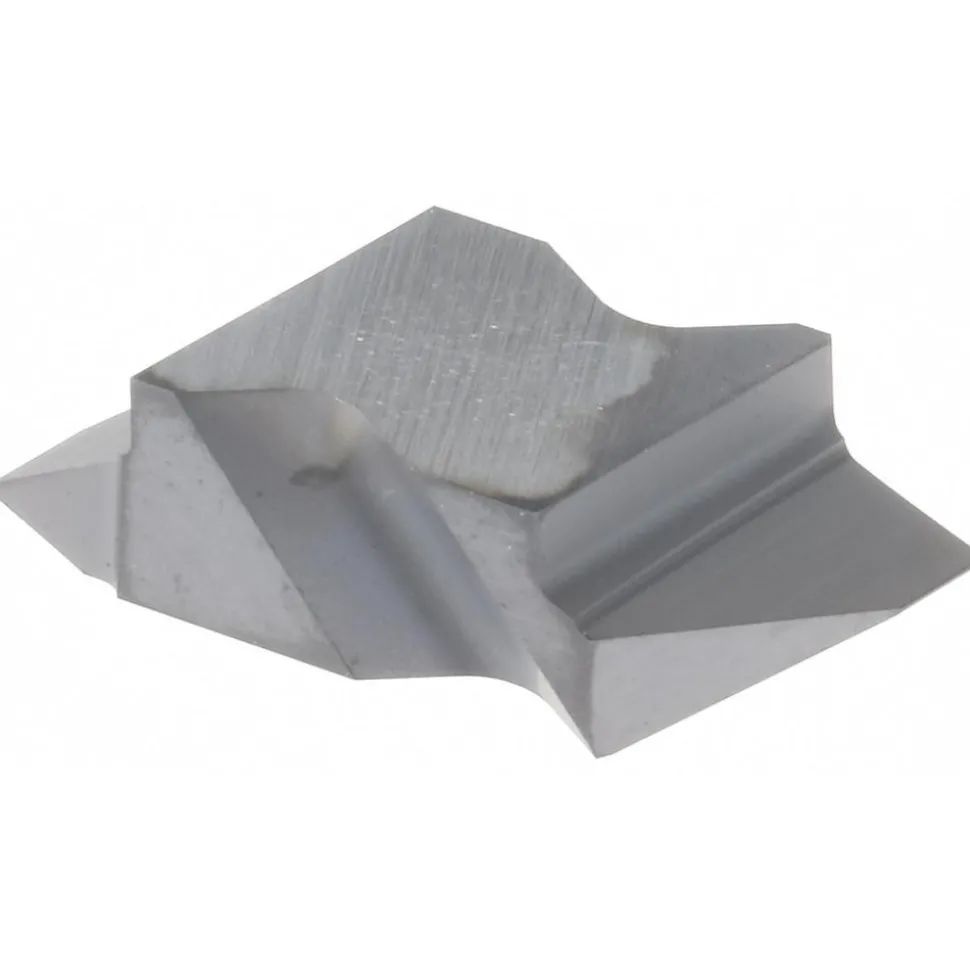

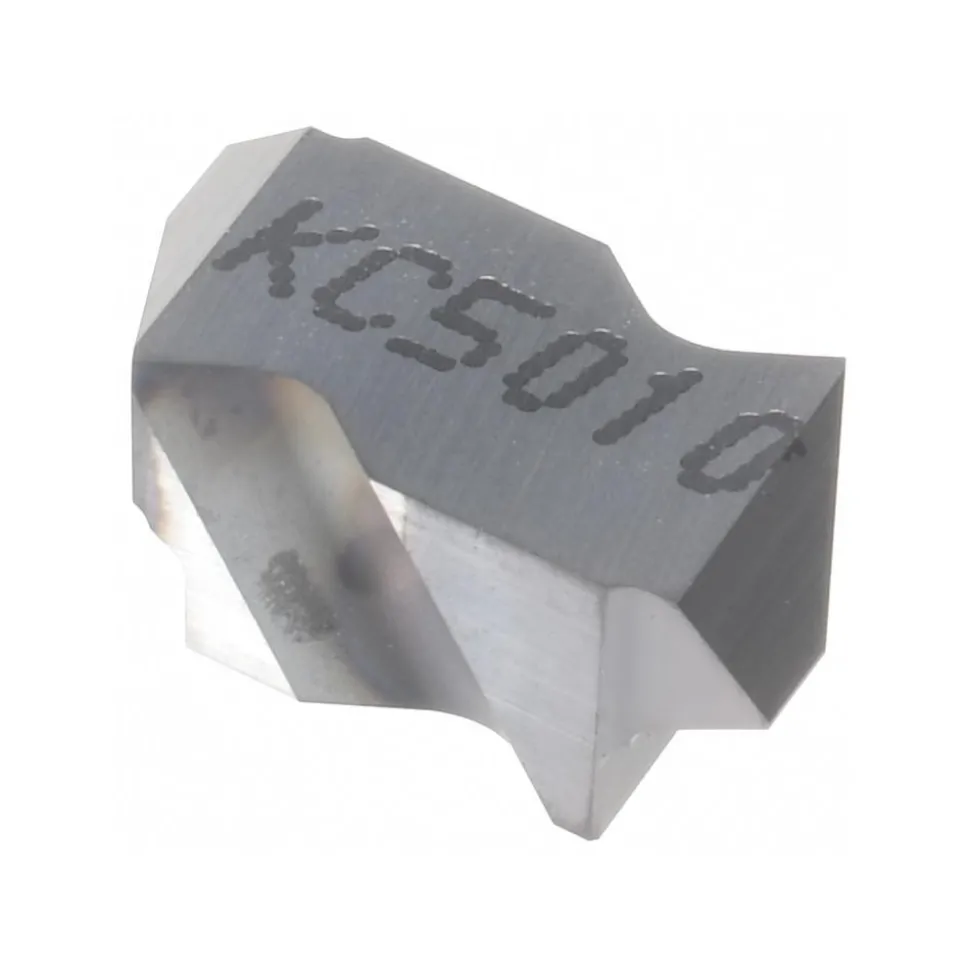

Threading Insert: NTK2R KC5010, Carbide

28,99 $

Specifications

Insert Style: NTK	Insert Material: Carbide
Manufacturer Grade: KC5010	Material Grade: C3; C4
Thread Standard: Partial Profile 60 Degree	Insert Hand: Right Hand
Internal Pitch: 12 to 24 TPI; 1.00 to 2.00 mm	External Pitch: 14-44 TPI; 0.60-1.75 mm
Included Angle: 60.00	Series: Top Notch
Coating Process: PVD	Tip to Top of Insert (Decimal Inch): 0.1098
Tip to Top of Insert (mm): 2.79	Corner Radius (Decimal Inch): 0.0031
Corner Radius (mm): 0.08	Thickness (mm): 3.81
Insert Size: 2	Thickness (Decimal Inch – 4 Decimals): 0.1500
Finish Coating: TiAlN	Thread Type: Internal; External
UNSPSC Code: 23291804	Country of Origin: VARIOUS
Insert Style: NTK
Insert Material: Carbide
Manufacturer Grade: KC5010
Material Grade: C3; C4
Thread Standard: Partial Profile 60 Degree
Insert Hand: Right Hand
Internal Pitch: 12 to 24 TPI; 1.00 to 2.00 mm
External Pitch: 14-44 TPI; 0.60-1.75 mm
Included Angle: 60.00
Series: Top Notch
Coating Process: PVD
Tip to Top of Insert (Decimal Inch): 0.1098
Tip to Top of Insert (mm): 2.79
Corner Radius (Decimal Inch): 0.0031
Corner Radius (mm): 0.08
Thickness (mm): 3.81
Insert Size: 2
Thickness (Decimal Inch – 4 Decimals): 0.1500
Finish Coating: TiAlN
Thread Type: Internal; External
UNSPSC Code: 23291804
Country of Origin: VARIOUS
