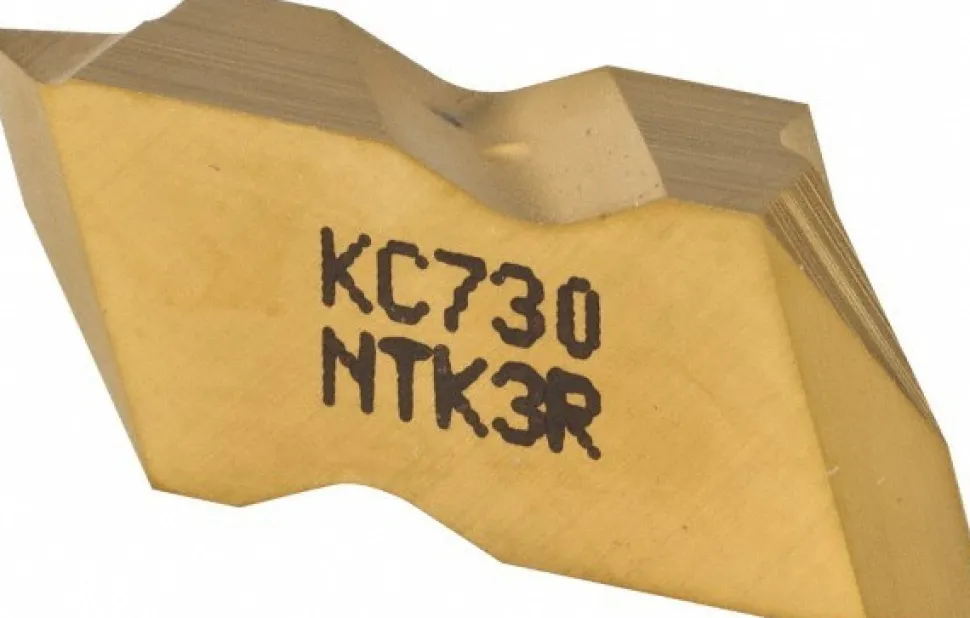

Threading Insert: NTK3R KC730, Carbide

Original price was: 40,00 $.Current price is: 28,99 $.

Specifications

Insert Style: NTK	Insert Material: Carbide
Manufacturer Grade: KC730	Material Grade: C3; C4; C2
Thread Standard: Partial Profile 60 Degree	Insert Hand: Right Hand
Internal Pitch: 1.00 to 2.50 mm; 9 to 24 TPI	External Pitch: 0.60-2.50 mm; 10-44 TPI
Included Angle: 60.00	Series: Top Notch
Coating Process: PVD	Tip to Top of Insert (Decimal Inch): 0.1409
Tip to Top of Insert (mm): 3.58	Corner Radius (Decimal Inch): 0.0031
Corner Radius (mm): 0.08	Thickness (mm): 4.95
Insert Size: 3	Thickness (Decimal Inch – 4 Decimals): 0.1949
Finish Coating: Titanium Nitride	Thread Type: Internal; External
UNSPSC Code: 23291804	Country of Origin: UNITED STATES
Insert Style: NTK
Insert Material: Carbide
Manufacturer Grade: KC730
Material Grade: C3; C4; C2
Thread Standard: Partial Profile 60 Degree
Insert Hand: Right Hand
Internal Pitch: 1.00 to 2.50 mm; 9 to 24 TPI
External Pitch: 0.60-2.50 mm; 10-44 TPI
Included Angle: 60.00
Series: Top Notch
Coating Process: PVD
Tip to Top of Insert (Decimal Inch): 0.1409
Tip to Top of Insert (mm): 3.58
Corner Radius (Decimal Inch): 0.0031
Corner Radius (mm): 0.08
Thickness (mm): 4.95
Insert Size: 3
Thickness (Decimal Inch – 4 Decimals): 0.1949
Finish Coating: Titanium Nitride
Thread Type: Internal; External
UNSPSC Code: 23291804
Country of Origin: UNITED STATES
