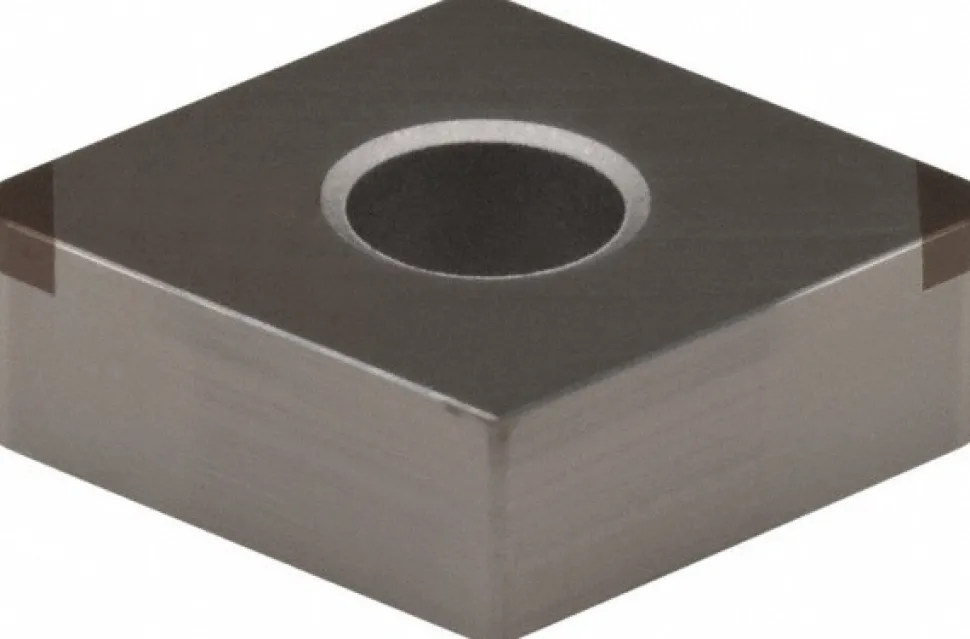

Turning Insert: 2NUCNGA432 BN350, PCBN
Original price was: 74,00 $.54,89 $Current price is: 54,89 $.
Specifications
| Insert Style: CNGA | ANSI Size Code: 432 |
| ISO Size Code: 120408 | Insert Shape: C – Diamond (Rhombic) 80-Deg |
| Included Angle: 80.00 | Inscribed Circle (Decimal Inch): 0.5000 |
| Inscribed Circle (Inch): 1/2 | Inscribed Circle (mm): 12.70 |
| Corner Radius (Inch): 1/32 | Corner Radius (Decimal Inch): 0.0313 |
| Insert Material: PCBN | Manufacturer Grade: BN350 |
| Coating/Finish: Bright/Uncoated | Relief Angle: 0.000 |
| Insert Thickness (Inch): 3/16 | Insert Thickness (Decimal Inch): 0.1875 |
| Series: C | Side Clearance: Negative |
| Number Of Cutting Edges: 2 | Hole Diameter (Decimal Inch): 0.2030 |
| ANSI Insert Code: CNGA432 | ISO Insert Code: CNGA120408 |
| Insert Holding Method: Pin; Clamp | Clearance Code: N |
| Tolerance Code: G | Coating Process: Uncoated |
| Rake: Negative | Insert Length (Decimal Inch): 0.0945 |
| Primary Workpiece Material: Hard Material | Primary Workpiece Material Code: H |
| Iso Code: 2NU-CNGA120408 | Standards: ISO 13399; ANSI |
| Material Grade: C2 | Chip Breaker: A |
| UNSPSC Code: 23242105 | Country of Origin: VARIOUS |
| Insert Style: CNGA | |
| ANSI Size Code: 432 | |
| ISO Size Code: 120408 | |
| Insert Shape: C – Diamond (Rhombic) 80-Deg | |
| Included Angle: 80.00 | |
| Inscribed Circle (Decimal Inch): 0.5000 | |
| Inscribed Circle (Inch): 1/2 | |
| Inscribed Circle (mm): 12.70 | |
| Corner Radius (Inch): 1/32 | |
| Corner Radius (Decimal Inch): 0.0313 | |
| Insert Material: PCBN | |
| Manufacturer Grade: BN350 | |
| Coating/Finish: Bright/Uncoated | |
| Relief Angle: 0.000 | |
| Insert Thickness (Inch): 3/16 | |
| Insert Thickness (Decimal Inch): 0.1875 | |
| Series: C | |
| Side Clearance: Negative | |
| Number Of Cutting Edges: 2 | |
| Hole Diameter (Decimal Inch): 0.2030 | |
| ANSI Insert Code: CNGA432 | |
| ISO Insert Code: CNGA120408 | |
| Insert Holding Method: Pin; Clamp | |
| Clearance Code: N | |
| Tolerance Code: G | |
| Coating Process: Uncoated | |
| Rake: Negative | |
| Insert Length (Decimal Inch): 0.0945 | |
| Primary Workpiece Material: Hard Material | |
| Primary Workpiece Material Code: H | |
| Iso Code: 2NU-CNGA120408 | |
| Standards: ISO 13399; ANSI | |
| Material Grade: C2 | |
| Chip Breaker: A | |
| UNSPSC Code: 23242105 | |
| Country of Origin: VARIOUS |
| MSC# | 70875612 |
| Mfr# | 16GCAUM |
| Big Book# | 824 |
