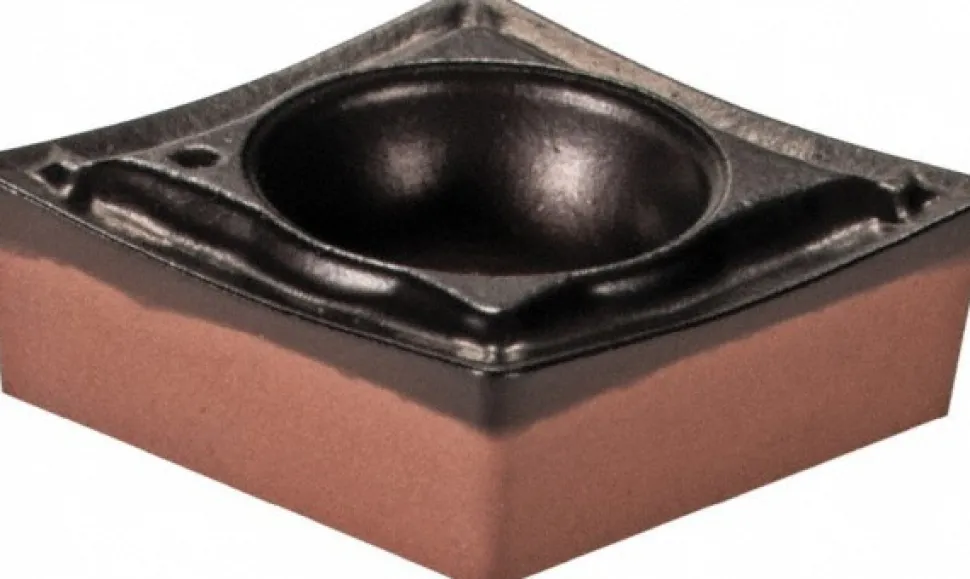

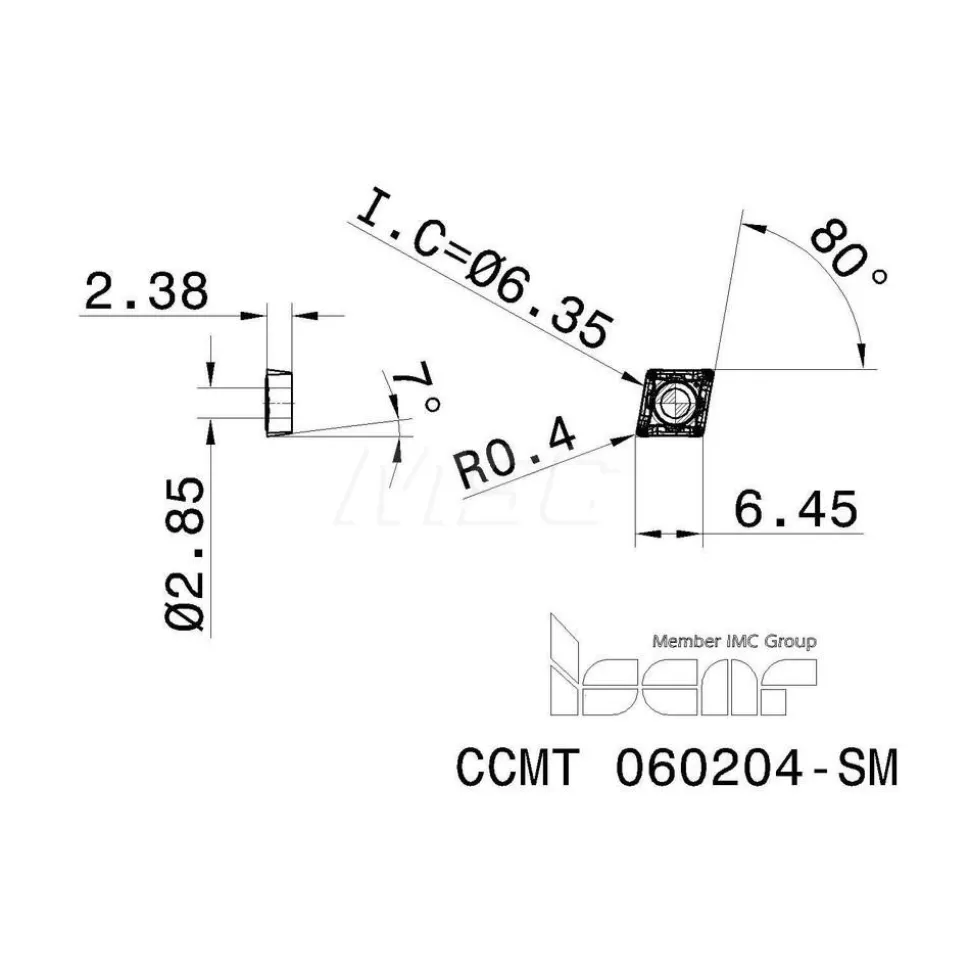

Turning Insert: CCMT2-1-SM IC6015, Carbide
Original price was: 19,00 $.13,99 $Current price is: 13,99 $.
Specifications
| Insert Style: CCMT | ANSI Size Code: 2-1 |
| ISO Size Code: 060204 | Insert Shape: C – Diamond (Rhombic) 80-Deg |
| Included Angle: 80.00 | Inscribed Circle (Decimal Inch): 0.2500 |
| Inscribed Circle (Inch): 1/4 | Corner Radius (Inch): 1/64 |
| Corner Radius (Decimal Inch): 0.0160 | Insert Material: Carbide |
| Manufacturer Grade: IC6015 | Coating/Finish: TiCN; TiN; Al2O3 |
| Relief Angle: 7.000 | Insert Thickness (Inch): 3/32 |
| Insert Thickness (Decimal Inch): 0.0940 | Series: Isoturn |
| Chip Breaker Operation: Medium Machining; Finishing | Grade Characteristics: Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance: Positive | Hole Diameter (Decimal Inch): 0.1100 |
| Hole Diameter (mm): 2.79 | Maximum Depth of Cut (mm): 2.49 |
| Maximum Depth of Cut (Decimal Inch): 0.0980 | ANSI Insert Code: CCMT2-1 |
| ISO Insert Code: CCMT060204 | Insert Holding Method: Screw |
| Clearance Code: C | Tolerance Code: M |
| Coating Process: CVD | Rake: Positive |
| Insert Length (Decimal Inch): 0.2540 | Insert Length (mm): 6.45 |
| Primary Workpiece Material: Stainless Steel | Primary Workpiece Material Code: M |
| Iso Code: CCMT 2-1-SM | Standards: ISO 13399 |
| Chip Breaker: SM | Multi-Use Tool: Yes |
| Full Radius: No | Multi-Use Application: Chamfering; Boring |
| UNSPSC Code: 23242105 | Country of Origin: Israel |
| Insert Style: CCMT | |
| ANSI Size Code: 2-1 | |
| ISO Size Code: 060204 | |
| Insert Shape: C – Diamond (Rhombic) 80-Deg | |
| Included Angle: 80.00 | |
| Inscribed Circle (Decimal Inch): 0.2500 | |
| Inscribed Circle (Inch): 1/4 | |
| Corner Radius (Inch): 1/64 | |
| Corner Radius (Decimal Inch): 0.0160 | |
| Insert Material: Carbide | |
| Manufacturer Grade: IC6015 | |
| Coating/Finish: TiCN; TiN; Al2O3 | |
| Relief Angle: 7.000 | |
| Insert Thickness (Inch): 3/32 | |
| Insert Thickness (Decimal Inch): 0.0940 | |
| Series: Isoturn | |
| Chip Breaker Operation: Medium Machining; Finishing | |
| Grade Characteristics: Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness | |
| Side Clearance: Positive | |
| Hole Diameter (Decimal Inch): 0.1100 | |
| Hole Diameter (mm): 2.79 | |
| Maximum Depth of Cut (mm): 2.49 | |
| Maximum Depth of Cut (Decimal Inch): 0.0980 | |
| ANSI Insert Code: CCMT2-1 | |
| ISO Insert Code: CCMT060204 | |
| Insert Holding Method: Screw | |
| Clearance Code: C | |
| Tolerance Code: M | |
| Coating Process: CVD | |
| Rake: Positive | |
| Insert Length (Decimal Inch): 0.2540 | |
| Insert Length (mm): 6.45 | |
| Primary Workpiece Material: Stainless Steel | |
| Primary Workpiece Material Code: M | |
| Iso Code: CCMT 2-1-SM | |
| Standards: ISO 13399 | |
| Chip Breaker: SM | |
| Multi-Use Tool: Yes | |
| Full Radius: No | |
| Multi-Use Application: Chamfering; Boring | |
| UNSPSC Code: 23242105 | |
| Country of Origin: Israel |
| MSC# | 57486029 |
| Mfr# | 5566932 |
