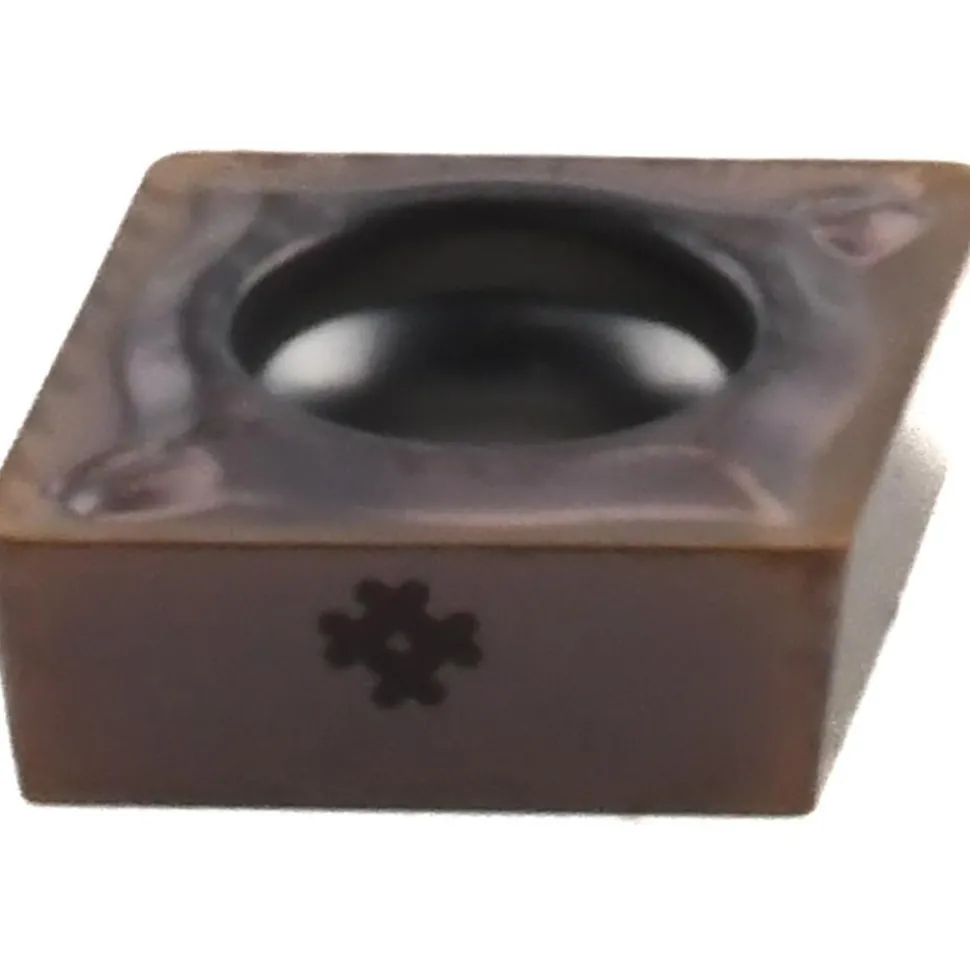

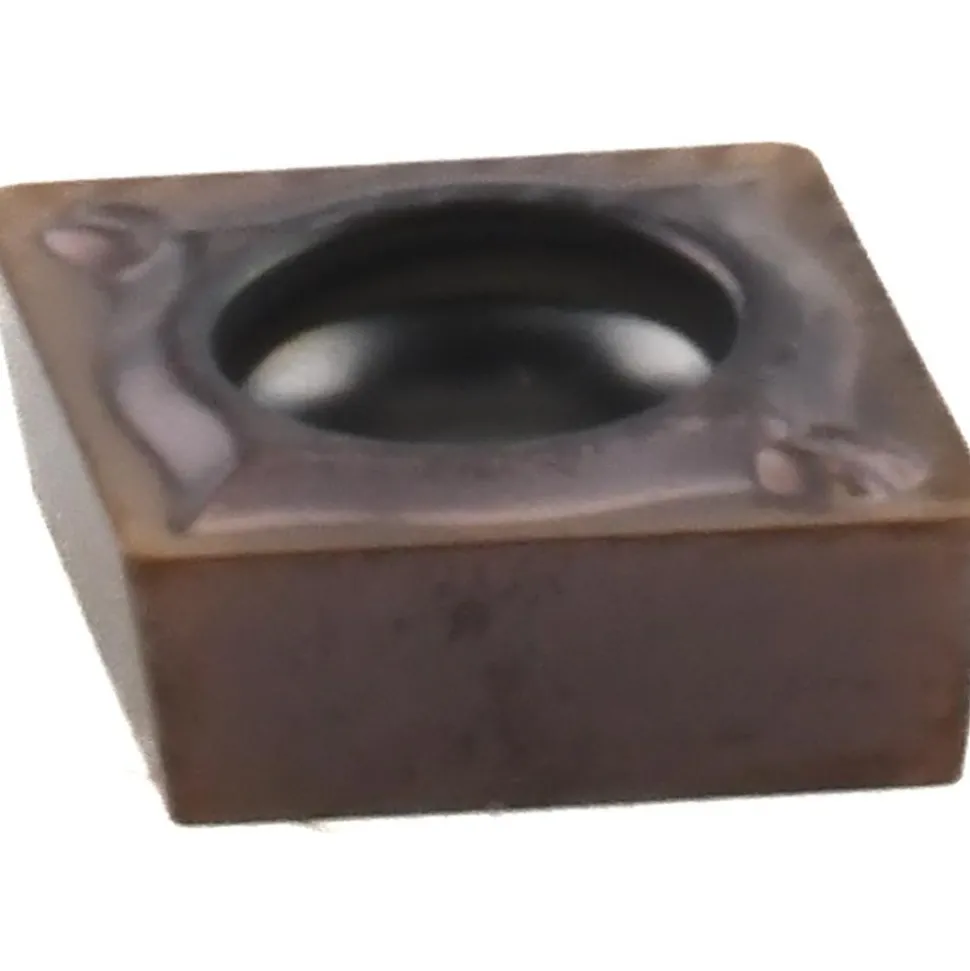

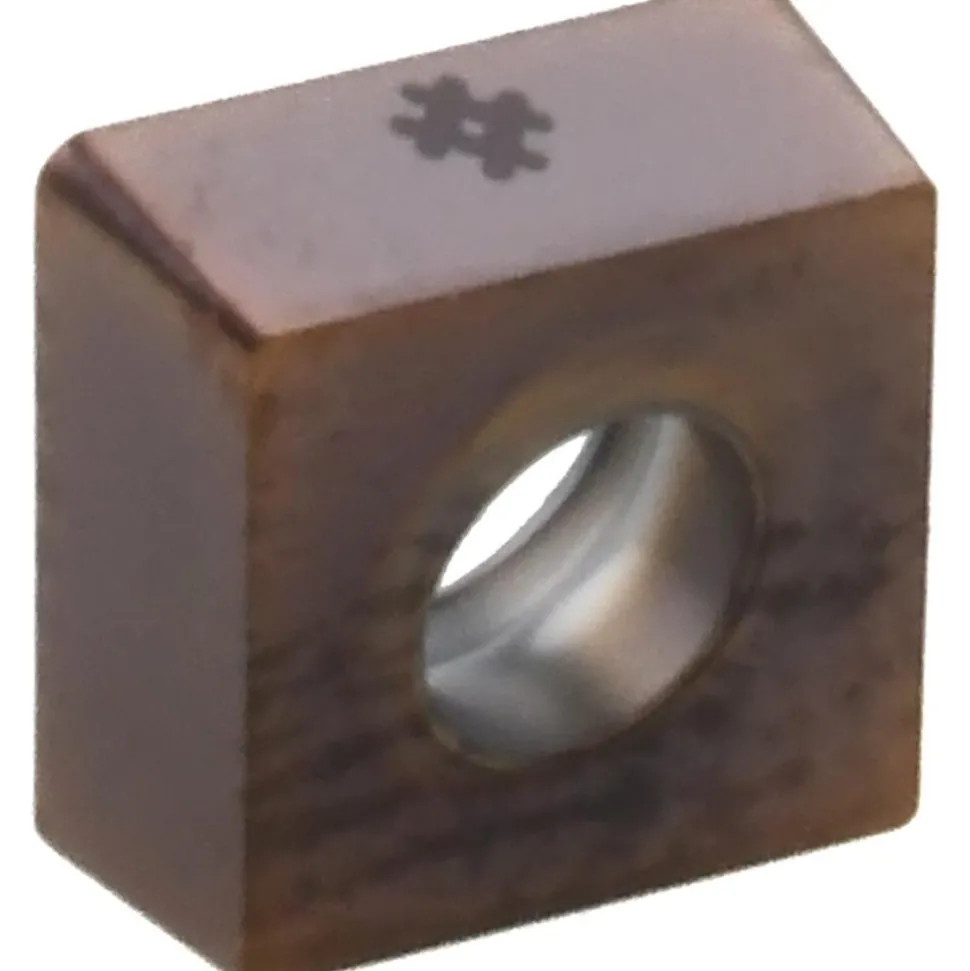

Turning Insert: CCMT21.51ESU AC520U, Carbide
Original price was: 10,00 $.7,99 $Current price is: 7,99 $.
Specifications
| Insert Style: CCMT | ANSI Size Code: 21.51 |
| ISO Size Code: 060204 | Insert Shape: C – Diamond (Rhombic) 80-Deg |
| Included Angle: 80.00 | Inscribed Circle (Decimal Inch): 0.2500 |
| Inscribed Circle (Inch): 1/4 | Inscribed Circle (mm): 6.35 |
| Corner Radius (Inch): 1/64 | Corner Radius (Decimal Inch): 0.0156 |
| Insert Material: Carbide | Manufacturer Grade: AC520U |
| Coating/Finish: Coated | Relief Angle: 7.000 |
| Insert Thickness (Inch): 3/32 | Insert Thickness (Decimal Inch): 0.0937 |
| Insert Hand: Neutral | Series: CC |
| Chip Breaker Operation: Light Machining; Finishing | Grade Characteristics: Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – Moderate Wear-Resistance and Toughness |
| Side Clearance: Positive | Hole Diameter (Decimal Inch): 0.1100 |
| ANSI Insert Code: CCMT21.51 | ISO Insert Code: CCMT060204 |
| Insert Holding Method: Screw | Clearance Code: C |
| Tolerance Code: M | Coating Process: PVD |
| Rake: Positive | Insert Length (Decimal Inch): 0.2520 |
| Primary Workpiece Material Code: S; M | Secondary Workpiece Material: Superalloy; Stainless Steel |
| Secondary Workpiece Material Code: S; M | Iso Code: CCMT060204N-SU |
| Standards: ISO 13399; ANSI | Material Grade: C3; C2 |
| Proprietary Coating Designation: ZX | Chip Breaker: ESU |
| Rake Angle: 8 | UNSPSC Code: 23242105 |
| Country of Origin: Japan | |
| Insert Style: CCMT | |
| ANSI Size Code: 21.51 | |
| ISO Size Code: 060204 | |
| Insert Shape: C – Diamond (Rhombic) 80-Deg | |
| Included Angle: 80.00 | |
| Inscribed Circle (Decimal Inch): 0.2500 | |
| Inscribed Circle (Inch): 1/4 | |
| Inscribed Circle (mm): 6.35 | |
| Corner Radius (Inch): 1/64 | |
| Corner Radius (Decimal Inch): 0.0156 | |
| Insert Material: Carbide | |
| Manufacturer Grade: AC520U | |
| Coating/Finish: Coated | |
| Relief Angle: 7.000 | |
| Insert Thickness (Inch): 3/32 | |
| Insert Thickness (Decimal Inch): 0.0937 | |
| Insert Hand: Neutral | |
| Series: CC | |
| Chip Breaker Operation: Light Machining; Finishing | |
| Grade Characteristics: Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – Moderate Wear-Resistance and Toughness | |
| Side Clearance: Positive | |
| Hole Diameter (Decimal Inch): 0.1100 | |
| ANSI Insert Code: CCMT21.51 | |
| ISO Insert Code: CCMT060204 | |
| Insert Holding Method: Screw | |
| Clearance Code: C | |
| Tolerance Code: M | |
| Coating Process: PVD | |
| Rake: Positive | |
| Insert Length (Decimal Inch): 0.2520 | |
| Primary Workpiece Material Code: S; M | |
| Secondary Workpiece Material: Superalloy; Stainless Steel | |
| Secondary Workpiece Material Code: S; M | |
| Iso Code: CCMT060204N-SU | |
| Standards: ISO 13399; ANSI | |
| Material Grade: C3; C2 | |
| Proprietary Coating Designation: ZX | |
| Chip Breaker: ESU | |
| Rake Angle: 8 | |
| UNSPSC Code: 23242105 | |
| Country of Origin: Japan |
| MSC# | 59692350 |
| Mfr# | 19HWW0P |
