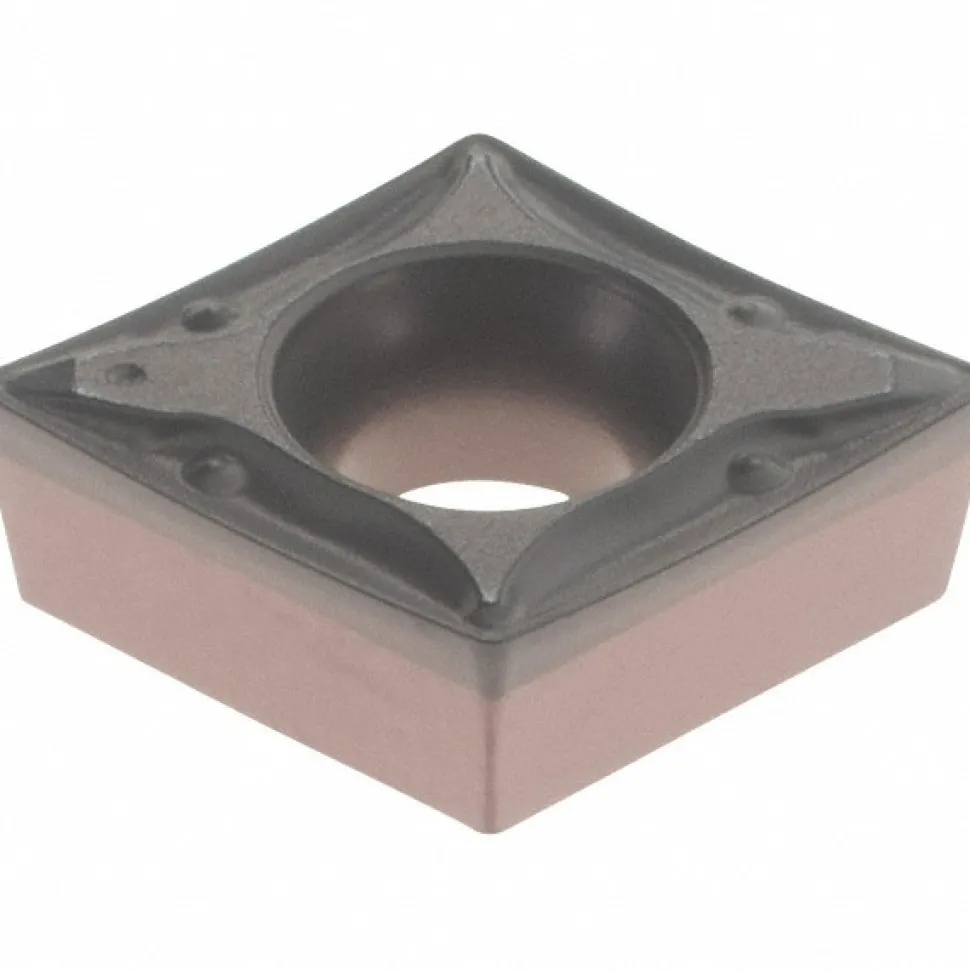

Turning Insert: CCMT3-1-PF IC6015, Carbide
15,99 $
Specifications
| Insert Style: CCMT | ANSI Size Code: 3-1 |
| ISO Size Code: 09T304 | Insert Shape: C – Diamond (Rhombic) 80-Deg |
| Included Angle: 80.00 | Inscribed Circle (Decimal Inch): 0.3750 |
| Corner Radius (mm): 0.40 | Corner Radius (Decimal Inch): 0.0157 |
| Insert Material: Carbide | Manufacturer Grade: IC6015 |
| Coating/Finish: TiCN; TiN; AI2O3 | Relief Angle: 7.000 |
| Series: Isoturn | Chip Breaker Operation: Finishing |
| Grade Characteristics: Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness | Side Clearance: Positive |
| Hole Diameter (Decimal Inch): 0.1730 | Hole Diameter (mm): 4.40 |
| Maximum Depth of Cut (mm): 3.50 | Maximum Depth of Cut (Decimal Inch): 0.1380 |
| ANSI Insert Code: CCMT3-1 | ISO Insert Code: CCMT09T304 |
| Clearance Code: C | Tolerance Code: M |
| Coating Process: CVD | Rake: Positive |
| Primary Workpiece Material: Stainless Steel | Primary Workpiece Material Code: M |
| Iso Code: ISO 13399 | Standards: ISO 13399 |
| Chip Breaker: PF | UNSPSC Code: 23242105 |
| Country of Origin: Israel | |
| Insert Style: CCMT | |
| ANSI Size Code: 3-1 | |
| ISO Size Code: 09T304 | |
| Insert Shape: C – Diamond (Rhombic) 80-Deg | |
| Included Angle: 80.00 | |
| Inscribed Circle (Decimal Inch): 0.3750 | |
| Corner Radius (mm): 0.40 | |
| Corner Radius (Decimal Inch): 0.0157 | |
| Insert Material: Carbide | |
| Manufacturer Grade: IC6015 | |
| Coating/Finish: TiCN; TiN; AI2O3 | |
| Relief Angle: 7.000 | |
| Series: Isoturn | |
| Chip Breaker Operation: Finishing | |
| Grade Characteristics: Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness | |
| Side Clearance: Positive | |
| Hole Diameter (Decimal Inch): 0.1730 | |
| Hole Diameter (mm): 4.40 | |
| Maximum Depth of Cut (mm): 3.50 | |
| Maximum Depth of Cut (Decimal Inch): 0.1380 | |
| ANSI Insert Code: CCMT3-1 | |
| ISO Insert Code: CCMT09T304 | |
| Clearance Code: C | |
| Tolerance Code: M | |
| Coating Process: CVD | |
| Rake: Positive | |
| Primary Workpiece Material: Stainless Steel | |
| Primary Workpiece Material Code: M | |
| Iso Code: ISO 13399 | |
| Standards: ISO 13399 | |
| Chip Breaker: PF | |
| UNSPSC Code: 23242105 | |
| Country of Origin: Israel |
| MSC# | 69790160 |
| Mfr# | 5566992 |
