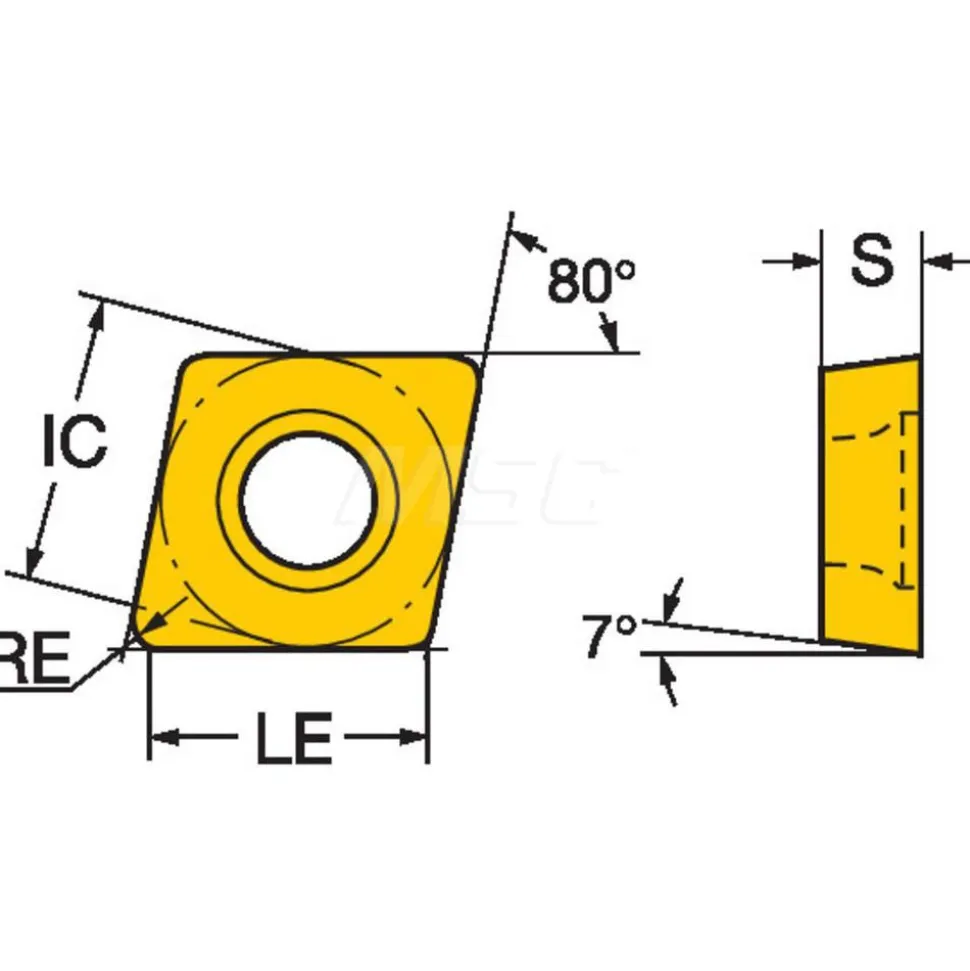

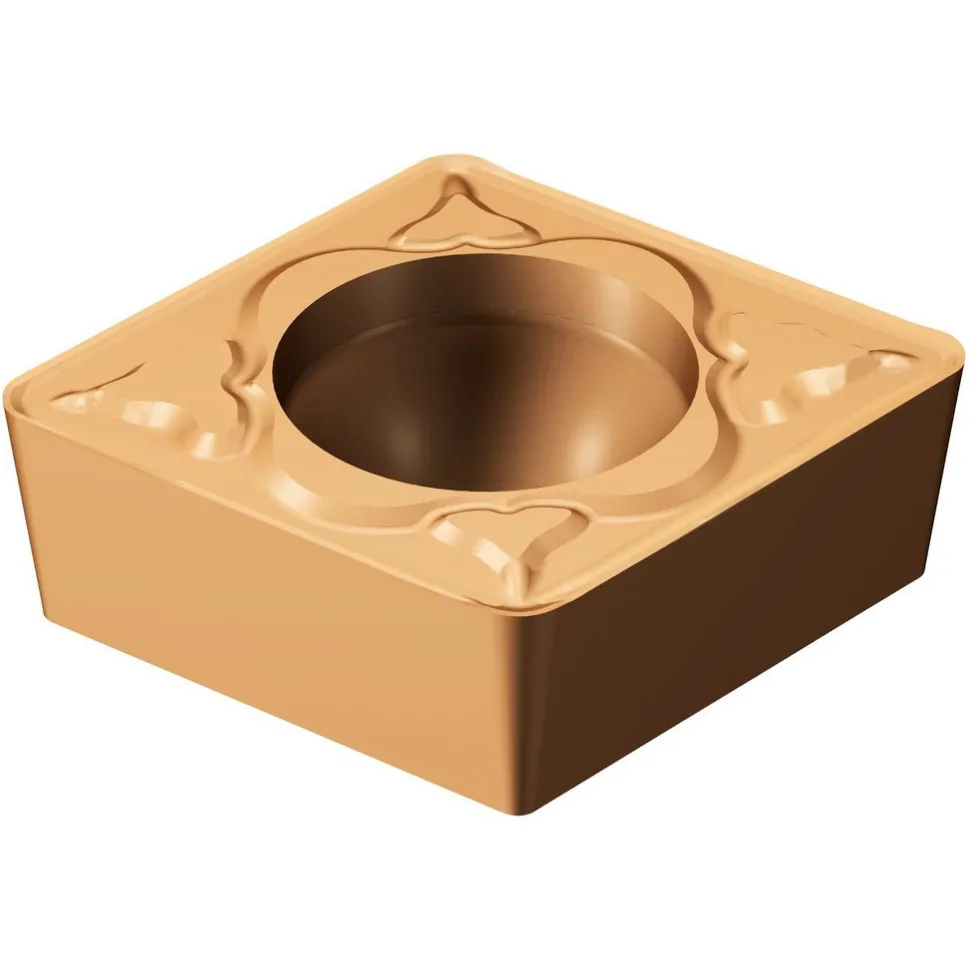

Turning Insert: CCMT32.52-MM 1125, Carbide

Turning Insert: CCMT32.52-MM 1125, Carbide

13,99 $

SKU: SKUneeFWmbEgq Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: Sandvik Coromant Brand: Sandvik Coromant

Description
Reviews (0)

Specifications

Insert Style: CCMT	ANSI Size Code: 32.52
ISO Size Code: 09T308	Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00	Inscribed Circle (Decimal Inch): 0.3750
Inscribed Circle (Inch): 3/8	Corner Radius (Inch): 1/32
Corner Radius (mm): 0.79	Corner Radius (Decimal Inch): 0.0313
Insert Material: Carbide	Manufacturer Grade: 1125
Coating/Finish: AlCr2O3; TiAlN	Relief Angle: 7.000
Wiper Edge: No	Insert Thickness (Inch): 5/32
Insert Thickness (Decimal Inch): 0.1563	Insert Thickness: 3.97
Insert Hand: Neutral	Series: CoroTurn 107
Chip Breaker Operation: Medium Machining; Roughing	Grade Characteristics: Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – Moderate Wear-Resistance and Toughness
Side Clearance: Positive	Number Of Cutting Edges: 2
Hole Diameter (Decimal Inch): 0.1732	Hole Diameter (mm): 4.40
ANSI Insert Code: CCMT32.52	ISO Insert Code: CCMT09T308
Insert Holding Method: Screw	Clearance Code: C
Tolerance Code: M	Coating Process: PVD
Insert Length (Decimal Inch): 0.3493	Insert Length (mm): 8.87
Primary Workpiece Material: Steel	Primary Workpiece Material Code: S; M
Secondary Workpiece Material: Stainless Steel	Secondary Workpiece Material Code: M
Iso Code: CCMT 09 T3 08-MM 1125	Chip Breaker: MM
UNSPSC Code: 23242105	Country of Origin: VARIOUS
Insert Style: CCMT
ANSI Size Code: 32.52
ISO Size Code: 09T308
Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00
Inscribed Circle (Decimal Inch): 0.3750
Inscribed Circle (Inch): 3/8
Corner Radius (Inch): 1/32
Corner Radius (mm): 0.79
Corner Radius (Decimal Inch): 0.0313
Insert Material: Carbide
Manufacturer Grade: 1125
Coating/Finish: AlCr2O3; TiAlN
Relief Angle: 7.000
Wiper Edge: No
Insert Thickness (Inch): 5/32
Insert Thickness (Decimal Inch): 0.1563
Insert Thickness: 3.97
Insert Hand: Neutral
Series: CoroTurn 107
Chip Breaker Operation: Medium Machining; Roughing
Grade Characteristics: Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – Moderate Wear-Resistance and Toughness
Side Clearance: Positive
Number Of Cutting Edges: 2
Hole Diameter (Decimal Inch): 0.1732
Hole Diameter (mm): 4.40
ANSI Insert Code: CCMT32.52
ISO Insert Code: CCMT09T308
Insert Holding Method: Screw
Clearance Code: C
Tolerance Code: M
Coating Process: PVD
Insert Length (Decimal Inch): 0.3493
Insert Length (mm): 8.87
Primary Workpiece Material: Steel
Primary Workpiece Material Code: S; M
Secondary Workpiece Material: Stainless Steel
Secondary Workpiece Material Code: M
Iso Code: CCMT 09 T3 08-MM 1125
Chip Breaker: MM
UNSPSC Code: 23242105
Country of Origin: VARIOUS
