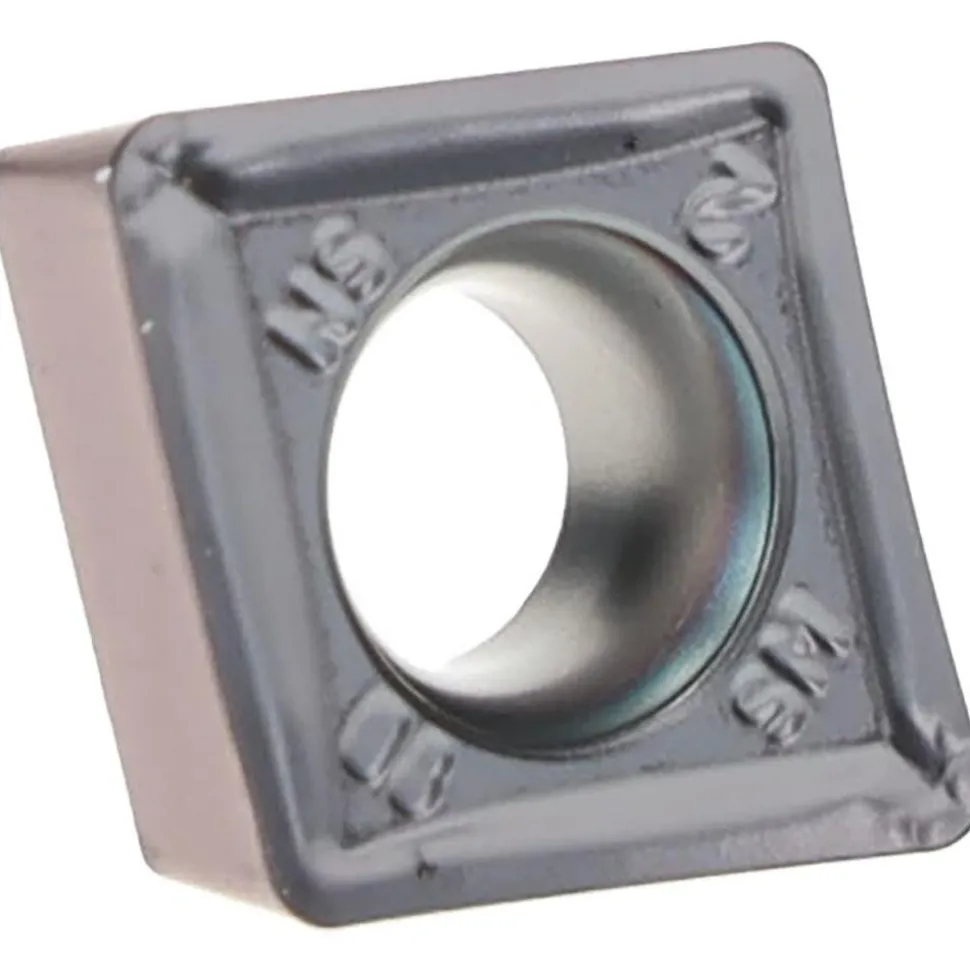

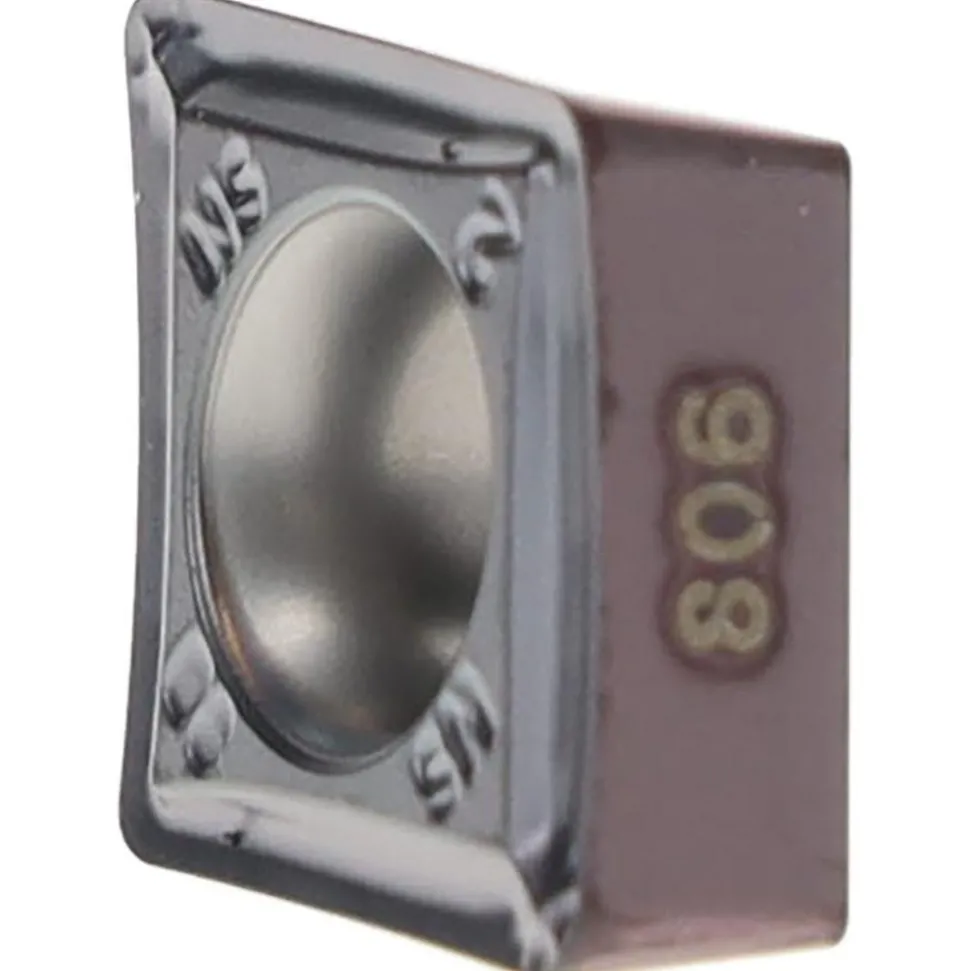

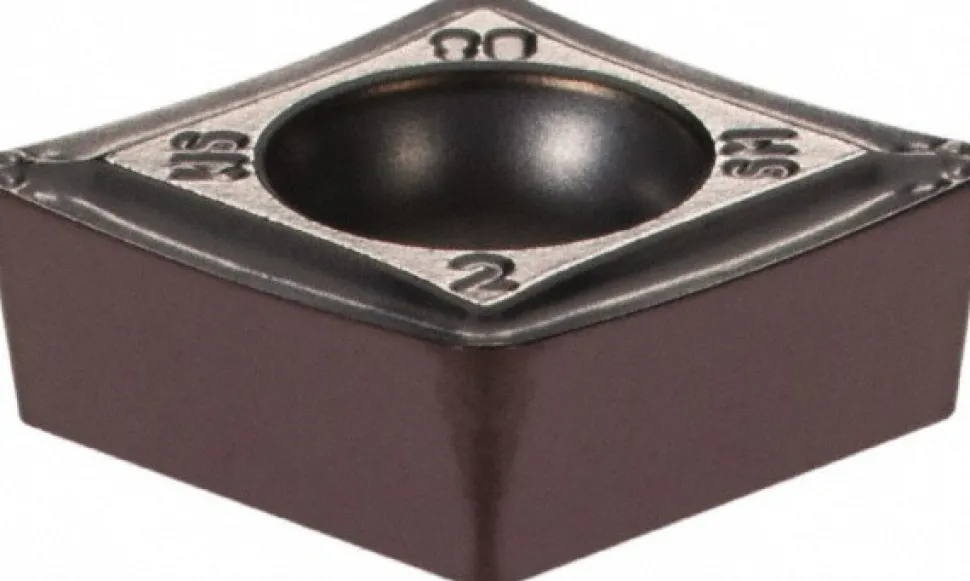

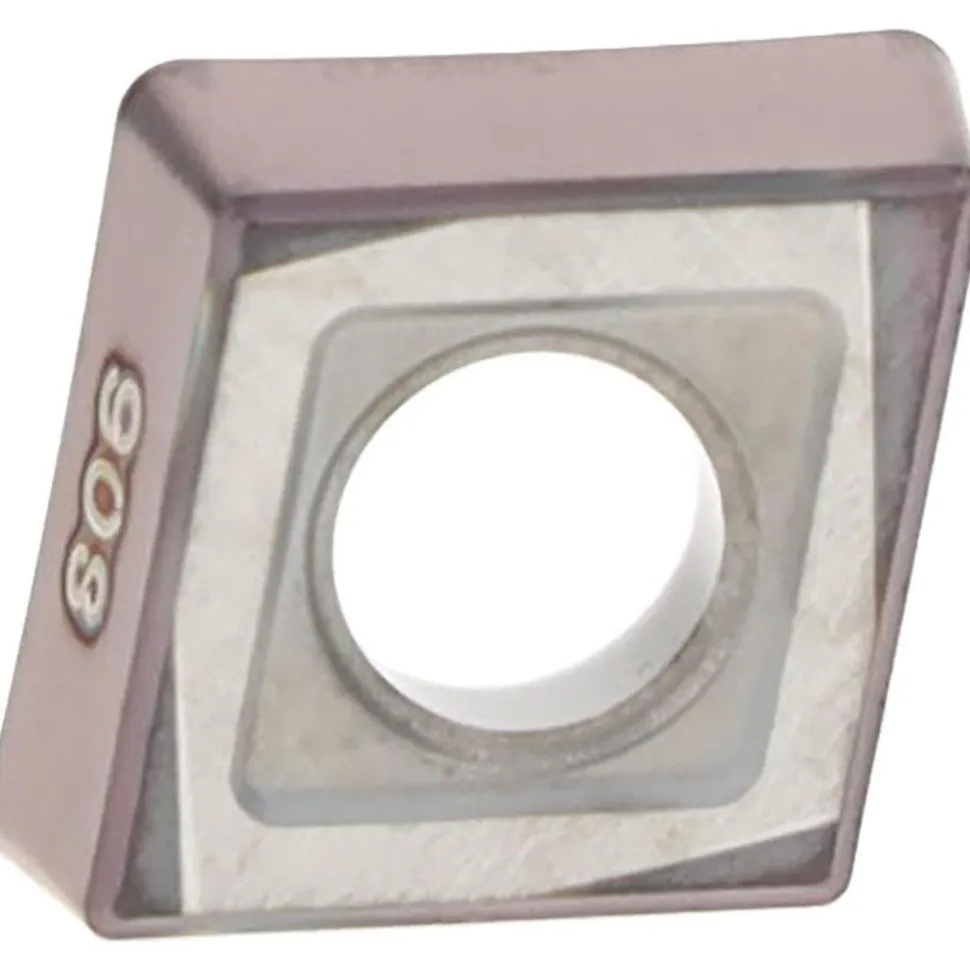

Turning Insert: CCMT32SM IC806, Carbide

14,99 $

SKU: SKUoDg7zK2YY4 Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: Iscar Brand: Iscar

Description
Reviews (0)

Specifications

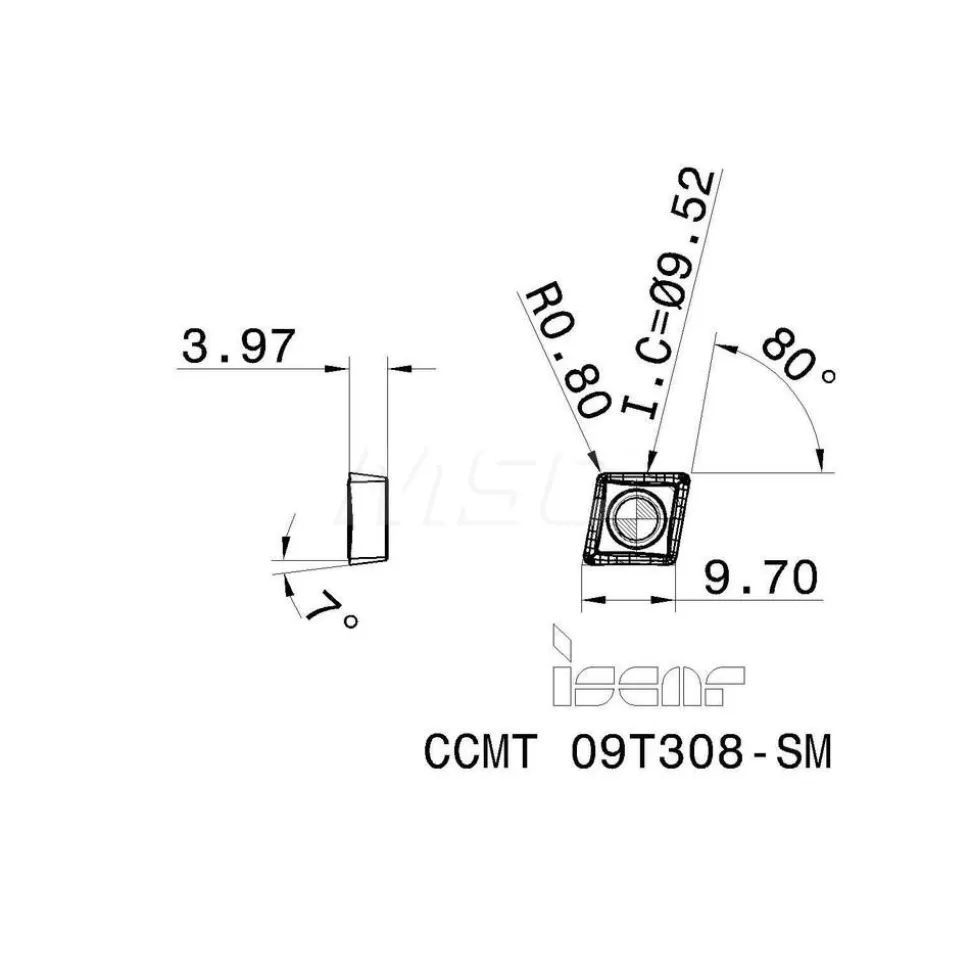

Insert Style: CCMT	ANSI Size Code: 3-2
ISO Size Code: 09T308	Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00	Inscribed Circle (Decimal Inch): 0.3750
Inscribed Circle (Inch): 3/8	Corner Radius (Inch): 1/32
Corner Radius (Decimal Inch): 0.0315	Insert Material: Carbide
Manufacturer Grade: IC806	Coating/Finish: TiAlN
Relief Angle: 7.000	Insert Thickness (Inch): 5/32
Insert Thickness (Decimal Inch): 0.1563	Series: Isoturn
Chip Breaker Operation: Medium Machining; Finishing	Grade Characteristics: Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Positive	Hole Diameter (Decimal Inch): 0.1732
Hole Diameter (mm): 4.40	Maximum Depth of Cut (mm): 3.00
Maximum Depth of Cut (Decimal Inch): 0.1180	ANSI Insert Code: CCMT3-2
ISO Insert Code: CCMT09T308	Insert Holding Method: Screw
Clearance Code: C	Tolerance Code: M
Coating Process: PVD	Rake: Positive
Insert Length (Decimal Inch): 0.3820	Insert Length (mm): 9.70
Primary Workpiece Material: Superalloy	Primary Workpiece Material Code: S
Iso Code: ISO 13399	Standards: ISO 13399
Material Grade: Submicron	Chip Breaker: SM
UNSPSC Code: 23242105	Country of Origin: Israel
Insert Style: CCMT
ANSI Size Code: 3-2
ISO Size Code: 09T308
Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00
Inscribed Circle (Decimal Inch): 0.3750
Inscribed Circle (Inch): 3/8
Corner Radius (Inch): 1/32
Corner Radius (Decimal Inch): 0.0315
Insert Material: Carbide
Manufacturer Grade: IC806
Coating/Finish: TiAlN
Relief Angle: 7.000
Insert Thickness (Inch): 5/32
Insert Thickness (Decimal Inch): 0.1563
Series: Isoturn
Chip Breaker Operation: Medium Machining; Finishing
Grade Characteristics: Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Positive
Hole Diameter (Decimal Inch): 0.1732
Hole Diameter (mm): 4.40
Maximum Depth of Cut (mm): 3.00
Maximum Depth of Cut (Decimal Inch): 0.1180
ANSI Insert Code: CCMT3-2
ISO Insert Code: CCMT09T308
Insert Holding Method: Screw
Clearance Code: C
Tolerance Code: M
Coating Process: PVD
Rake: Positive
Insert Length (Decimal Inch): 0.3820
Insert Length (mm): 9.70
Primary Workpiece Material: Superalloy
Primary Workpiece Material Code: S
Iso Code: ISO 13399
Standards: ISO 13399
Material Grade: Submicron
Chip Breaker: SM
UNSPSC Code: 23242105
Country of Origin: Israel
