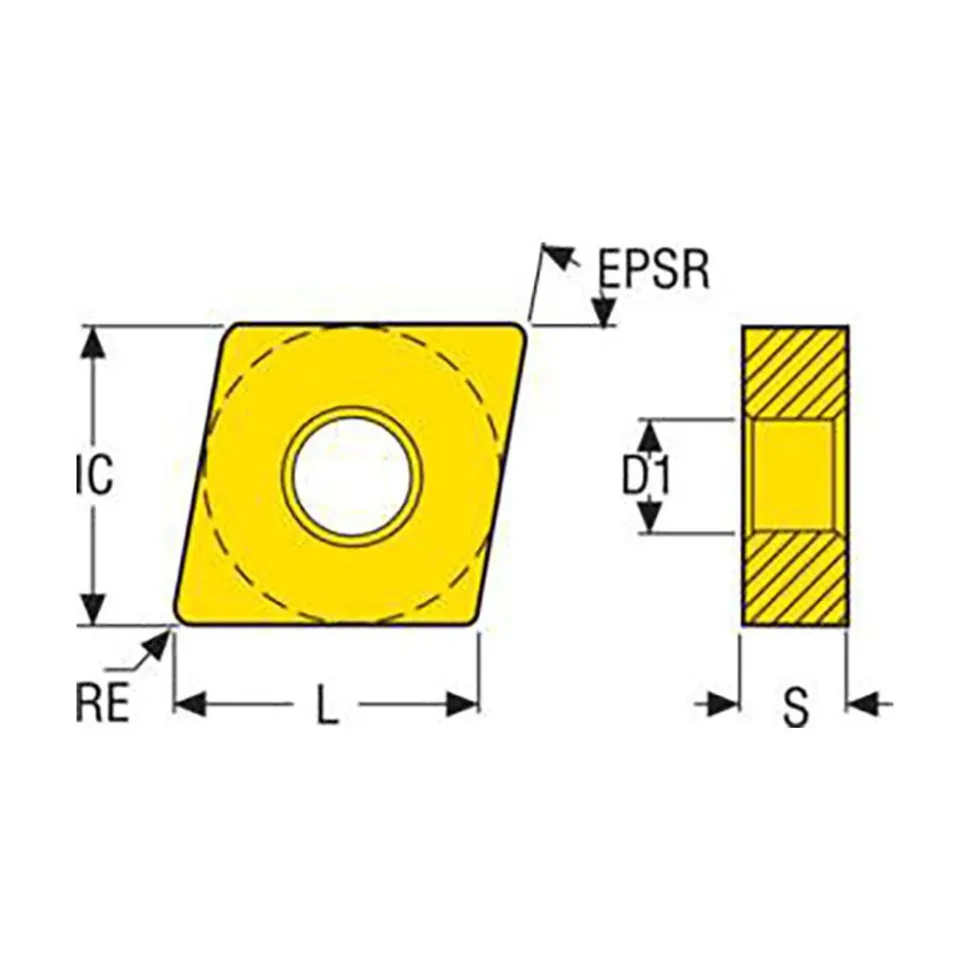

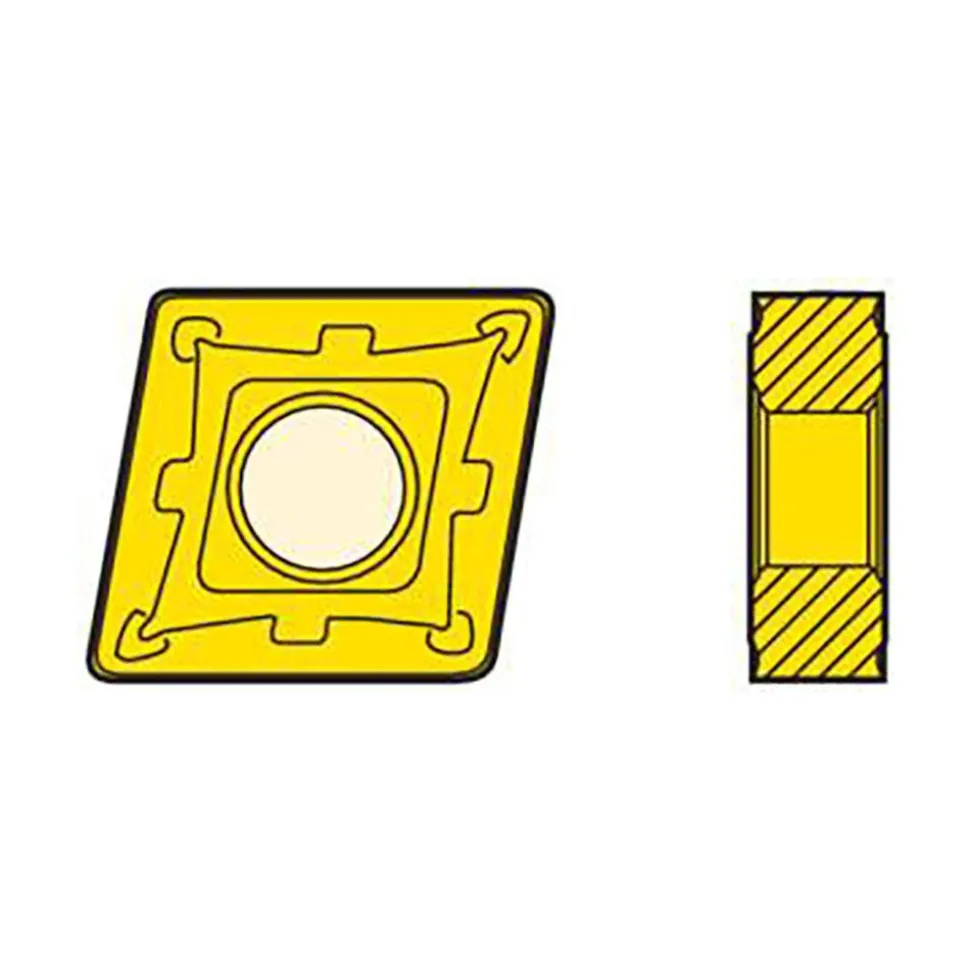

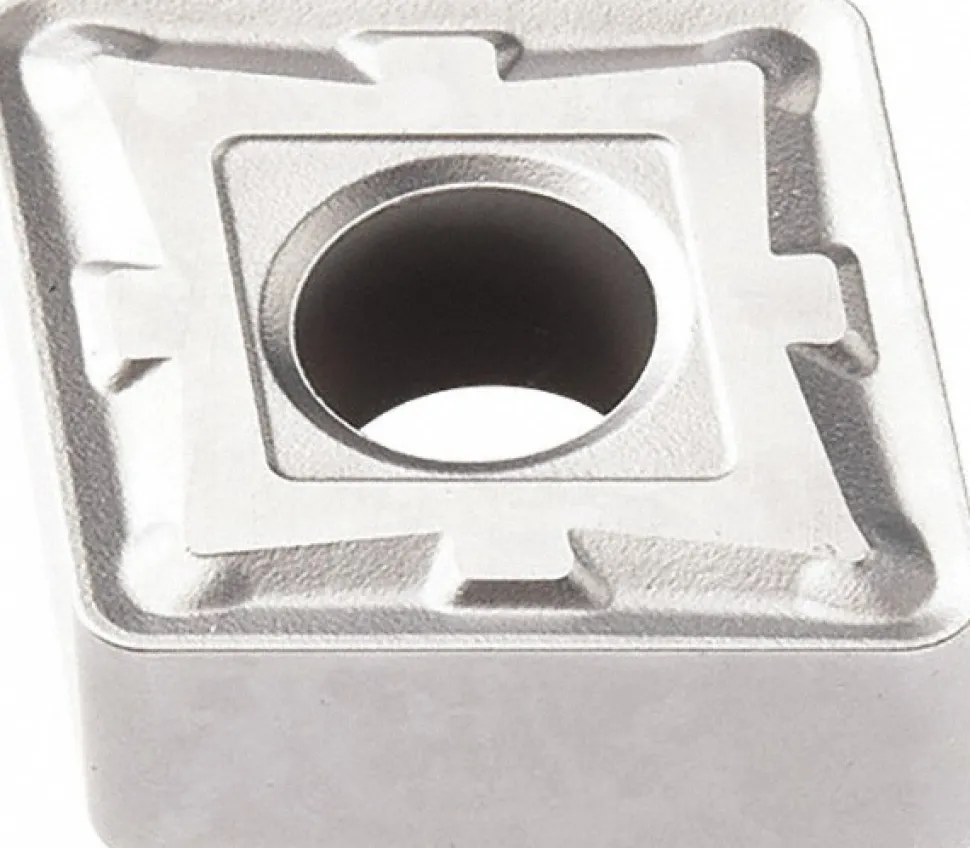

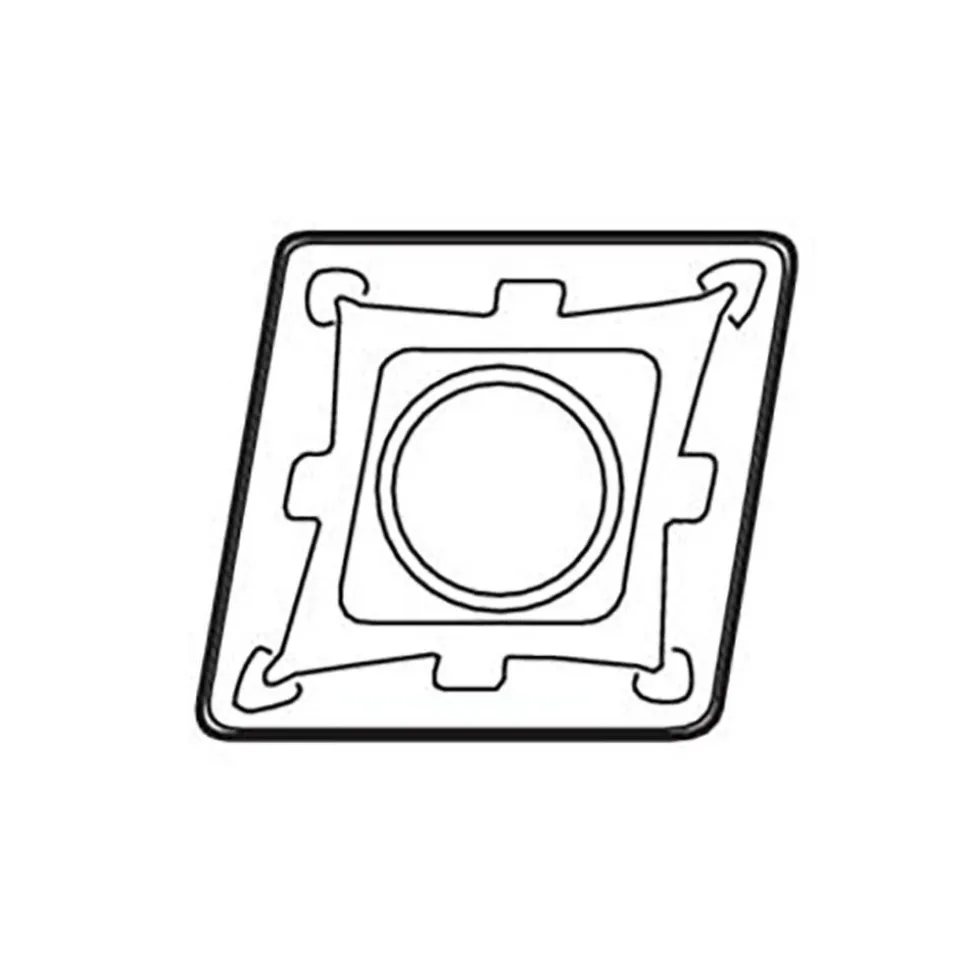

Turning Insert: CNMG432-M3 TP3501, Carbide
18,89 $
Specifications
| Insert Style: CNMG | ANSI Size Code: 432 |
| ISO Size Code: 120408 | Insert Shape: C – Diamond (Rhombic) 80-Deg |
| Included Angle: 80.00 | Inscribed Circle (Decimal Inch): 0.5000 |
| Inscribed Circle (Inch): 1/2 | Corner Radius (Inch): 1/32 |
| Corner Radius (Decimal Inch): 0.0315 | Insert Material: Carbide |
| Manufacturer Grade: TP3501 | Coating/Finish: TiCN; Al2O3; Cr |
| Relief Angle: 0.000 | Wiper Edge: No |
| Insert Thickness (Inch): 3/16 | Insert Thickness (Decimal Inch): 0.1874 |
| Insert Hand: Neutral | Series: CNMG-M3 |
| Chip Breaker Operation: Medium Machining; Finishing | Grade Characteristics: Stainless Steel (M) – Moderate Wear-Resistance and Toughness to High Toughness; Steel (P) – Moderate Wear-Resistance and Toughness |
| Side Clearance: Negative | Number Of Cutting Edges: 4 |
| Hole Diameter (Decimal Inch): 0.2028 | Hole Diameter (mm): 5.20 |
| Maximum Depth of Cut (Decimal Inch): 0.4764 | ANSI Insert Code: CNMG432 |
| ISO Insert Code: CNMG120408 | Insert Holding Method: Pin; Clamp; Lever Lock |
| Width (Inch): 1/2 | Clearance Code: N |
| Tolerance Code: M | Coating Process: CVD |
| Rake: Negative | Insert Length (Decimal Inch): 0.5079 |
| Primary Workpiece Material: Steel | Primary Workpiece Material Code: P; M |
| Secondary Workpiece Material: Stainless Steel | Secondary Workpiece Material Code: M |
| Iso Code: CNMG120408-M3 | Standards: ISO; ANSI |
| Manufacturers Catalog Number: 03093856 | Material Grade: P30; P40; P20 |
| Proprietary Coating Designation: Duratomic | Lead Angle: 80.000 |
| Coating Classification: Duratomic | Chip Breaker: M3 |
| Cutting Edge Style: Honed; Chamfered | Industry Standard Number: CNMG432-M3 |
| Width (Decimal Inch – 4 Decimals): 0.5000 | Multi-Use Tool: Yes |
| Full Radius: No | Multi-Use Application: Facing; Turning; Boring |
| UNSPSC Code: 23242105 | Country of Origin: Sweden |
| Insert Style: CNMG | |
| ANSI Size Code: 432 | |
| ISO Size Code: 120408 | |
| Insert Shape: C – Diamond (Rhombic) 80-Deg | |
| Included Angle: 80.00 | |
| Inscribed Circle (Decimal Inch): 0.5000 | |
| Inscribed Circle (Inch): 1/2 | |
| Corner Radius (Inch): 1/32 | |
| Corner Radius (Decimal Inch): 0.0315 | |
| Insert Material: Carbide | |
| Manufacturer Grade: TP3501 | |
| Coating/Finish: TiCN; Al2O3; Cr | |
| Relief Angle: 0.000 | |
| Wiper Edge: No | |
| Insert Thickness (Inch): 3/16 | |
| Insert Thickness (Decimal Inch): 0.1874 | |
| Insert Hand: Neutral | |
| Series: CNMG-M3 | |
| Chip Breaker Operation: Medium Machining; Finishing | |
| Grade Characteristics: Stainless Steel (M) – Moderate Wear-Resistance and Toughness to High Toughness; Steel (P) – Moderate Wear-Resistance and Toughness | |
| Side Clearance: Negative | |
| Number Of Cutting Edges: 4 | |
| Hole Diameter (Decimal Inch): 0.2028 | |
| Hole Diameter (mm): 5.20 | |
| Maximum Depth of Cut (Decimal Inch): 0.4764 | |
| ANSI Insert Code: CNMG432 | |
| ISO Insert Code: CNMG120408 | |
| Insert Holding Method: Pin; Clamp; Lever Lock | |
| Width (Inch): 1/2 | |
| Clearance Code: N | |
| Tolerance Code: M | |
| Coating Process: CVD | |
| Rake: Negative | |
| Insert Length (Decimal Inch): 0.5079 | |
| Primary Workpiece Material: Steel | |
| Primary Workpiece Material Code: P; M | |
| Secondary Workpiece Material: Stainless Steel | |
| Secondary Workpiece Material Code: M | |
| Iso Code: CNMG120408-M3 | |
| Standards: ISO; ANSI | |
| Manufacturers Catalog Number: 03093856 | |
| Material Grade: P30; P40; P20 | |
| Proprietary Coating Designation: Duratomic | |
| Lead Angle: 80.000 | |
| Coating Classification: Duratomic | |
| Chip Breaker: M3 | |
| Cutting Edge Style: Honed; Chamfered | |
| Industry Standard Number: CNMG432-M3 | |
| Width (Decimal Inch – 4 Decimals): 0.5000 | |
| Multi-Use Tool: Yes | |
| Full Radius: No | |
| Multi-Use Application: Facing; Turning; Boring | |
| UNSPSC Code: 23242105 | |
| Country of Origin: Sweden |
| MSC# | 33719725 |
| Mfr# | 03093856 |
