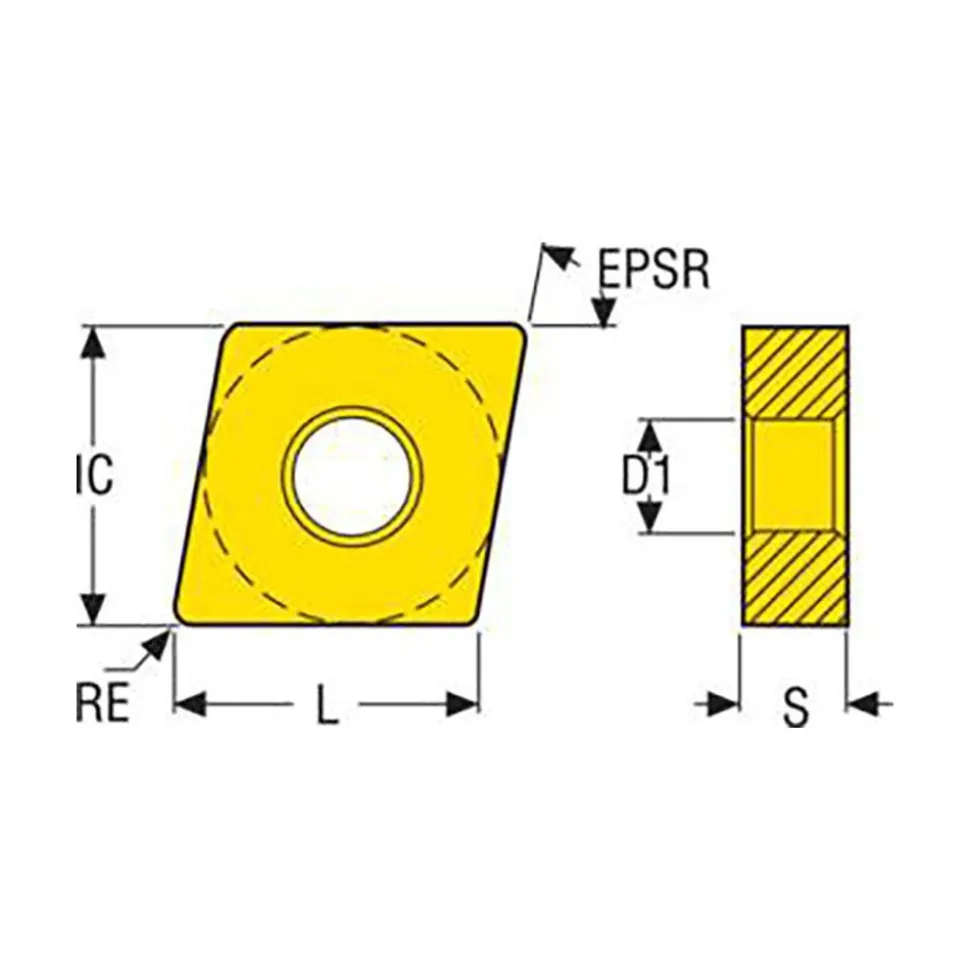

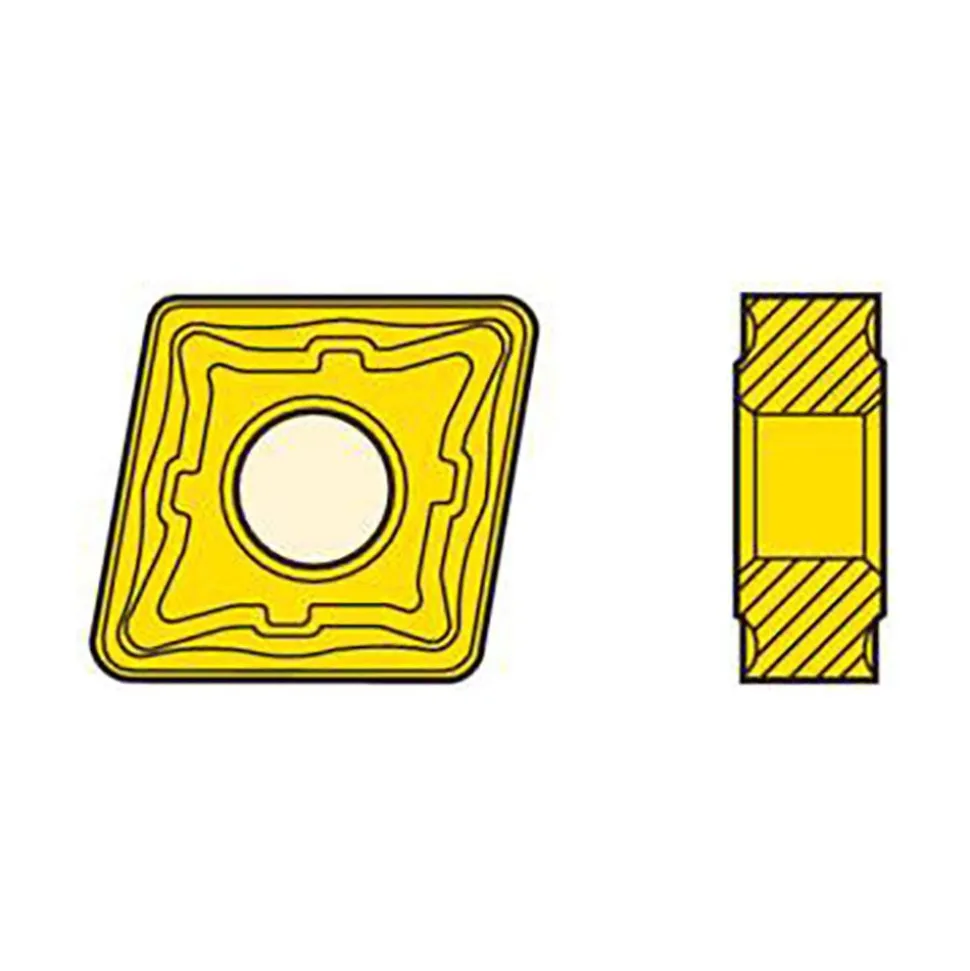

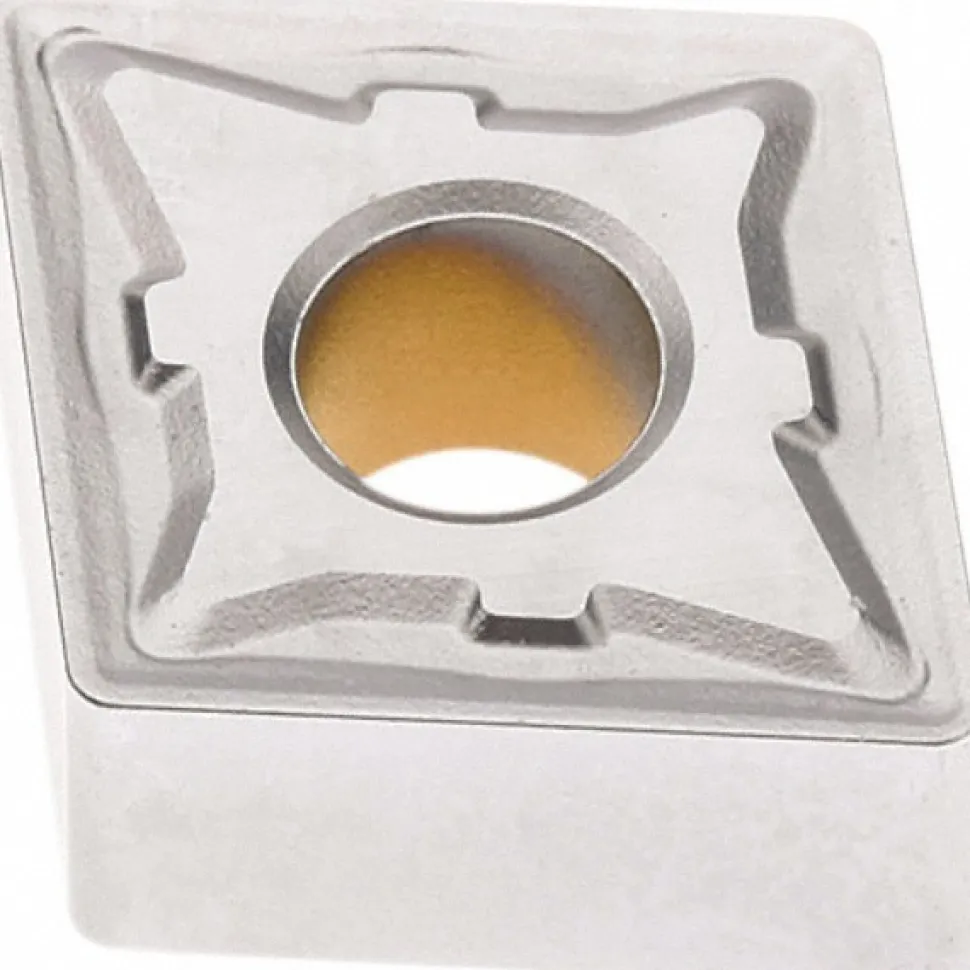

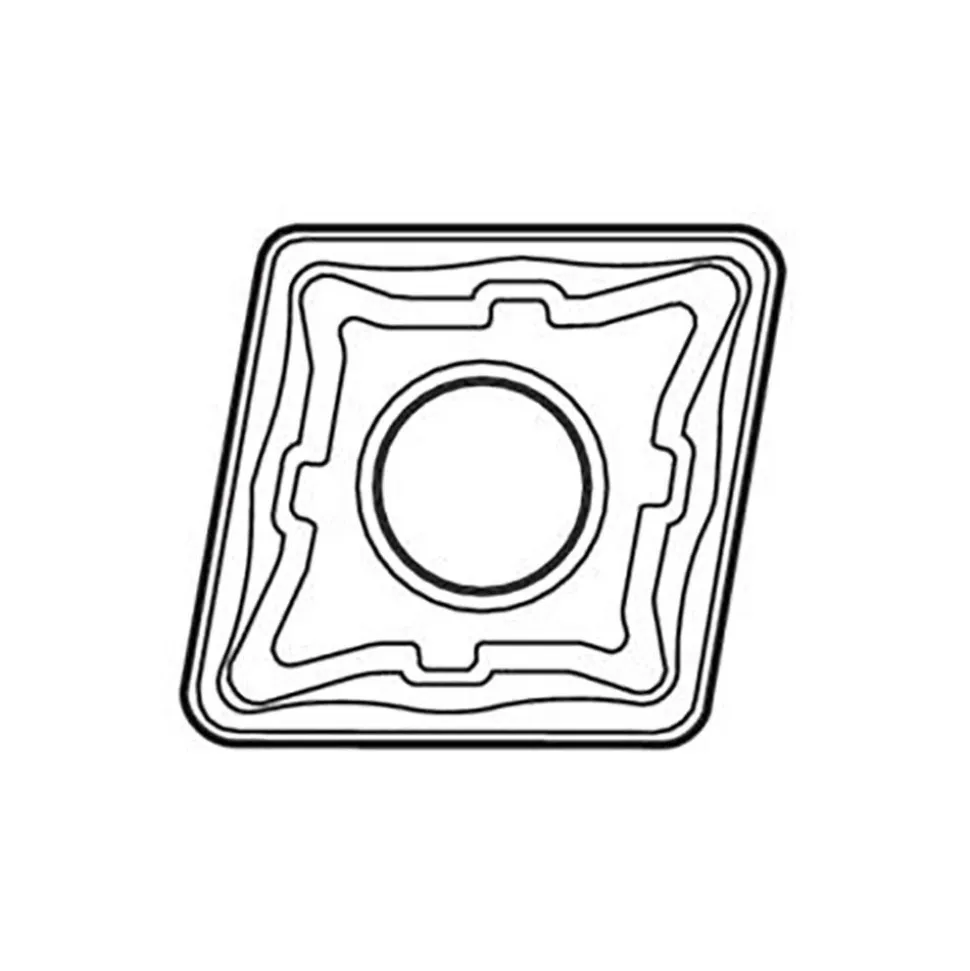

Turning Insert: CNMG432-M5 TP1501, Carbide
Original price was: 24,00 $.17,99 $Current price is: 17,99 $.
Specifications
| Insert Style: CNMG | ANSI Size Code: 432 |
| ISO Size Code: 120408 | Insert Shape: C – Diamond (Rhombic) 80-Deg |
| Included Angle: 80.00 | Inscribed Circle (Decimal Inch): 0.5000 |
| Inscribed Circle (Inch): 1/2 | Corner Radius (Inch): 1/32 |
| Corner Radius (Decimal Inch): 0.0315 | Insert Material: Carbide |
| Manufacturer Grade: TP1501 | Coating/Finish: TiCN; Al2O3; Cr |
| Relief Angle: 0.000 | Wiper Edge: No |
| Insert Thickness (Inch): 3/16 | Insert Thickness (Decimal Inch): 0.1874 |
| Insert Hand: Neutral | Series: CNMG-M5 |
| Chip Breaker Operation: Medium Machining; Roughing | Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance: Negative | Number Of Cutting Edges: 4 |
| Hole Diameter (Decimal Inch): 0.2028 | Hole Diameter (mm): 5.15 |
| Maximum Depth of Cut (Decimal Inch): 0.4764 | ANSI Insert Code: CNMG432 |
| ISO Insert Code: CNMG120408 | Insert Holding Method: Pin; Clamp; Lever Lock |
| Width (Inch): 1/2 | Clearance Code: N |
| Tolerance Code: M | Coating Process: CVD |
| Rake: Negative | Insert Length (Decimal Inch): 0.5079 |
| Primary Workpiece Material: Steel | Primary Workpiece Material Code: P; K |
| Secondary Workpiece Material: Hard Material; Cast Iron | Secondary Workpiece Material Code: H; K |
| Iso Code: CNMG120408-M5 | Standards: ISO; ANSI |
| Manufacturers Catalog Number: 02960484 | Material Grade: P10; P20 |
| Single or Multi Tipped: Multi Tipped | Proprietary Coating Designation: Duratomic |
| Lead Angle: 80.000 | Coating Classification: Duratomic |
| Chip Breaker: M5 | Cutting Edge Style: Honed; Chamfered |
| Industry Standard Number: CNMG432-M5 | Width (Decimal Inch – 4 Decimals): 0.5000 |
| Width (mm – 2 Decimals): 12.90 | Multi-Use Tool: Yes |
| Full Radius: No | Multi-Use Application: Facing; Turning; Boring |
| UNSPSC Code: 23242105 | Country of Origin: Sweden |
| Insert Style: CNMG | |
| ANSI Size Code: 432 | |
| ISO Size Code: 120408 | |
| Insert Shape: C – Diamond (Rhombic) 80-Deg | |
| Included Angle: 80.00 | |
| Inscribed Circle (Decimal Inch): 0.5000 | |
| Inscribed Circle (Inch): 1/2 | |
| Corner Radius (Inch): 1/32 | |
| Corner Radius (Decimal Inch): 0.0315 | |
| Insert Material: Carbide | |
| Manufacturer Grade: TP1501 | |
| Coating/Finish: TiCN; Al2O3; Cr | |
| Relief Angle: 0.000 | |
| Wiper Edge: No | |
| Insert Thickness (Inch): 3/16 | |
| Insert Thickness (Decimal Inch): 0.1874 | |
| Insert Hand: Neutral | |
| Series: CNMG-M5 | |
| Chip Breaker Operation: Medium Machining; Roughing | |
| Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness | |
| Side Clearance: Negative | |
| Number Of Cutting Edges: 4 | |
| Hole Diameter (Decimal Inch): 0.2028 | |
| Hole Diameter (mm): 5.15 | |
| Maximum Depth of Cut (Decimal Inch): 0.4764 | |
| ANSI Insert Code: CNMG432 | |
| ISO Insert Code: CNMG120408 | |
| Insert Holding Method: Pin; Clamp; Lever Lock | |
| Width (Inch): 1/2 | |
| Clearance Code: N | |
| Tolerance Code: M | |
| Coating Process: CVD | |
| Rake: Negative | |
| Insert Length (Decimal Inch): 0.5079 | |
| Primary Workpiece Material: Steel | |
| Primary Workpiece Material Code: P; K | |
| Secondary Workpiece Material: Hard Material; Cast Iron | |
| Secondary Workpiece Material Code: H; K | |
| Iso Code: CNMG120408-M5 | |
| Standards: ISO; ANSI | |
| Manufacturers Catalog Number: 02960484 | |
| Material Grade: P10; P20 | |
| Single or Multi Tipped: Multi Tipped | |
| Proprietary Coating Designation: Duratomic | |
| Lead Angle: 80.000 | |
| Coating Classification: Duratomic | |
| Chip Breaker: M5 | |
| Cutting Edge Style: Honed; Chamfered | |
| Industry Standard Number: CNMG432-M5 | |
| Width (Decimal Inch – 4 Decimals): 0.5000 | |
| Width (mm – 2 Decimals): 12.90 | |
| Multi-Use Tool: Yes | |
| Full Radius: No | |
| Multi-Use Application: Facing; Turning; Boring | |
| UNSPSC Code: 23242105 | |
| Country of Origin: Sweden |
| MSC# | 43020551 |
| Mfr# | 02960484 |
