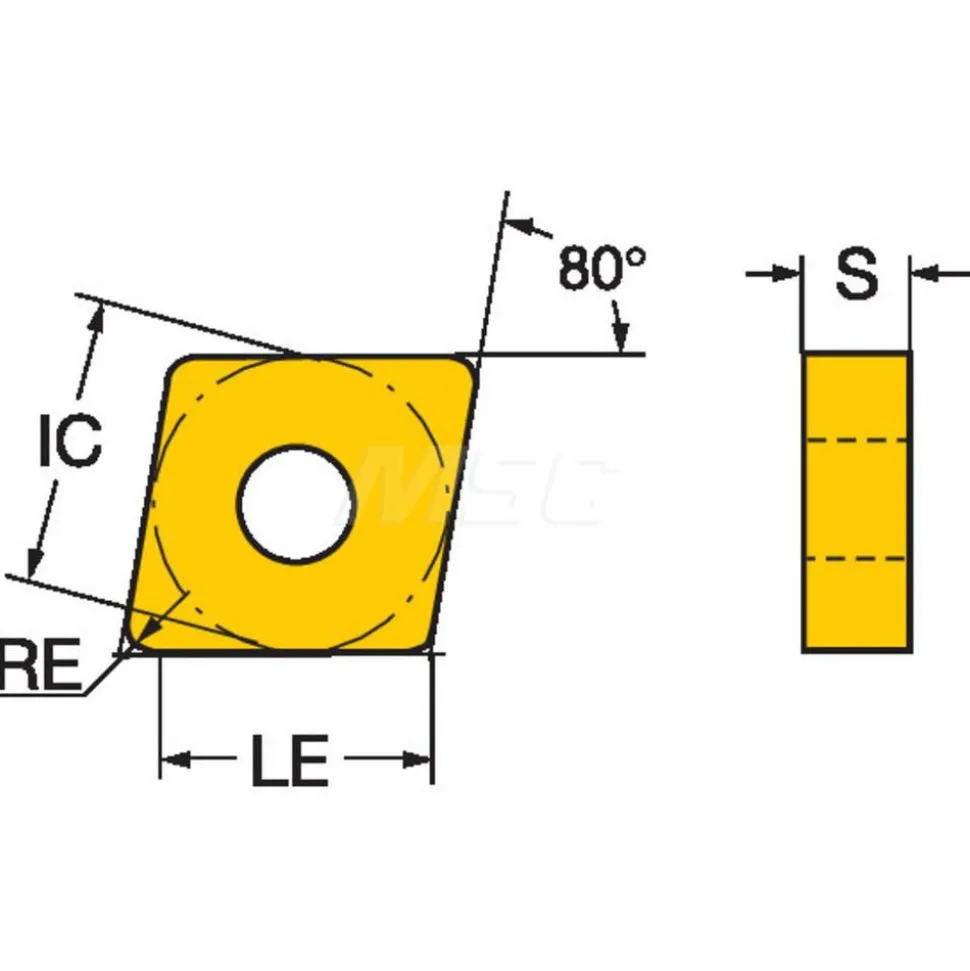

Turning Insert: CNMG432-QM 4425, Carbide
Original price was: 24,00 $.17,89 $Current price is: 17,89 $.
Specifications
| Insert Style: CNMG | ANSI Size Code: 432 |
| ISO Size Code: 120408 | Insert Shape: C – Diamond (Rhombic) 80-Deg |
| Included Angle: 80.00 | Inscribed Circle (Decimal Inch): 0.5000 |
| Inscribed Circle (Inch): 1/2 | Inscribed Circle (mm): 12.70 |
| Corner Radius (mm): 0.79 | Corner Radius (Decimal Inch): 0.0313 |
| Insert Material: Carbide | Manufacturer Grade: 4425 |
| Coating/Finish: TiCN; TiN; Al2O3 | Relief Angle: 0.000 |
| Wiper Edge: No | Insert Thickness (Inch): 3/16 |
| Insert Thickness (Decimal Inch): 0.1875 | Insert Thickness: 4.76 |
| Insert Hand: Neutral | Series: T-Max P |
| Chip Breaker Operation: Medium Machining; Roughing | Grade Characteristics: Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance: Negative | Number Of Cutting Edges: 4 |
| Hole Diameter (Decimal Inch): 0.2030 | Hole Diameter (mm): 5.16 |
| ANSI Insert Code: CNMG432 | ISO Insert Code: CNMG120408 |
| Insert Holding Method: Screw; Clamp | Clearance Code: N |
| Tolerance Code: M | Coating Process: CVD |
| Primary Workpiece Material: Steel | Primary Workpiece Material Code: P |
| Secondary Workpiece Material: Cast Iron | Secondary Workpiece Material Code: K |
| Iso Code: CNMG 12 04 08-QM 4425 | Manufacturers Catalog Number: CNMG 432-QM 4425 |

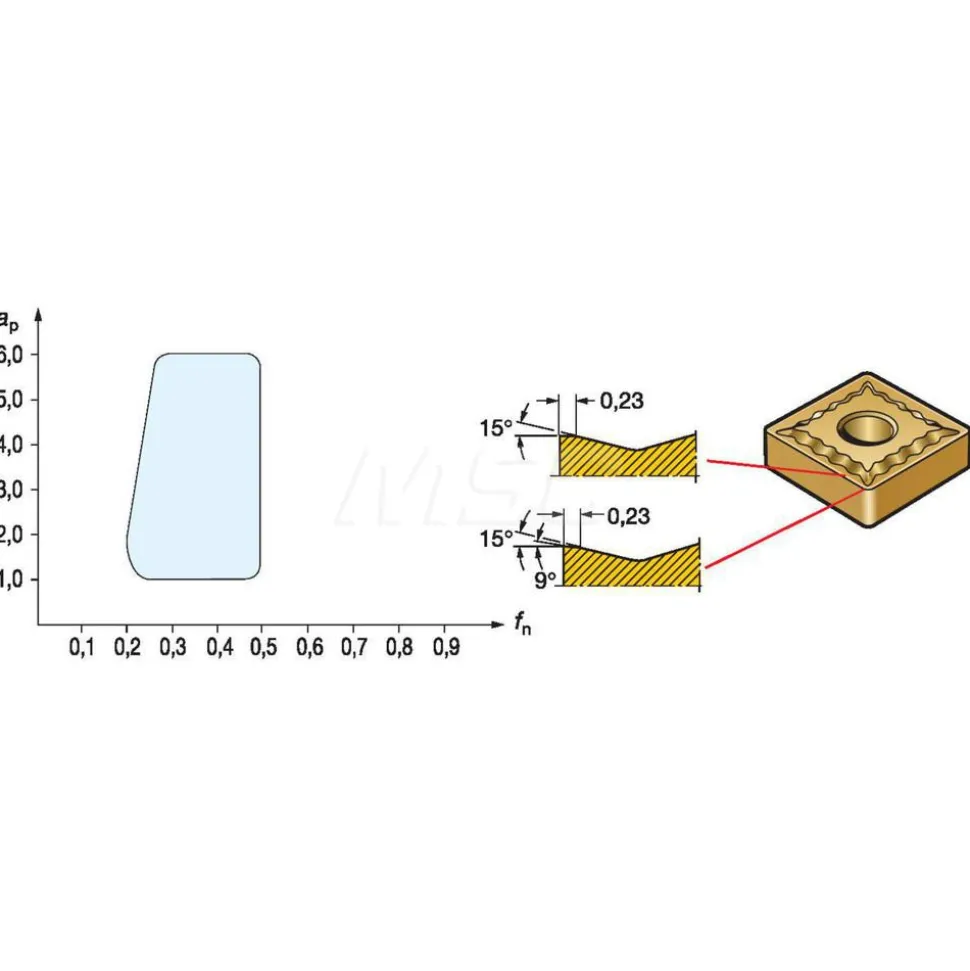

| Chip Breaker: QM | UNSPSC Code: 23242105 |
| Country of Origin: India | |
| Insert Style: CNMG | |
| ANSI Size Code: 432 | |
| ISO Size Code: 120408 | |
| Insert Shape: C – Diamond (Rhombic) 80-Deg | |
| Included Angle: 80.00 | |
| Inscribed Circle (Decimal Inch): 0.5000 | |
| Inscribed Circle (Inch): 1/2 | |
| Inscribed Circle (mm): 12.70 | |
| Corner Radius (mm): 0.79 | |
| Corner Radius (Decimal Inch): 0.0313 | |
| Insert Material: Carbide | |
| Manufacturer Grade: 4425 | |
| Coating/Finish: TiCN; TiN; Al2O3 | |
| Relief Angle: 0.000 | |
| Wiper Edge: No | |
| Insert Thickness (Inch): 3/16 | |
| Insert Thickness (Decimal Inch): 0.1875 | |
| Insert Thickness: 4.76 | |
| Insert Hand: Neutral | |
| Series: T-Max P | |
| Chip Breaker Operation: Medium Machining; Roughing | |
| Grade Characteristics: Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness | |
| Side Clearance: Negative | |
| Number Of Cutting Edges: 4 | |
| Hole Diameter (Decimal Inch): 0.2030 | |
| Hole Diameter (mm): 5.16 | |
| ANSI Insert Code: CNMG432 | |
| ISO Insert Code: CNMG120408 | |
| Insert Holding Method: Screw; Clamp | |
| Clearance Code: N | |
| Tolerance Code: M | |
| Coating Process: CVD | |
| Primary Workpiece Material: Steel | |
| Primary Workpiece Material Code: P | |
| Secondary Workpiece Material: Cast Iron | |
| Secondary Workpiece Material Code: K | |
| Iso Code: CNMG 12 04 08-QM 4425 | |
| Manufacturers Catalog Number: CNMG 432-QM 4425 | |
| Chip Breaker: QM | |
| UNSPSC Code: 23242105 | |
| Country of Origin: India |
| MSC# | 19104355 |
| Mfr# | 7860840 |
