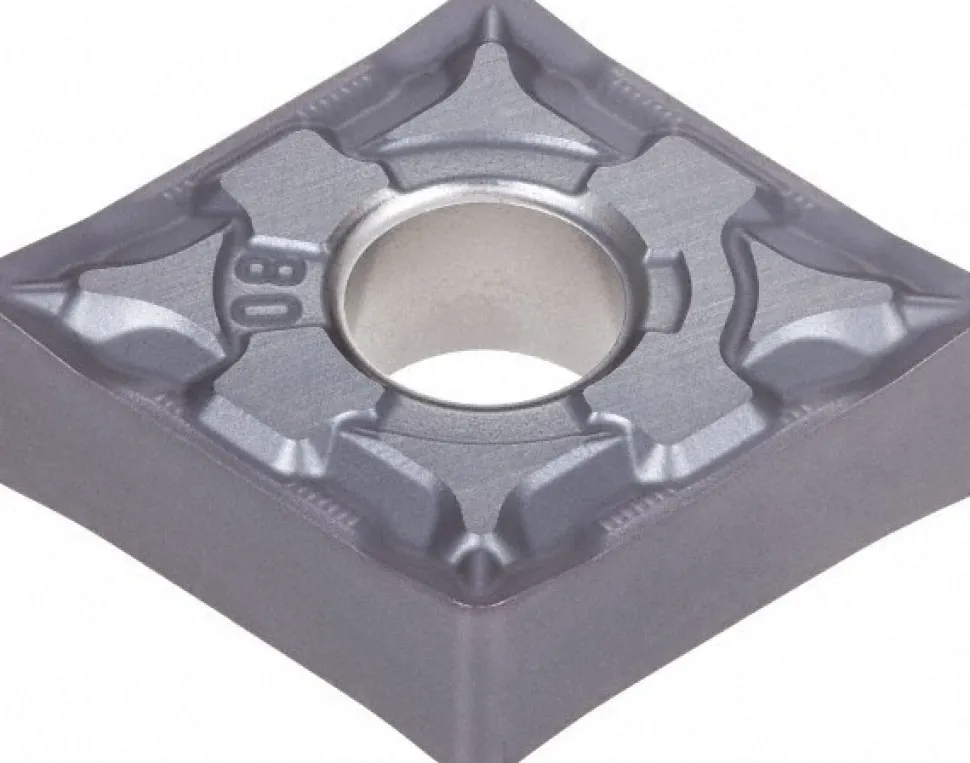

Turning Insert: CNMG432HRF AH8015, Carbide

Turning Insert: CNMG432HRF AH8015, Carbide

Original price was: 20,00 $.Current price is: 14,89 $.

SKU: SKUWKSKC3zF4L Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: Tungaloy Brand: Tungaloy

Description
Reviews (0)

Specifications

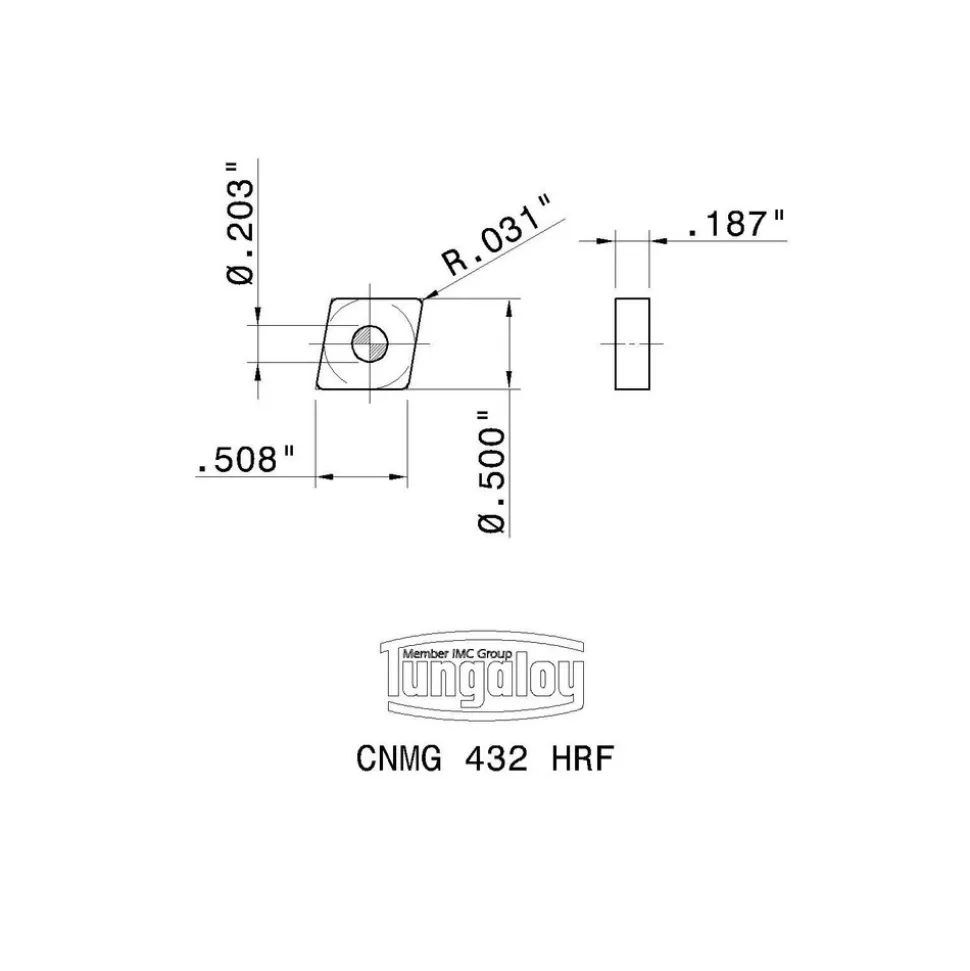

Insert Style: CNMG	ANSI Size Code: 432

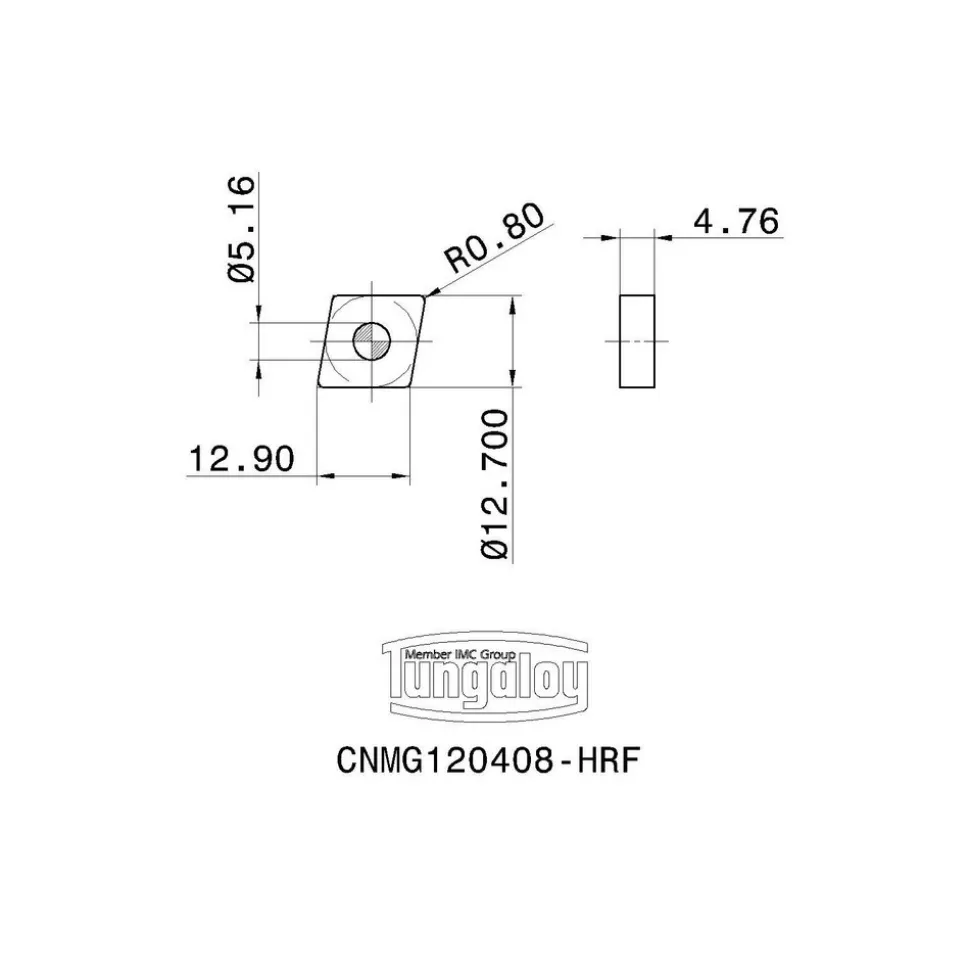

ISO Size Code: 120408	Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00	Inscribed Circle (Decimal Inch): 0.5000
Inscribed Circle (Inch): 1/2	Corner Radius (Inch): 1/32
Corner Radius (mm): 0.80	Corner Radius (Decimal Inch): 0.0315
Insert Material: Carbide	Manufacturer Grade: AH8015
Coating/Finish: TiAlN	Relief Angle: 0.000
Wiper Edge: No	Insert Thickness (Inch): 3/16
Insert Thickness (Decimal Inch): 0.1875	Insert Hand: Neutral
Series: CNMG-HRF	Chip Breaker Operation: Finishing
Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness	Side Clearance: Negative
Number Of Cutting Edges: 4	Hole Diameter (Decimal Inch): 0.2030
Hole Diameter (mm): 5.16	Maximum Depth of Cut (Decimal Inch): 0.0590
ANSI Insert Code: CNMG432	ISO Insert Code: CNMG120408
Insert Holding Method: Pin; Clamp	Width (Inch): 1/2
Clearance Code: N	Tolerance Code: M
Coating Process: PVD	Rake: Negative
Insert Length (Decimal Inch): 0.5080	Primary Workpiece Material: Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
Primary Workpiece Material Code: P; S; K; M	Iso Code: CNMG432HRF
Standards: ISO; ANSI	Manufacturers Catalog Number: 6741634
Material Grade: S20; S10; M20; M10	Coating Classification: PVD
Chip Breaker: HRF	Rake Angle: -20
Cutting Edge Style: Honed	Industry Standard Number: CNMG 432 HRF
Width (Decimal Inch – 4 Decimals): 0.5000	Multi-Use Tool: Yes
Full Radius: No	Multi-Use Application: Facing; Turning; Boring
UNSPSC Code: 23242105	Country of Origin: Japan
Insert Style: CNMG
ANSI Size Code: 432
ISO Size Code: 120408
Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00
Inscribed Circle (Decimal Inch): 0.5000
Inscribed Circle (Inch): 1/2
Corner Radius (Inch): 1/32
Corner Radius (mm): 0.80
Corner Radius (Decimal Inch): 0.0315
Insert Material: Carbide
Manufacturer Grade: AH8015
Coating/Finish: TiAlN
Relief Angle: 0.000
Wiper Edge: No
Insert Thickness (Inch): 3/16
Insert Thickness (Decimal Inch): 0.1875
Insert Hand: Neutral
Series: CNMG-HRF
Chip Breaker Operation: Finishing
Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Negative
Number Of Cutting Edges: 4
Hole Diameter (Decimal Inch): 0.2030
Hole Diameter (mm): 5.16
Maximum Depth of Cut (Decimal Inch): 0.0590
ANSI Insert Code: CNMG432
ISO Insert Code: CNMG120408
Insert Holding Method: Pin; Clamp
Width (Inch): 1/2
Clearance Code: N
Tolerance Code: M
Coating Process: PVD
Rake: Negative
Insert Length (Decimal Inch): 0.5080
Primary Workpiece Material: Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
Primary Workpiece Material Code: P; S; K; M
Iso Code: CNMG432HRF
Standards: ISO; ANSI
Manufacturers Catalog Number: 6741634
Material Grade: S20; S10; M20; M10
Coating Classification: PVD
Chip Breaker: HRF
Rake Angle: -20
Cutting Edge Style: Honed
Industry Standard Number: CNMG 432 HRF
Width (Decimal Inch – 4 Decimals): 0.5000
Multi-Use Tool: Yes
Full Radius: No
Multi-Use Application: Facing; Turning; Boring
UNSPSC Code: 23242105
Country of Origin: Japan
