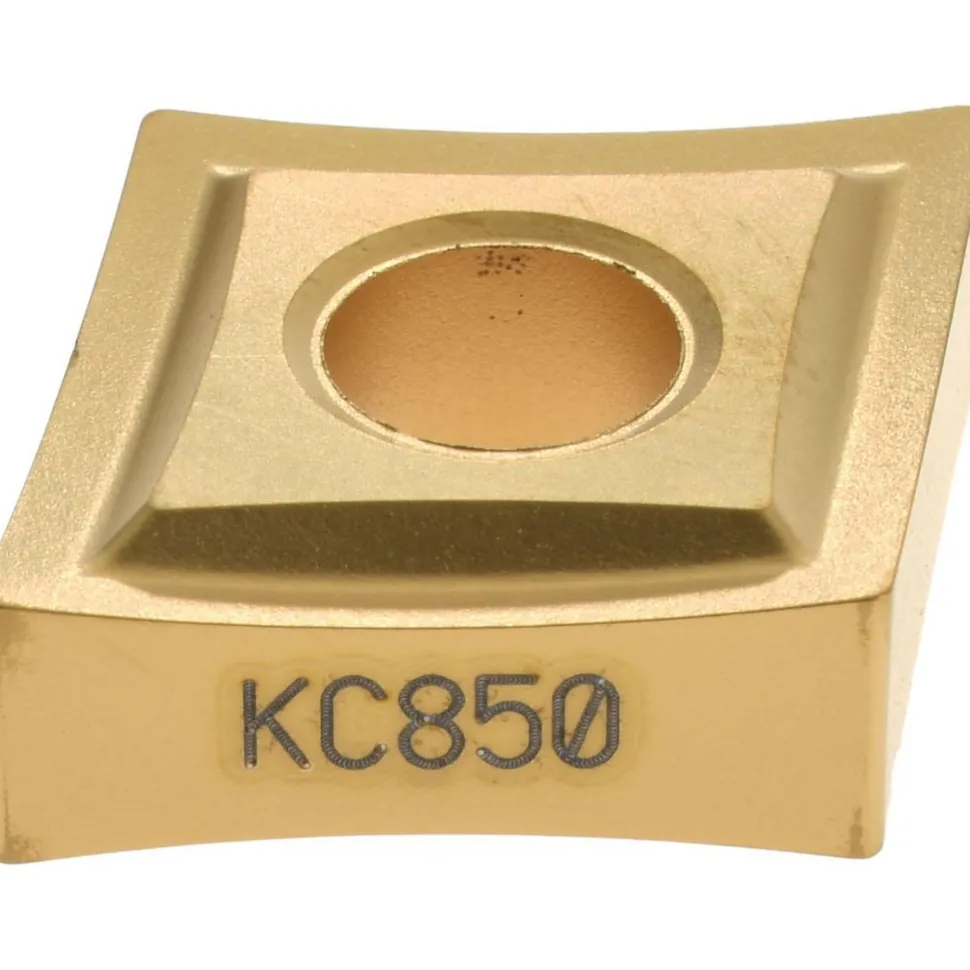

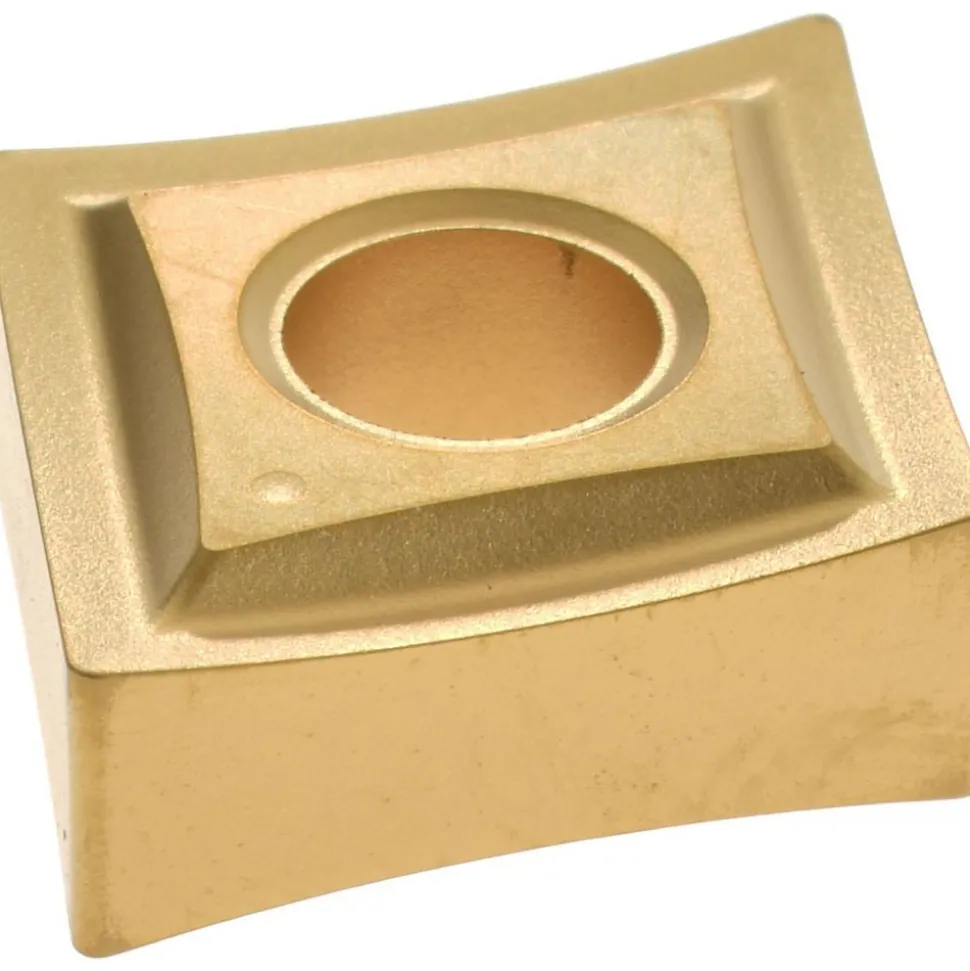

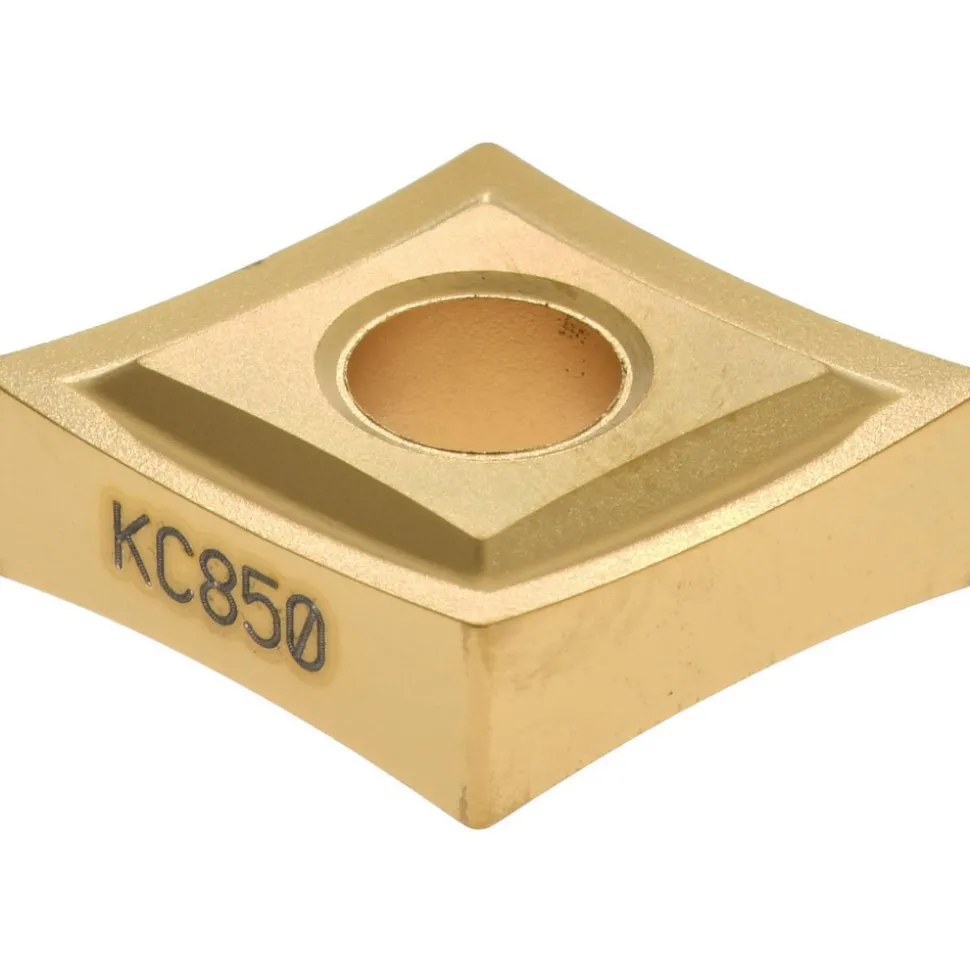

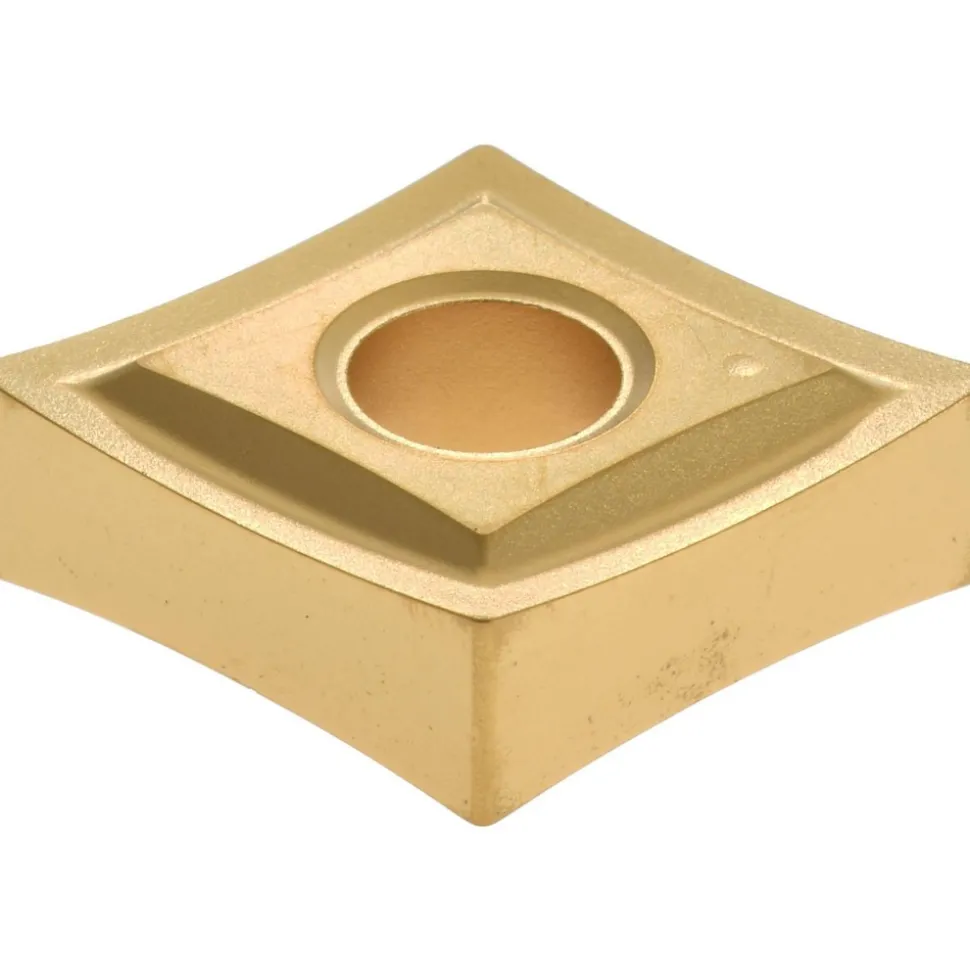

Turning Insert: CNMP431 KC850, Carbide

20,89 $

SKU: SKUDgLXhQQQu3 Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: Kennametal Brand: Kennametal

Description
Reviews (0)

Specifications

Insert Style: CNMP	ANSI Size Code: 431
ISO Size Code: 120404	Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00	Inscribed Circle (Decimal Inch): 0.5000
Inscribed Circle (Inch): 1/2	Corner Radius (Inch): 1/64
Corner Radius (Decimal Inch): 0.0156	Insert Material: Carbide
Manufacturer Grade: KC850	Coating/Finish: TiCN; TiN; TiC
Relief Angle: 0.000	Wiper Edge: No
Insert Thickness (Inch): 3/16	Insert Thickness (Decimal Inch): 0.1875
Insert Hand: Neutral	Series: KENLOC
Chip Breaker Operation: Medium Machining	Grade Characteristics: Cast Iron (K) – Moderate Wear-Resistance and Toughness to High Toughness; Steel (P) – Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) – Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) – Moderate Wear-Resistance and Toughness
Side Clearance: Negative	Number Of Cutting Edges: 4
Hole Diameter (Decimal Inch): 0.2031	Hole Diameter (mm): 5.16
Maximum Depth of Cut (mm): 1.25	Maximum Depth of Cut (Decimal Inch): 0.0492
ANSI Insert Code: CNMP431	ISO Insert Code: CNMP120404
Insert Holding Method: Pin; Clamp	Width (Inch): 1/2
Clearance Code: N	Tolerance Code: M
Coating Process: CVD	Rake: Negative
Insert Length (Decimal Inch): 0.5077	Insert Length (mm): 12.90
Primary Workpiece Material: Stainless Steel; Steel	Primary Workpiece Material Code: P; S; K; M
Secondary Workpiece Material Code: K; M	Standards: ISO; ANSI
Manufacturers Catalog Number: 1161282	Material Grade: C5; C6
Proprietary Coating Designation: Multilayer Coating	Coating Classification: CVD
Chip Breaker: Common	Cutting Edge Style: Honed
Industry Standard Number: CNMP431	Width (Decimal Inch – 4 Decimals): 0.5000
Multi-Use Tool: Yes	Full Radius: No
Multi-Use Application: Facing; Turning; Boring	UNSPSC Code: 23242105
Country of Origin: UNITED STATES
Insert Style: CNMP
ANSI Size Code: 431
ISO Size Code: 120404
Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00
Inscribed Circle (Decimal Inch): 0.5000
Inscribed Circle (Inch): 1/2
Corner Radius (Inch): 1/64
Corner Radius (Decimal Inch): 0.0156
Insert Material: Carbide
Manufacturer Grade: KC850
Coating/Finish: TiCN; TiN; TiC
Relief Angle: 0.000
Wiper Edge: No
Insert Thickness (Inch): 3/16
Insert Thickness (Decimal Inch): 0.1875
Insert Hand: Neutral
Series: KENLOC
Chip Breaker Operation: Medium Machining
Grade Characteristics: Cast Iron (K) – Moderate Wear-Resistance and Toughness to High Toughness; Steel (P) – Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) – Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) – Moderate Wear-Resistance and Toughness
Side Clearance: Negative
Number Of Cutting Edges: 4
Hole Diameter (Decimal Inch): 0.2031
Hole Diameter (mm): 5.16
Maximum Depth of Cut (mm): 1.25
Maximum Depth of Cut (Decimal Inch): 0.0492
ANSI Insert Code: CNMP431
ISO Insert Code: CNMP120404
Insert Holding Method: Pin; Clamp
Width (Inch): 1/2
Clearance Code: N
Tolerance Code: M
Coating Process: CVD
Rake: Negative
Insert Length (Decimal Inch): 0.5077
Insert Length (mm): 12.90
Primary Workpiece Material: Stainless Steel; Steel
Primary Workpiece Material Code: P; S; K; M
Secondary Workpiece Material Code: K; M
Standards: ISO; ANSI
Manufacturers Catalog Number: 1161282
Material Grade: C5; C6
Proprietary Coating Designation: Multilayer Coating
Coating Classification: CVD
Chip Breaker: Common
Cutting Edge Style: Honed
Industry Standard Number: CNMP431
Width (Decimal Inch – 4 Decimals): 0.5000
Multi-Use Tool: Yes
Full Radius: No
Multi-Use Application: Facing; Turning; Boring
UNSPSC Code: 23242105
Country of Origin: UNITED STATES
