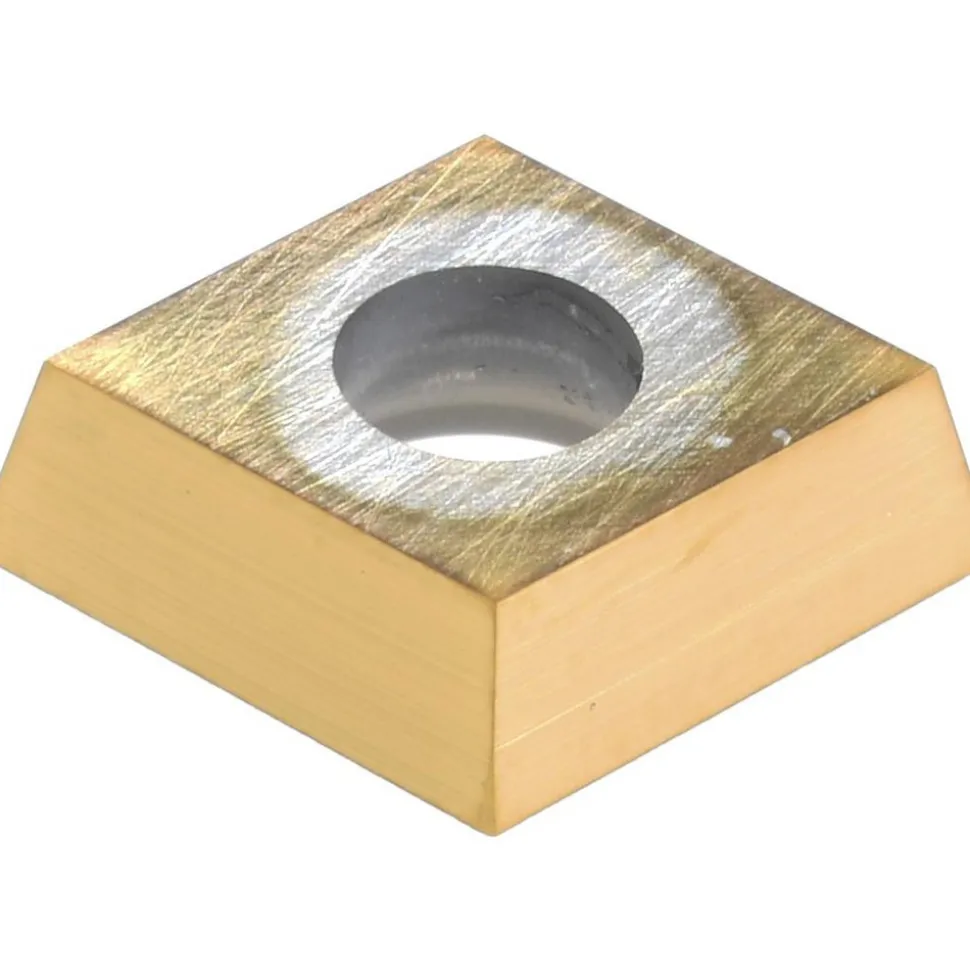

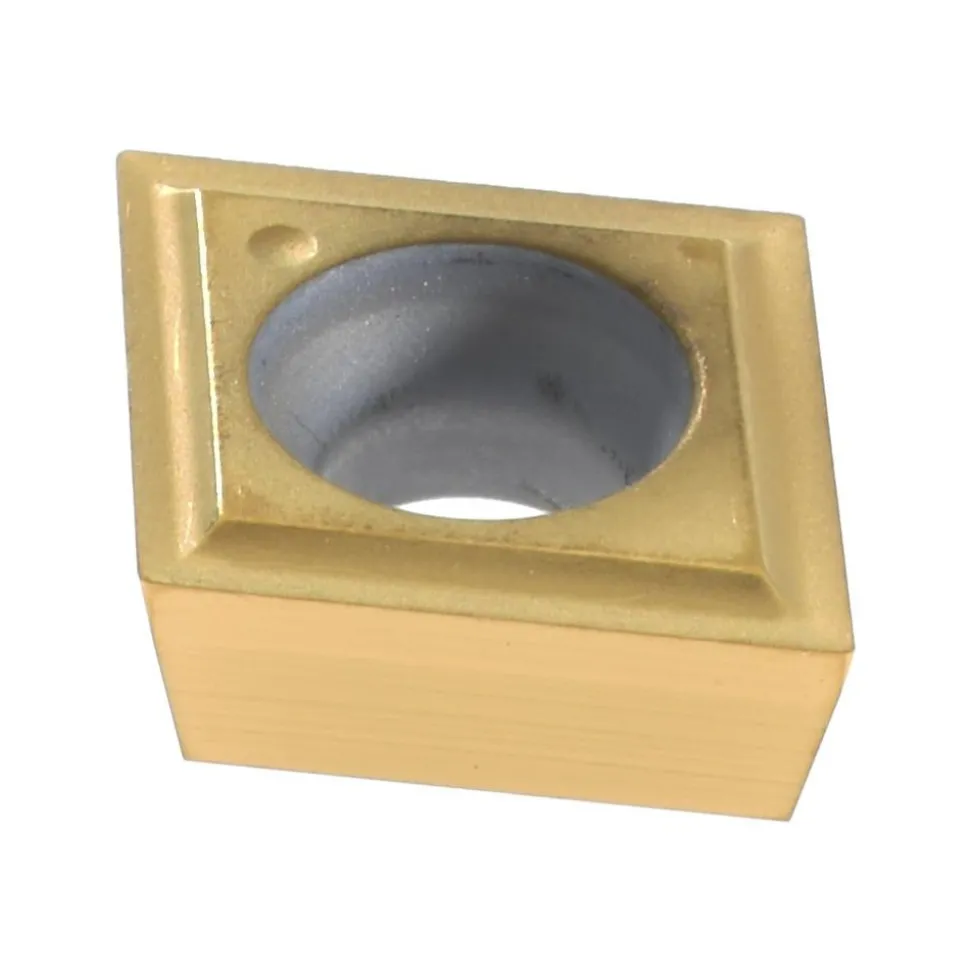

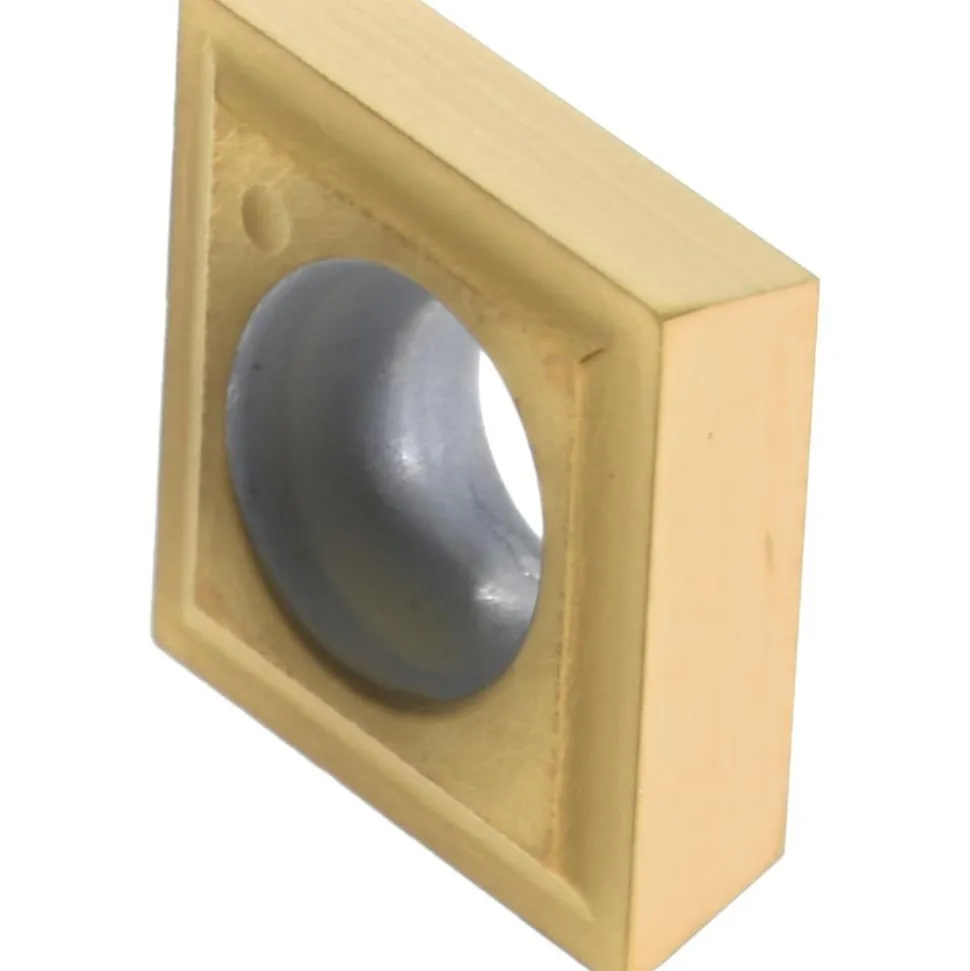

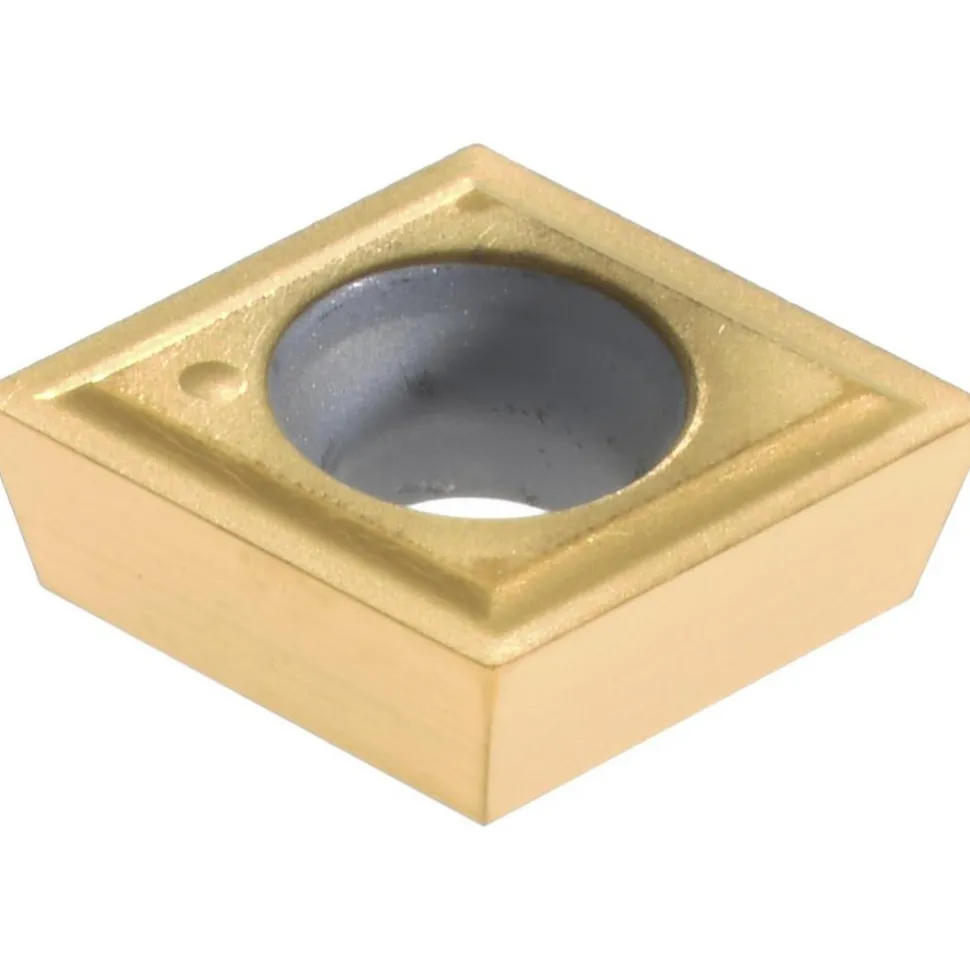

Turning Insert: CPGM21.50 KC730, Carbide

Turning Insert: CPGM21.50 KC730, Carbide

24,99 $

SKU: SKUjCUTaKa0tw Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: Kennametal Brand: Kennametal

Description
Reviews (0)

Specifications

Insert Style: CPGM	ANSI Size Code: 21.50.2
ISO Size Code: 060201	Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00	Inscribed Circle (Decimal Inch): 0.2500
Inscribed Circle (Inch): 1/4	Corner Radius (Decimal Inch): 0.0039
Insert Material: Carbide	Manufacturer Grade: KC730
Coating/Finish: TiN	Relief Angle: 11.000
Wiper Edge: No	Insert Thickness (Inch): 3/32
Insert Thickness (Decimal Inch): 0.0938	Insert Hand: Neutral
Series: Screw-On	Chip Breaker Operation: Medium Machining
Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness	Side Clearance: Positive
Number Of Cutting Edges: 2	Hole Diameter (Decimal Inch): 0.1102
Hole Diameter (mm): 2.80	Maximum Depth of Cut (mm): 1.25
Maximum Depth of Cut (Decimal Inch): 0.0492	ANSI Insert Code: CPGM21.50.2
ISO Insert Code: CPGM060201	Insert Holding Method: Screw
Width (Inch): 1/4	Clearance Code: P
Tolerance Code: G	Coating Process: PVD
Rake: Positive	Insert Length (Decimal Inch): 0.2539
Insert Length (mm): 6.45	Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel
Primary Workpiece Material Code: P; K; M	Secondary Workpiece Material Code: S; M
Standards: ISO; ANSI	Manufacturers Catalog Number: 1162896
Material Grade: C3; C4; C2	Proprietary Coating Designation: TiN
Coating Classification: PVD	Chip Breaker: Common
Rake Angle: 5	Cutting Edge Style: Honed
Industry Standard Number: CPGM21502	Width (Decimal Inch – 4 Decimals): 0.2500
Multi-Use Tool: Yes	Full Radius: No
Multi-Use Application: Facing; Turning; Boring	UNSPSC Code: 23242105
Country of Origin: UNITED STATES
Insert Style: CPGM
ANSI Size Code: 21.50.2
ISO Size Code: 060201
Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00
Inscribed Circle (Decimal Inch): 0.2500
Inscribed Circle (Inch): 1/4
Corner Radius (Decimal Inch): 0.0039
Insert Material: Carbide
Manufacturer Grade: KC730
Coating/Finish: TiN
Relief Angle: 11.000
Wiper Edge: No
Insert Thickness (Inch): 3/32
Insert Thickness (Decimal Inch): 0.0938
Insert Hand: Neutral
Series: Screw-On
Chip Breaker Operation: Medium Machining
Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Positive
Number Of Cutting Edges: 2
Hole Diameter (Decimal Inch): 0.1102
Hole Diameter (mm): 2.80
Maximum Depth of Cut (mm): 1.25
Maximum Depth of Cut (Decimal Inch): 0.0492
ANSI Insert Code: CPGM21.50.2
ISO Insert Code: CPGM060201
Insert Holding Method: Screw
Width (Inch): 1/4
Clearance Code: P
Tolerance Code: G
Coating Process: PVD
Rake: Positive
Insert Length (Decimal Inch): 0.2539
Insert Length (mm): 6.45
Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel
Primary Workpiece Material Code: P; K; M
Secondary Workpiece Material Code: S; M
Standards: ISO; ANSI
Manufacturers Catalog Number: 1162896
Material Grade: C3; C4; C2
Proprietary Coating Designation: TiN
Coating Classification: PVD
Chip Breaker: Common
Rake Angle: 5
Cutting Edge Style: Honed
Industry Standard Number: CPGM21502
Width (Decimal Inch – 4 Decimals): 0.2500
Multi-Use Tool: Yes
Full Radius: No
Multi-Use Application: Facing; Turning; Boring
UNSPSC Code: 23242105
Country of Origin: UNITED STATES
