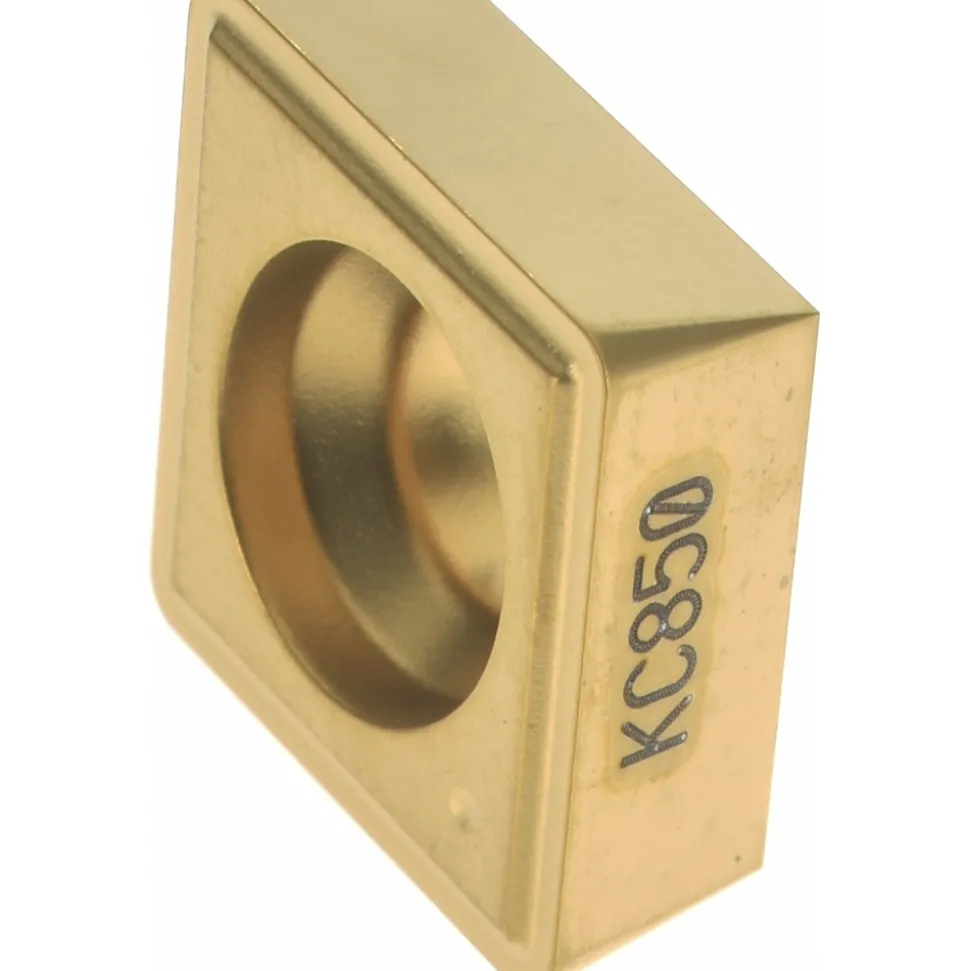

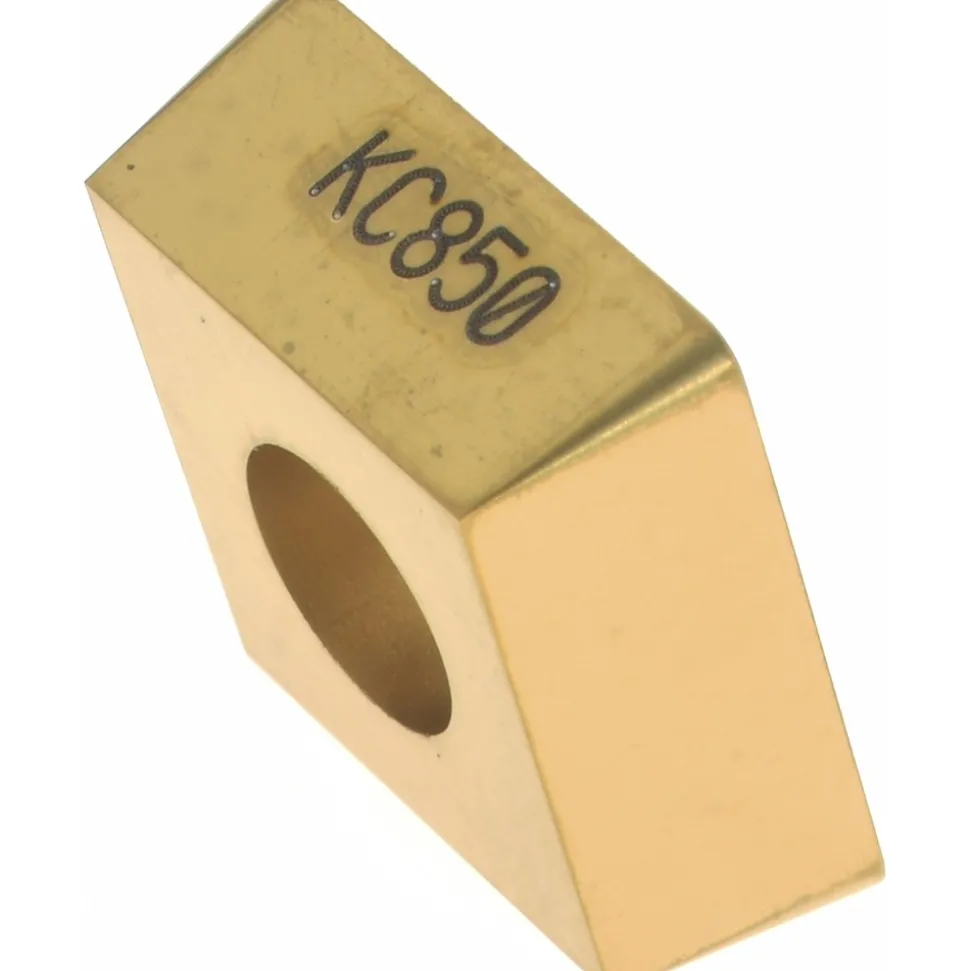

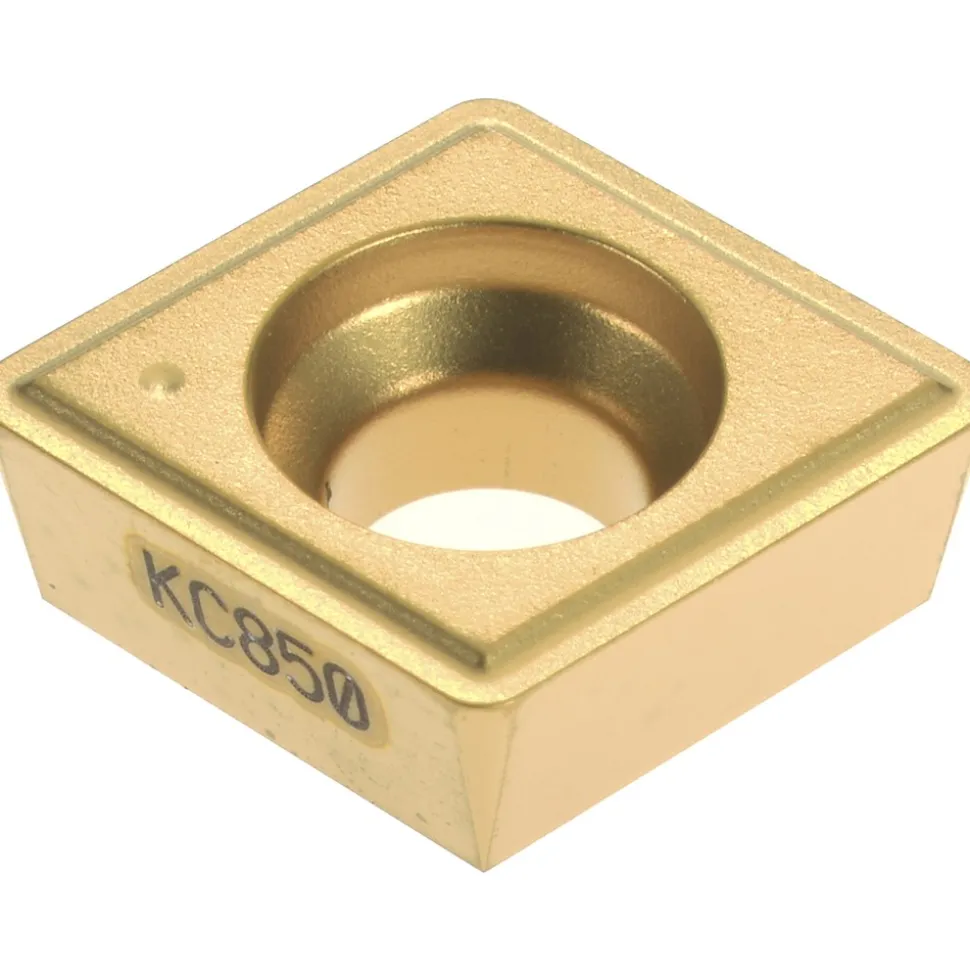

Turning Insert: CPGM32.52 KC850, Carbide

Turning Insert: CPGM32.52 KC850, Carbide

26,99 $

SKU: SKUzcGKegciYj Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: Kennametal Brand: Kennametal

Description
Reviews (0)

Specifications

Insert Style: CPGM	ANSI Size Code: 32.52
ISO Size Code: 09T308	Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00	Inscribed Circle (Decimal Inch): 0.3750
Inscribed Circle (Inch): 3/8	Corner Radius (Inch): 1/32
Corner Radius (Decimal Inch): 0.0313	Insert Material: Carbide
Manufacturer Grade: KC850	Coating/Finish: TiCN; TiN; TiC
Relief Angle: 11.000	Wiper Edge: No
Insert Thickness (Inch): 5/32	Insert Thickness (Decimal Inch): 0.1563
Insert Hand: Neutral	Series: Screw-On
Chip Breaker Operation: Medium Machining	Grade Characteristics: Cast Iron (K) – Moderate Wear-Resistance and Toughness to High Toughness; Steel (P) – Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) – Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) – Moderate Wear-Resistance and Toughness
Side Clearance: Positive	Number Of Cutting Edges: 2
Hole Diameter (Decimal Inch): 0.1732	Hole Diameter (mm): 4.40
Maximum Depth of Cut (mm): 1.25	Maximum Depth of Cut (Decimal Inch): 0.0492
ANSI Insert Code: CPGM32.52	ISO Insert Code: CPGM09T308
Insert Holding Method: Screw	Width (Inch): 3/8
Clearance Code: P	Tolerance Code: G
Coating Process: CVD	Rake: Positive
Insert Length (Decimal Inch): 0.3808	Insert Length (mm): 9.67
Primary Workpiece Material: Stainless Steel; Steel	Primary Workpiece Material Code: P; S; K; M
Secondary Workpiece Material Code: K; M	Standards: ISO; ANSI
Manufacturers Catalog Number: 1163100	Material Grade: C5; C6
Proprietary Coating Designation: Multilayer Coating	Coating Classification: CVD
Chip Breaker: Common	Rake Angle: 5
Cutting Edge Style: Honed	Industry Standard Number: CPGM3252
Width (Decimal Inch – 4 Decimals): 0.3750	Multi-Use Tool: Yes
Full Radius: No	Multi-Use Application: Facing; Turning; Boring
UNSPSC Code: 23242105	Country of Origin: UNITED STATES
Insert Style: CPGM
ANSI Size Code: 32.52
ISO Size Code: 09T308
Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00
Inscribed Circle (Decimal Inch): 0.3750
Inscribed Circle (Inch): 3/8
Corner Radius (Inch): 1/32
Corner Radius (Decimal Inch): 0.0313
Insert Material: Carbide
Manufacturer Grade: KC850
Coating/Finish: TiCN; TiN; TiC
Relief Angle: 11.000
Wiper Edge: No
Insert Thickness (Inch): 5/32
Insert Thickness (Decimal Inch): 0.1563
Insert Hand: Neutral
Series: Screw-On
Chip Breaker Operation: Medium Machining
Grade Characteristics: Cast Iron (K) – Moderate Wear-Resistance and Toughness to High Toughness; Steel (P) – Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) – Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) – Moderate Wear-Resistance and Toughness
Side Clearance: Positive
Number Of Cutting Edges: 2
Hole Diameter (Decimal Inch): 0.1732
Hole Diameter (mm): 4.40
Maximum Depth of Cut (mm): 1.25
Maximum Depth of Cut (Decimal Inch): 0.0492
ANSI Insert Code: CPGM32.52
ISO Insert Code: CPGM09T308
Insert Holding Method: Screw
Width (Inch): 3/8
Clearance Code: P
Tolerance Code: G
Coating Process: CVD
Rake: Positive
Insert Length (Decimal Inch): 0.3808
Insert Length (mm): 9.67
Primary Workpiece Material: Stainless Steel; Steel
Primary Workpiece Material Code: P; S; K; M
Secondary Workpiece Material Code: K; M
Standards: ISO; ANSI
Manufacturers Catalog Number: 1163100
Material Grade: C5; C6
Proprietary Coating Designation: Multilayer Coating
Coating Classification: CVD
Chip Breaker: Common
Rake Angle: 5
Cutting Edge Style: Honed
Industry Standard Number: CPGM3252
Width (Decimal Inch – 4 Decimals): 0.3750
Multi-Use Tool: Yes
Full Radius: No
Multi-Use Application: Facing; Turning; Boring
UNSPSC Code: 23242105
Country of Origin: UNITED STATES
