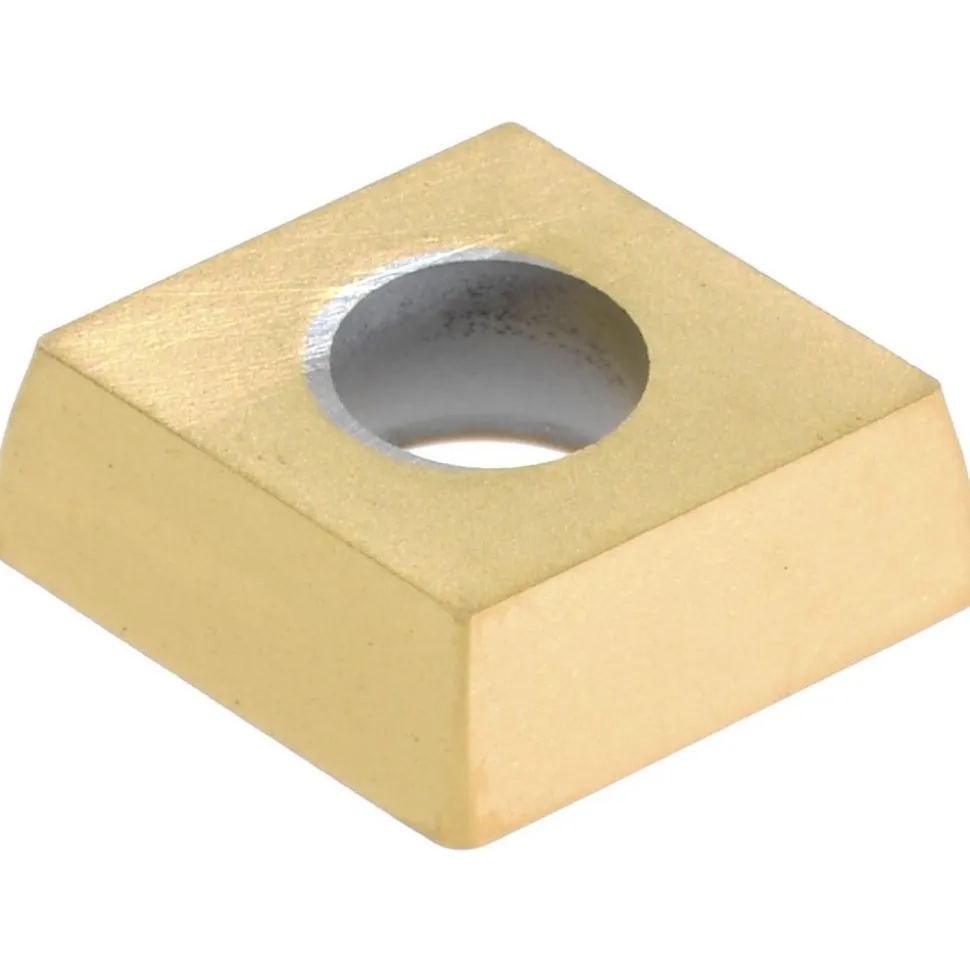

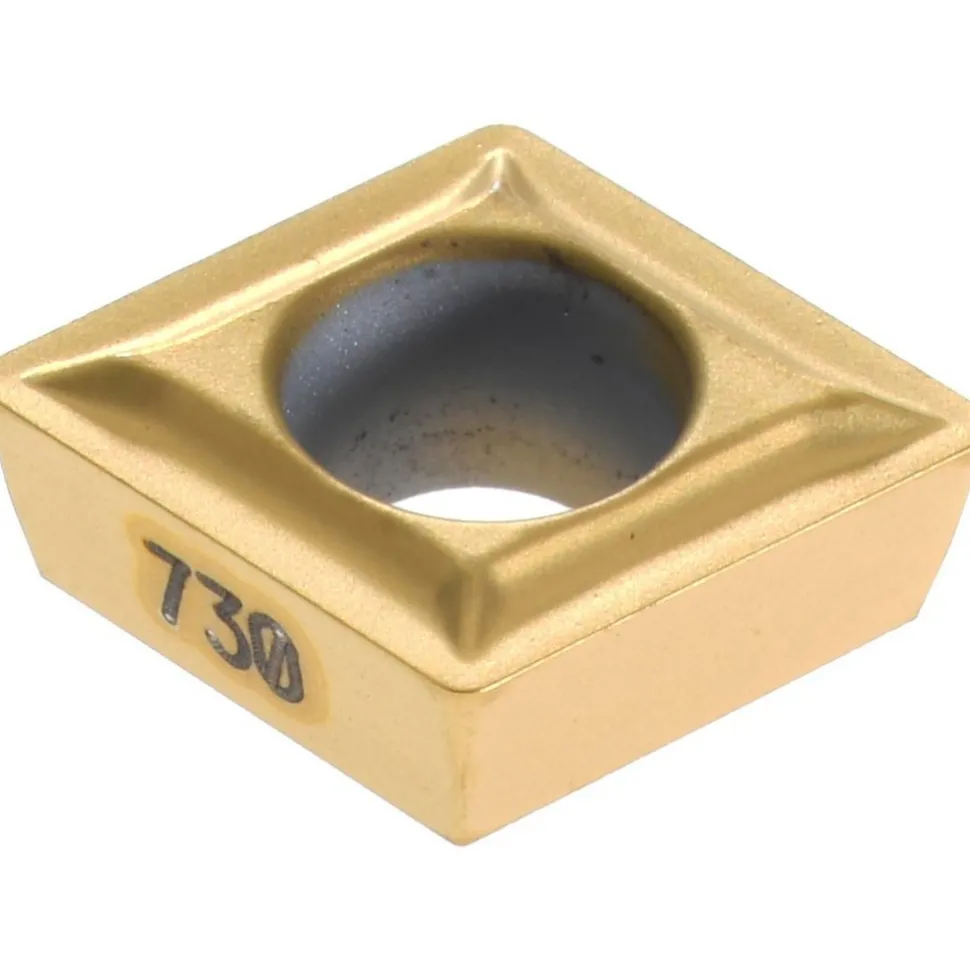

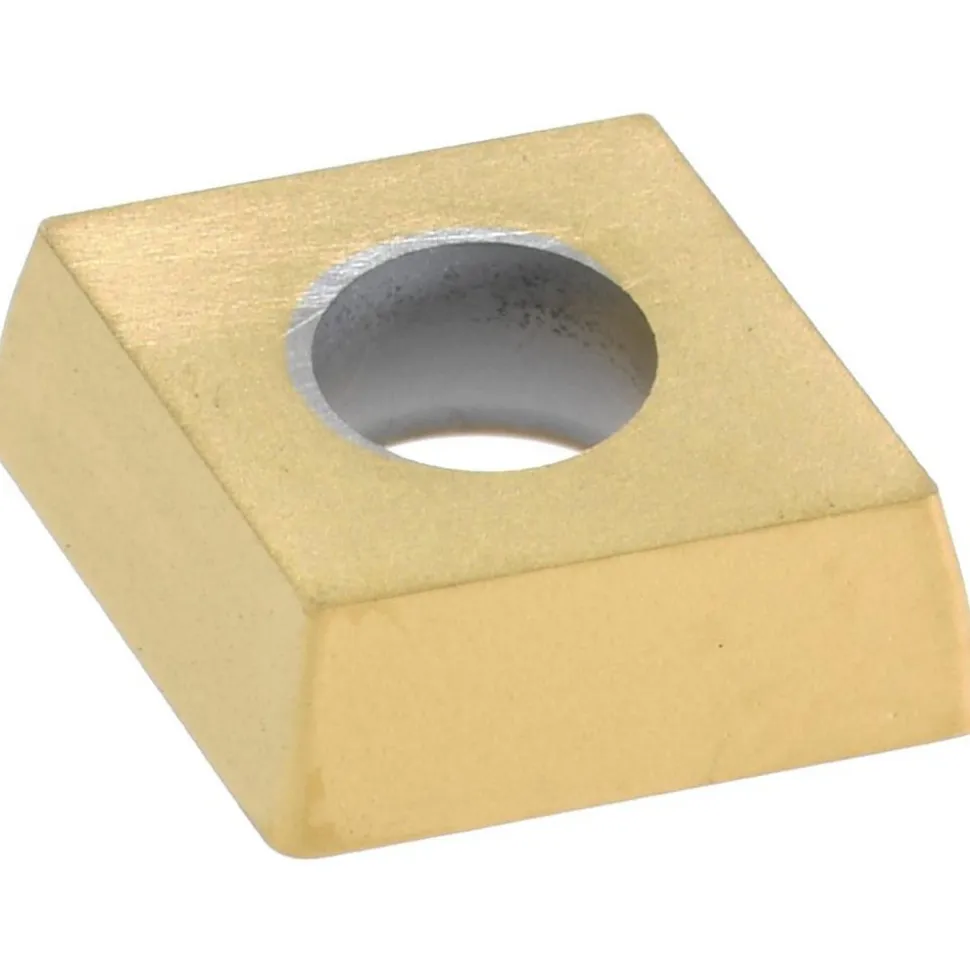

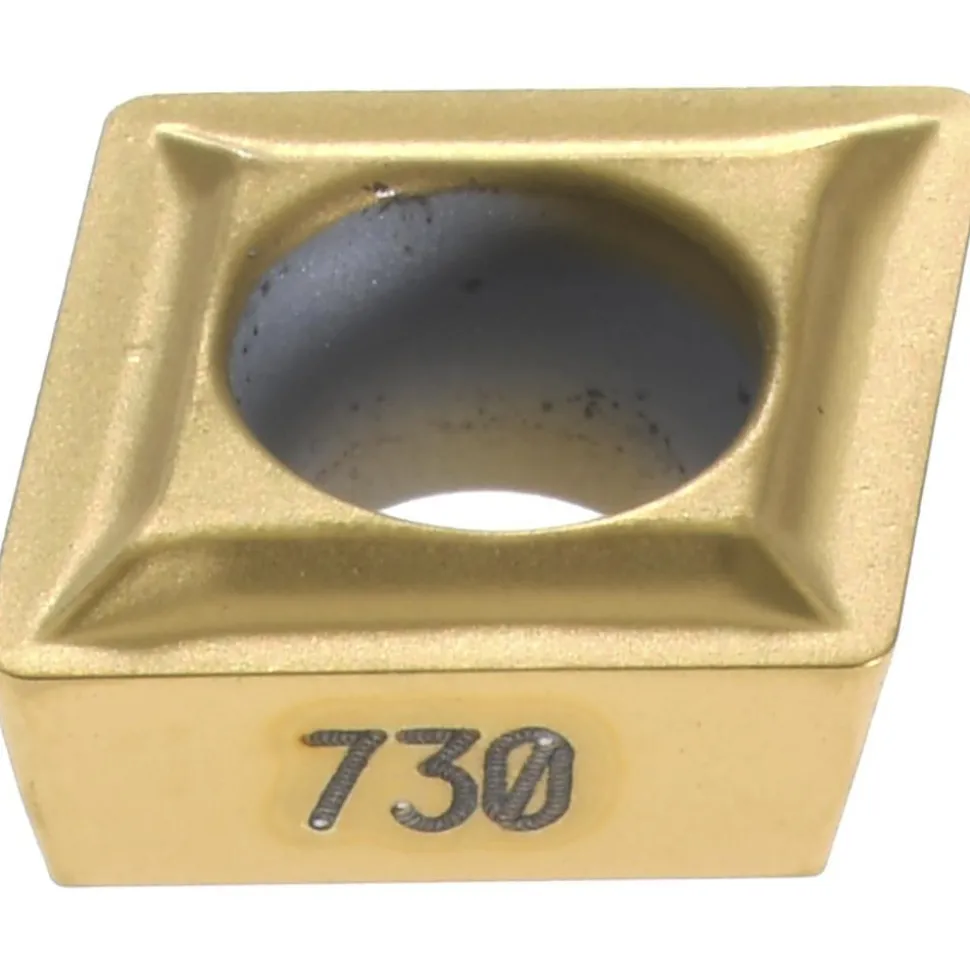

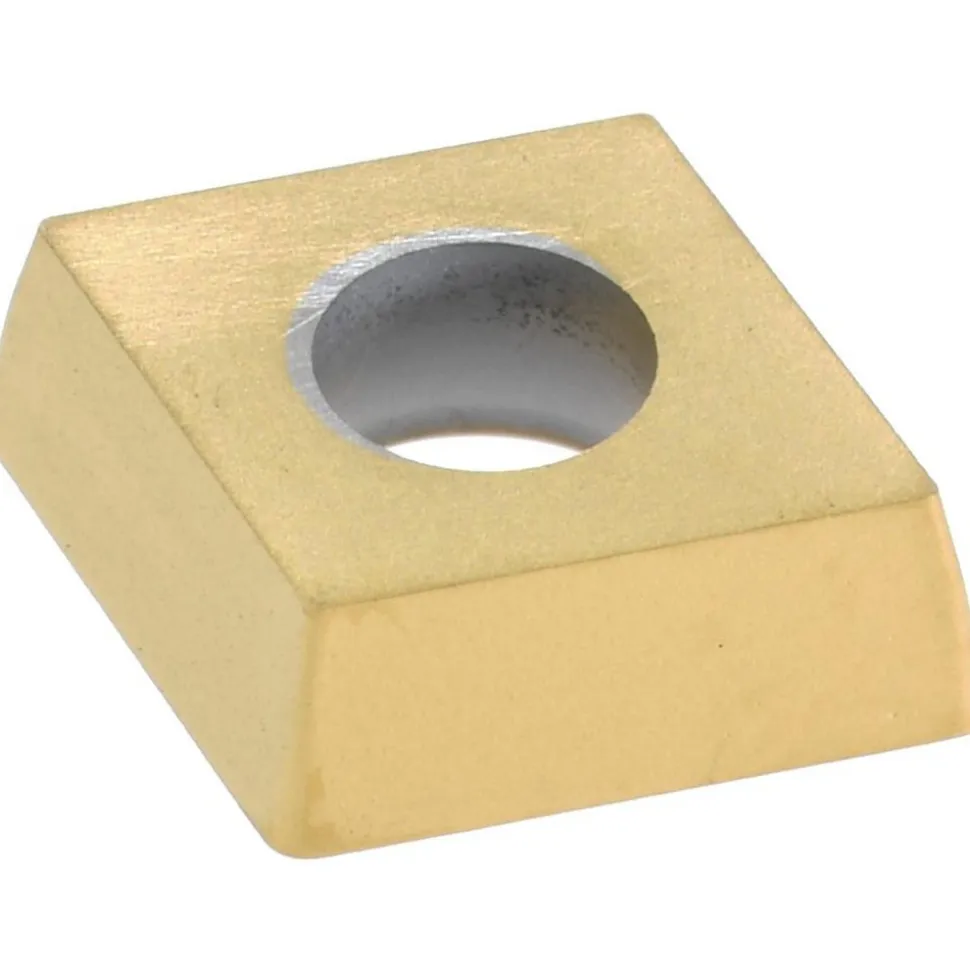

Turning Insert: CPMT21.51LF KC730, Carbide

Turning Insert: CPMT21.51LF KC730, Carbide

22,89 $

SKU: SKUcDpRDIme2x Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: Kennametal Brand: Kennametal

Description
Reviews (0)

Specifications

Insert Style: CPMT	ANSI Size Code: 21.51
ISO Size Code: 060204	Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00	Inscribed Circle (Decimal Inch): 0.2500
Inscribed Circle (Inch): 1/4	Corner Radius (Inch): 1/64
Corner Radius (Decimal Inch): 0.0156	Insert Material: Carbide
Manufacturer Grade: KC730	Coating/Finish: TiN
Relief Angle: 11.000	Wiper Edge: No
Insert Thickness (Inch): 3/32	Insert Thickness (Decimal Inch): 0.0938
Insert Hand: Neutral	Series: Screw-On
Chip Breaker Operation: Light Machining; Finishing	Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Positive	Number Of Cutting Edges: 2
Hole Diameter (Decimal Inch): 0.1142	Hole Diameter (mm): 2.80
Maximum Depth of Cut (mm): 1.25	Maximum Depth of Cut (Decimal Inch): 0.0492
ANSI Insert Code: CPMT21.51	ISO Insert Code: CPMT060204
Insert Holding Method: Screw	Width (Inch): 1/4
Clearance Code: P	Tolerance Code: M
Coating Process: PVD	Rake: Positive
Insert Length (Decimal Inch): 0.2539	Insert Length (mm): 6.45
Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel	Primary Workpiece Material Code: P; K; M
Secondary Workpiece Material Code: S; M	Standards: ISO; ANSI
Manufacturers Catalog Number: 1161915	Material Grade: C3; C4; C2
Proprietary Coating Designation: TiN	Coating Classification: PVD
Chip Breaker: LF	Rake Angle: 5
Cutting Edge Style: Honed	Industry Standard Number: CPMT2151LF
Width (Decimal Inch – 4 Decimals): 0.2500	Multi-Use Tool: Yes
Full Radius: No	Multi-Use Application: Facing; Turning; Boring
UNSPSC Code: 23242105	Country of Origin: UNITED STATES
Insert Style: CPMT
ANSI Size Code: 21.51
ISO Size Code: 060204
Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00
Inscribed Circle (Decimal Inch): 0.2500
Inscribed Circle (Inch): 1/4
Corner Radius (Inch): 1/64
Corner Radius (Decimal Inch): 0.0156
Insert Material: Carbide
Manufacturer Grade: KC730
Coating/Finish: TiN
Relief Angle: 11.000
Wiper Edge: No
Insert Thickness (Inch): 3/32
Insert Thickness (Decimal Inch): 0.0938
Insert Hand: Neutral
Series: Screw-On
Chip Breaker Operation: Light Machining; Finishing
Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Positive
Number Of Cutting Edges: 2
Hole Diameter (Decimal Inch): 0.1142
Hole Diameter (mm): 2.80
Maximum Depth of Cut (mm): 1.25
Maximum Depth of Cut (Decimal Inch): 0.0492
ANSI Insert Code: CPMT21.51
ISO Insert Code: CPMT060204
Insert Holding Method: Screw
Width (Inch): 1/4
Clearance Code: P
Tolerance Code: M
Coating Process: PVD
Rake: Positive
Insert Length (Decimal Inch): 0.2539
Insert Length (mm): 6.45
Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel
Primary Workpiece Material Code: P; K; M
Secondary Workpiece Material Code: S; M
Standards: ISO; ANSI
Manufacturers Catalog Number: 1161915
Material Grade: C3; C4; C2
Proprietary Coating Designation: TiN
Coating Classification: PVD
Chip Breaker: LF
Rake Angle: 5
Cutting Edge Style: Honed
Industry Standard Number: CPMT2151LF
Width (Decimal Inch – 4 Decimals): 0.2500
Multi-Use Tool: Yes
Full Radius: No
Multi-Use Application: Facing; Turning; Boring
UNSPSC Code: 23242105
Country of Origin: UNITED STATES
