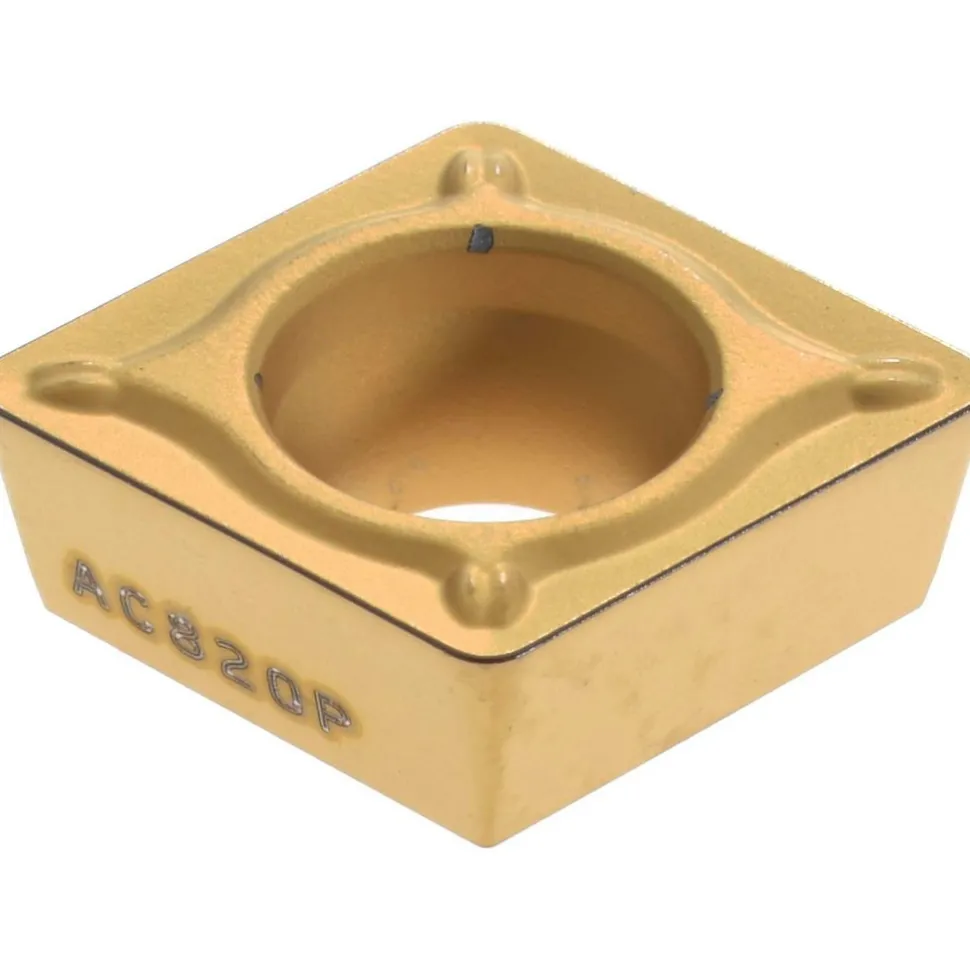

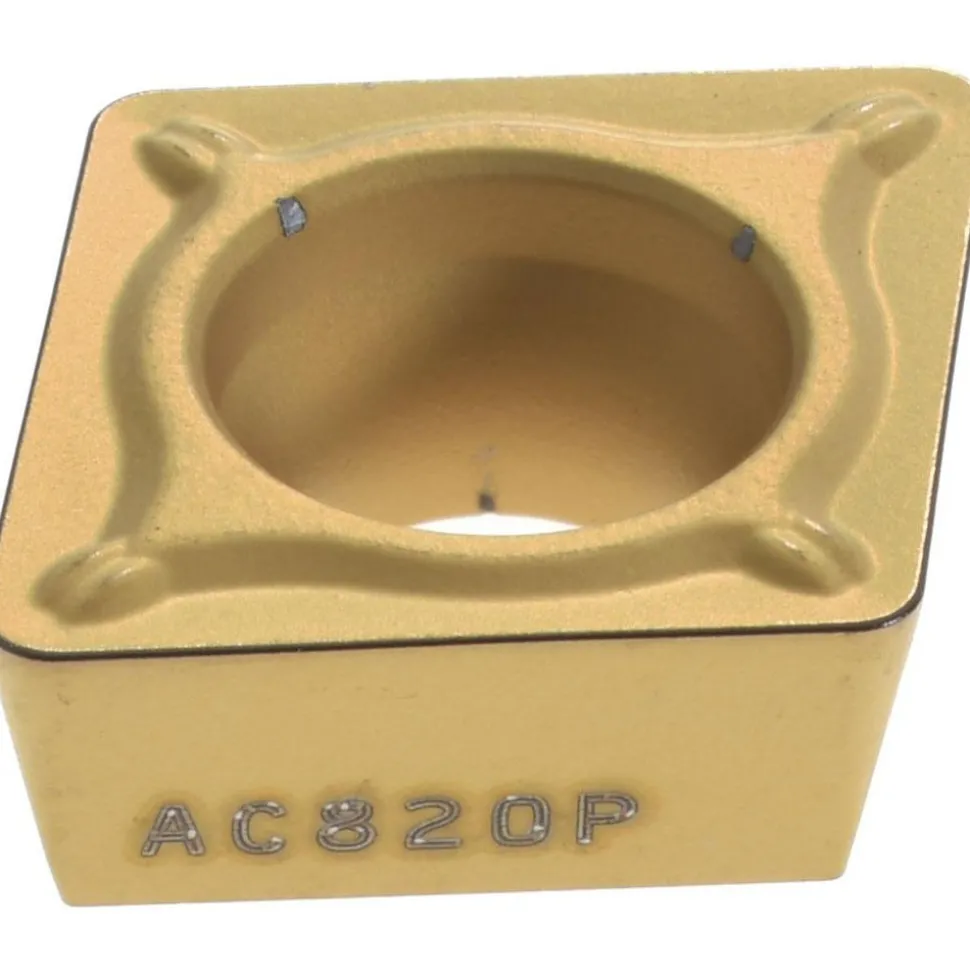

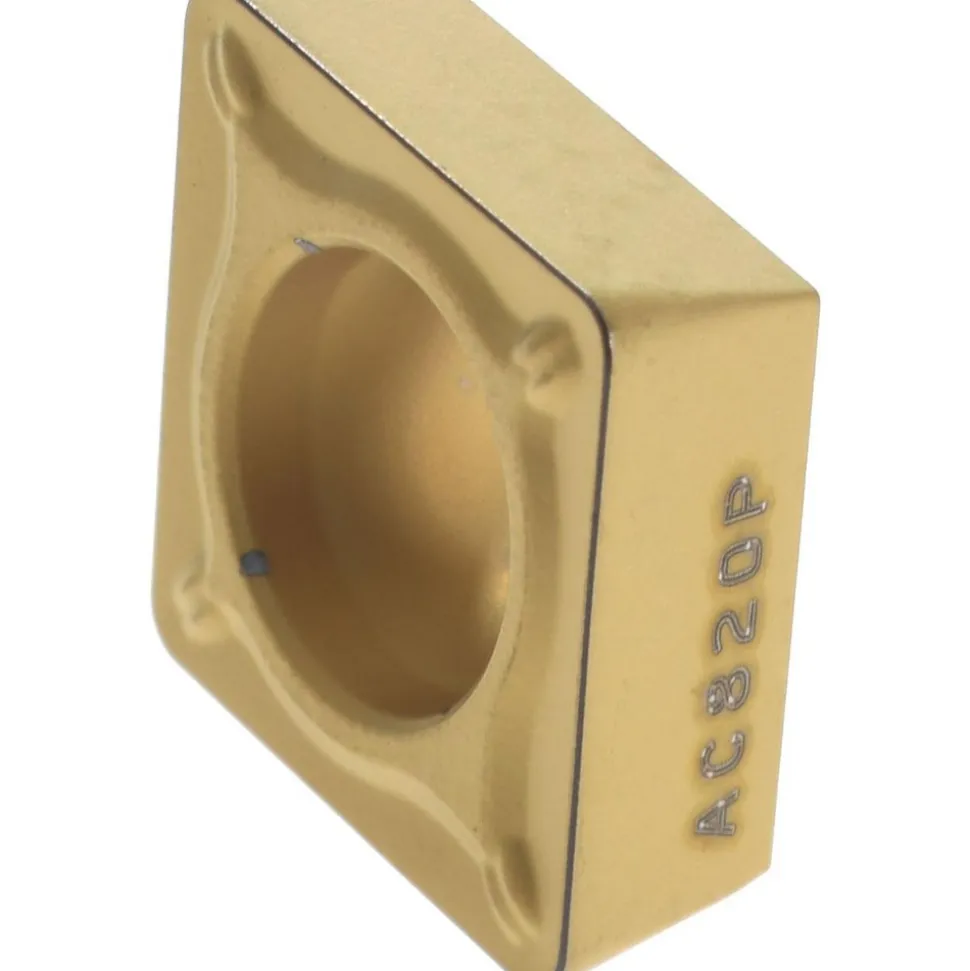

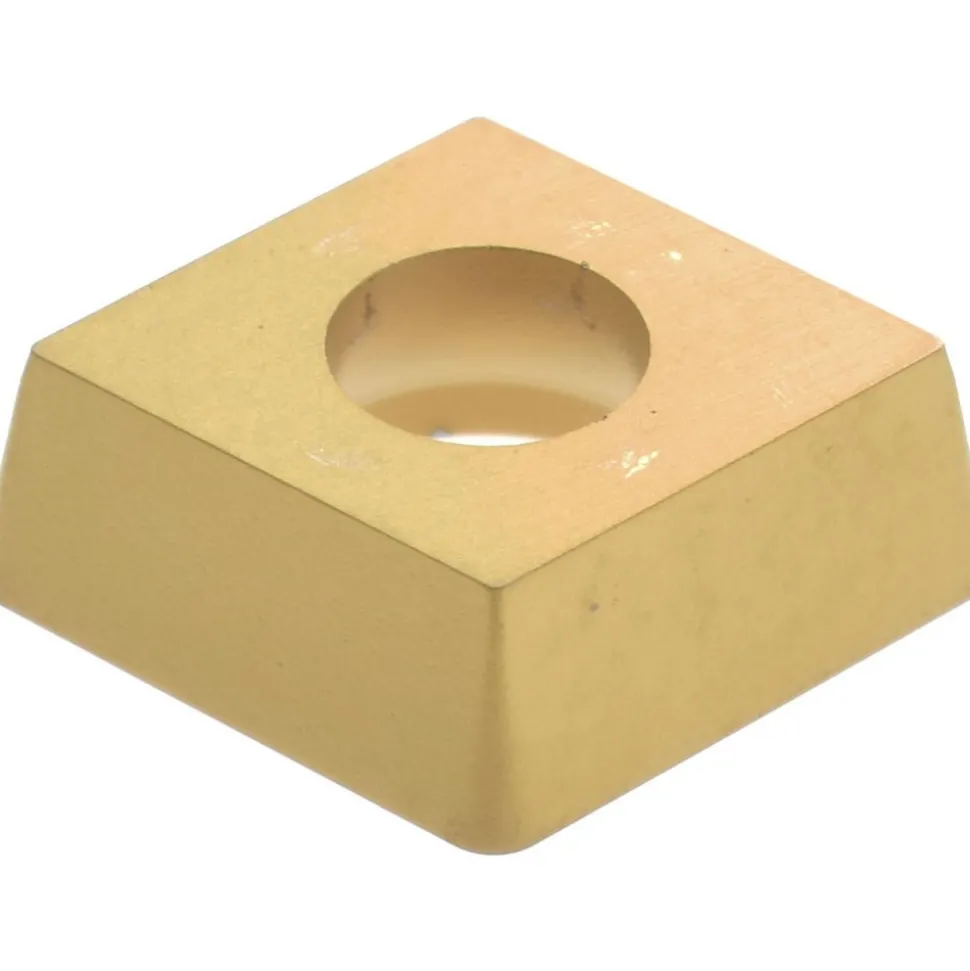

Turning Insert: CPMT32.52ESU AC820P, Carbide

Turning Insert: CPMT32.52ESU AC820P, Carbide

10,99 $

SKU: SKUkPCCNActKP Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: Sumitomo Brand: Sumitomo

Description
Reviews (0)

Specifications

Insert Style: CPMT	ANSI Size Code: 32.52
ISO Size Code: 09T308	Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00	Inscribed Circle (Decimal Inch): 0.3750
Inscribed Circle (Inch): 3/8	Corner Radius (Inch): 1/32
Corner Radius (Decimal Inch): 0.0313	Insert Material: Carbide
Manufacturer Grade: AC820P	Coating/Finish: Coated
Relief Angle: 11.000	Insert Thickness (Inch): 5/32
Insert Thickness (Decimal Inch): 0.1563	Insert Hand: Neutral
Series: CPMT	Chip Breaker Operation: Light Machining; Finishing
Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness	Side Clearance: Positive
Hole Diameter (Decimal Inch): 0.1730	ANSI Insert Code: CPMT32.52
ISO Insert Code: CPMT09T308	Insert Holding Method: Screw
Clearance Code: P	Tolerance Code: M
Coating Process: CVD	Rake: Positive
Insert Length (Decimal Inch): 0.3819	Primary Workpiece Material: Steel
Primary Workpiece Material Code: P; K	Iso Code: CPMT09T308N-SU
Standards: ISO 13399; ANSI	Material Grade: C6; C7; C8; C5A
Chip Breaker: ESU	UNSPSC Code: 23242105
Country of Origin: Japan
Insert Style: CPMT
ANSI Size Code: 32.52
ISO Size Code: 09T308
Insert Shape: C – Diamond (Rhombic) 80-Deg
Included Angle: 80.00
Inscribed Circle (Decimal Inch): 0.3750
Inscribed Circle (Inch): 3/8
Corner Radius (Inch): 1/32
Corner Radius (Decimal Inch): 0.0313
Insert Material: Carbide
Manufacturer Grade: AC820P
Coating/Finish: Coated
Relief Angle: 11.000
Insert Thickness (Inch): 5/32
Insert Thickness (Decimal Inch): 0.1563
Insert Hand: Neutral
Series: CPMT
Chip Breaker Operation: Light Machining; Finishing
Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Positive
Hole Diameter (Decimal Inch): 0.1730
ANSI Insert Code: CPMT32.52
ISO Insert Code: CPMT09T308
Insert Holding Method: Screw
Clearance Code: P
Tolerance Code: M
Coating Process: CVD
Rake: Positive
Insert Length (Decimal Inch): 0.3819
Primary Workpiece Material: Steel
Primary Workpiece Material Code: P; K
Iso Code: CPMT09T308N-SU
Standards: ISO 13399; ANSI
Material Grade: C6; C7; C8; C5A
Chip Breaker: ESU
UNSPSC Code: 23242105
Country of Origin: Japan
