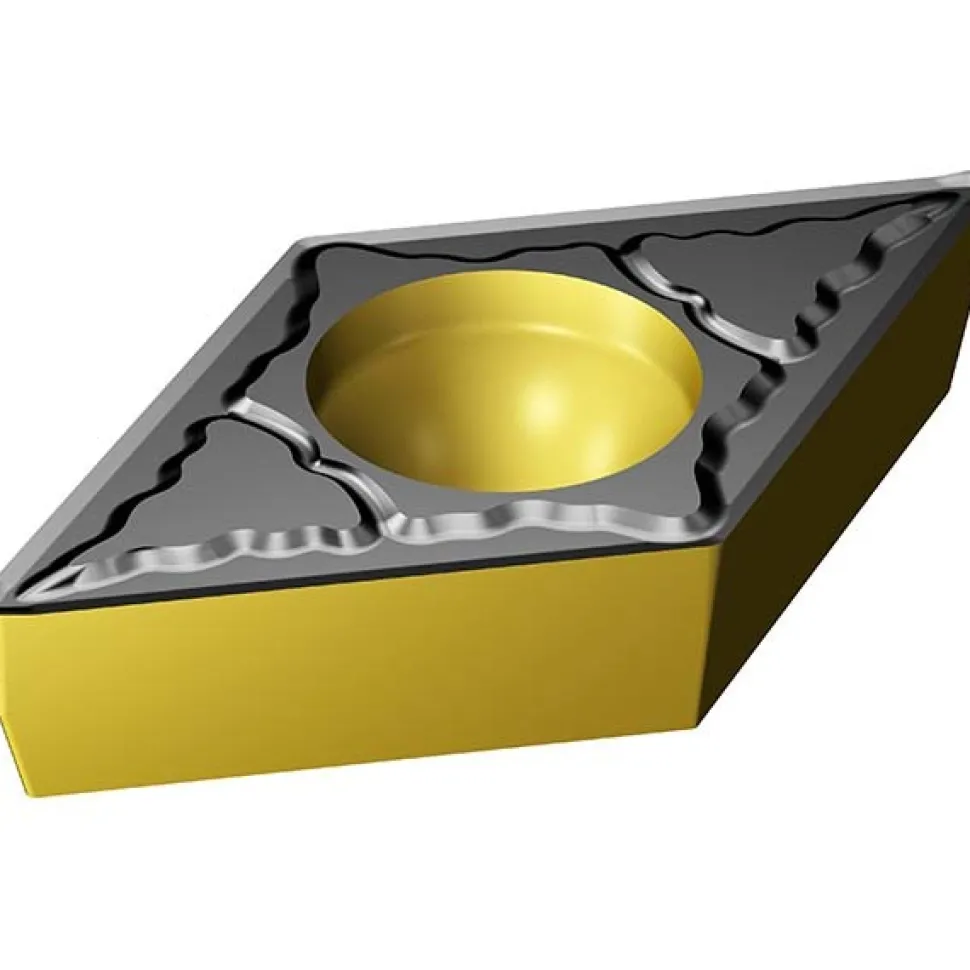

Turning Insert: DCMT32.51-PM 4425, Carbide
18,99 $
Specifications

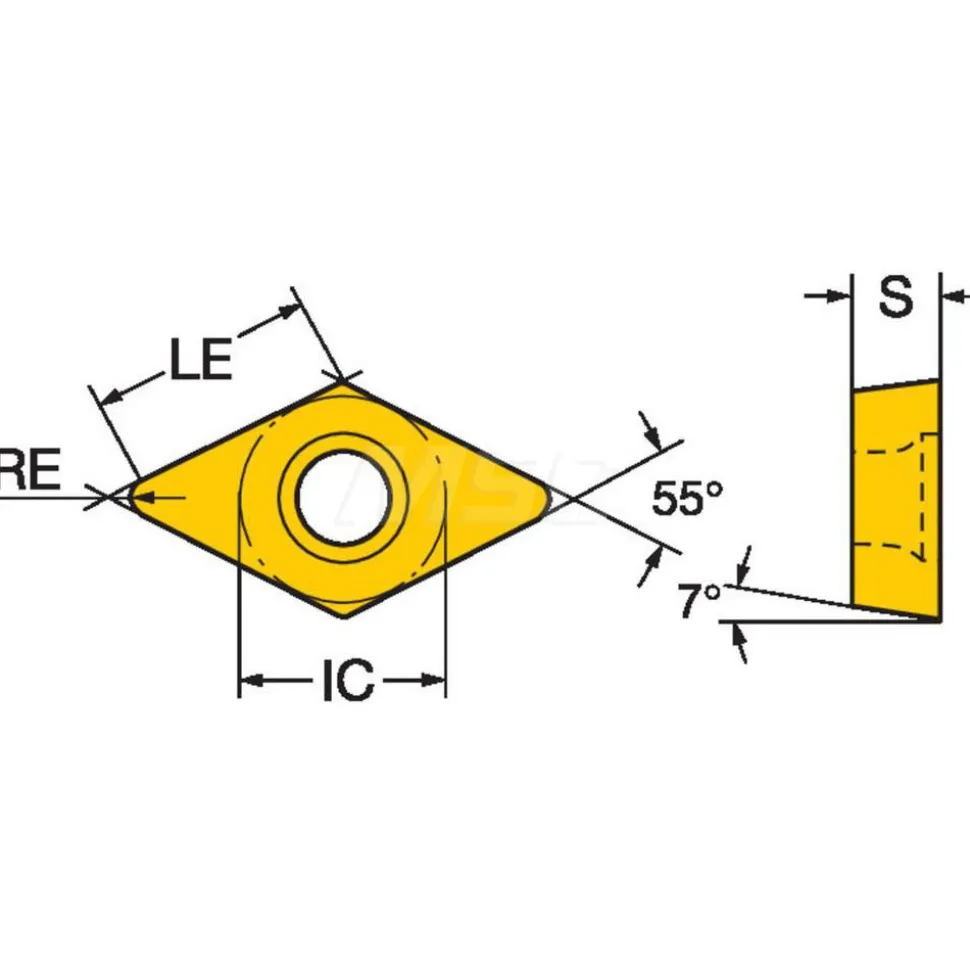

| Insert Style: DCMT | ANSI Size Code: 32.51 |
| ISO Size Code: 11T304 | Insert Shape: D – Diamond (Rhombic) 55-Deg |
| Included Angle: 55.00 | Inscribed Circle (Decimal Inch): 0.3750 |
| Inscribed Circle (Inch): 3/8 | Inscribed Circle (mm): 9.53 |
| Corner Radius (mm): 0.40 | Corner Radius (Decimal Inch): 0.0156 |
| Insert Material: Carbide | Manufacturer Grade: 4425 |
| Coating/Finish: TiCN; TiN; Al2O3 | Relief Angle: 7.000 |
| Wiper Edge: No | Insert Thickness (Decimal Inch): 0.1563 |
| Insert Thickness: 3.97 | Insert Hand: Neutral |
| Series: CoroTurn 107 | Chip Breaker Operation: Medium Machining; Roughing |
| Grade Characteristics: Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness | Side Clearance: Positive |
| Number Of Cutting Edges: 2 | Hole Diameter (Decimal Inch): 0.1732 |
| Hole Diameter (mm): 4.40 | ANSI Insert Code: DCMT32.51 |
| ISO Insert Code: DCMT11T304 | Insert Holding Method: Screw; Clamp |
| Clearance Code: C | Tolerance Code: M |
| Coating Process: CVD | Primary Workpiece Material: Steel |
| Primary Workpiece Material Code: P | Secondary Workpiece Material: Cast Iron |
| Secondary Workpiece Material Code: K | Iso Code: DCMT 11 T3 04-PM 4425 |
| Manufacturers Catalog Number: DCMT 3(2.5)1-PM 4425 | Chip Breaker: PM |
| UNSPSC Code: 23242105 | Country of Origin: India |
| Insert Style: DCMT | |
| ANSI Size Code: 32.51 | |
| ISO Size Code: 11T304 | |
| Insert Shape: D – Diamond (Rhombic) 55-Deg | |
| Included Angle: 55.00 | |
| Inscribed Circle (Decimal Inch): 0.3750 | |
| Inscribed Circle (Inch): 3/8 | |
| Inscribed Circle (mm): 9.53 | |
| Corner Radius (mm): 0.40 | |
| Corner Radius (Decimal Inch): 0.0156 | |
| Insert Material: Carbide | |
| Manufacturer Grade: 4425 | |
| Coating/Finish: TiCN; TiN; Al2O3 | |
| Relief Angle: 7.000 | |
| Wiper Edge: No | |
| Insert Thickness (Decimal Inch): 0.1563 | |
| Insert Thickness: 3.97 | |
| Insert Hand: Neutral | |
| Series: CoroTurn 107 | |
| Chip Breaker Operation: Medium Machining; Roughing | |
| Grade Characteristics: Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness | |
| Side Clearance: Positive | |
| Number Of Cutting Edges: 2 | |
| Hole Diameter (Decimal Inch): 0.1732 | |
| Hole Diameter (mm): 4.40 | |
| ANSI Insert Code: DCMT32.51 | |
| ISO Insert Code: DCMT11T304 | |
| Insert Holding Method: Screw; Clamp | |
| Clearance Code: C | |
| Tolerance Code: M | |
| Coating Process: CVD | |
| Primary Workpiece Material: Steel | |
| Primary Workpiece Material Code: P | |
| Secondary Workpiece Material: Cast Iron | |
| Secondary Workpiece Material Code: K | |
| Iso Code: DCMT 11 T3 04-PM 4425 | |
| Manufacturers Catalog Number: DCMT 3(2.5)1-PM 4425 | |
| Chip Breaker: PM | |
| UNSPSC Code: 23242105 | |
| Country of Origin: India |
| MSC# | 19104611 |
| Mfr# | 7860818 |
