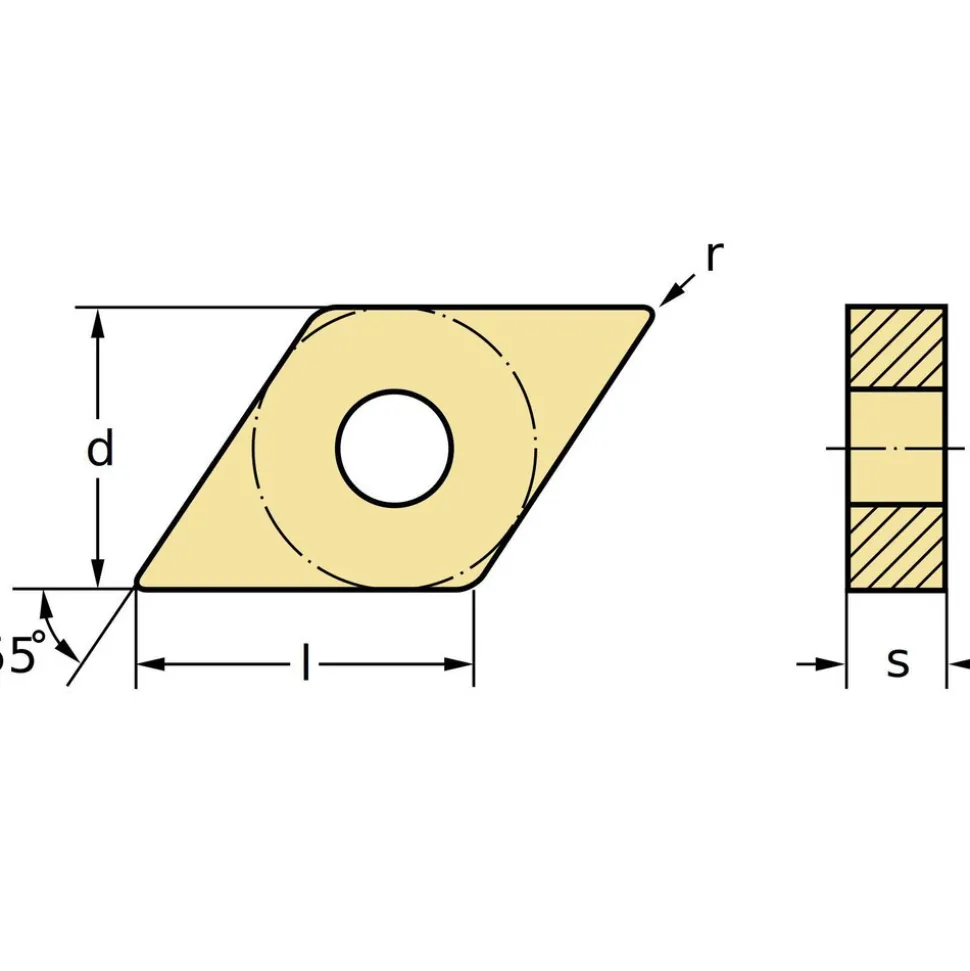

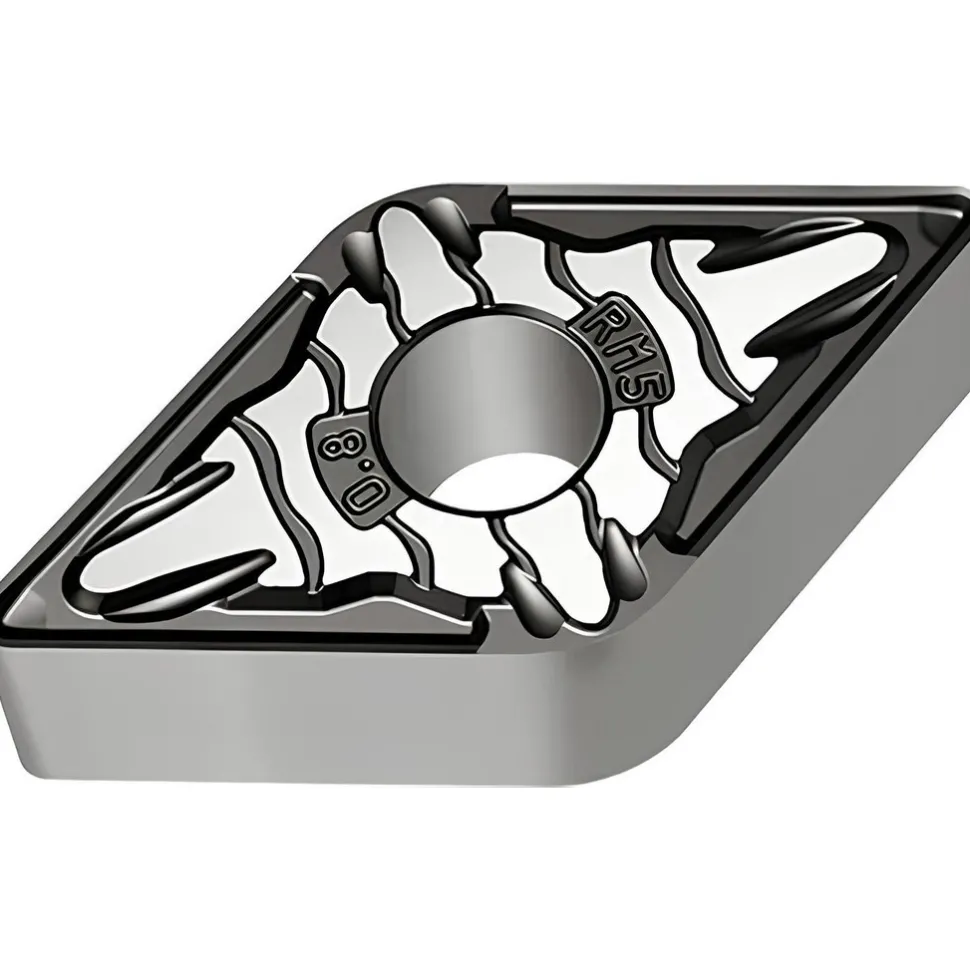

Turning Insert: DNMG150408-RM5 WSM30S, Carbide
Original price was: 30,00 $.22,99 $Current price is: 22,99 $.
Specifications
| Insert Style: DNMG | ANSI Size Code: 432 |
| ISO Size Code: 150408 | Insert Shape: D – Diamond (Rhombic) 55-Deg |
| Included Angle: 55.00 | Inscribed Circle (Decimal Inch): 0.5000 |
| Inscribed Circle (Inch): 1/2 | Corner Radius (Inch): 1/32 |
| Corner Radius (mm): 0.80 | Corner Radius (Decimal Inch): 0.0315 |
| Insert Material: Carbide | Manufacturer Grade: WSM30S |
| Coating/Finish: TiCN; Al; Al2O3 | Relief Angle: 0.000 |
| Wiper Edge: No | Insert Thickness (Inch): 3/16 |
| Insert Thickness (Decimal Inch): 0.1875 | Insert Hand: Neutral |
| Series: DNMG-RM5 | Chip Breaker Operation: Medium Machining; Roughing |
| Side Clearance: Negative | Number Of Cutting Edges: 4 |
| Hole Diameter (Decimal Inch): 0.2030 | Hole Diameter (mm): 5.16 |
| Maximum Depth of Cut (mm): 4.00 | Maximum Depth of Cut (Decimal Inch): 0.2000 |
| ANSI Insert Code: DNMG432 | ISO Insert Code: DNMG150408 |
| Insert Holding Method: Pin; Clamp | Width (Inch): 1/2 |
| Clearance Code: N | Tolerance Code: M |
| Coating Process: PVD | Rake: Negative |
| Insert Length (Decimal Inch): 0.6104 | Insert Length (mm): 15.50 |
| Primary Workpiece Material: Stainless Steel; Superalloys & Titanium | Primary Workpiece Material Code: S; M |
| Secondary Workpiece Material: Steel | Secondary Workpiece Material Code: P |
| Iso Code: DNMG150408-RM5 WSM30S | Standards: ISO; ANSI |
| Manufacturers Catalog Number: 6944743 | Material Grade: S30; M30; P30 |
| Proprietary Coating Designation: WSM30S | Lead Angle: 55.000 |
| Coating Classification: PVD | Chip Breaker: RM5 |
| Rake Angle: 20 | Cutting Edge Style: Honed; Chamfered |
| Industry Standard Number: DNMG432-RM5 WSM30S | Width (Decimal Inch – 4 Decimals): 0.5000 |
| Multi-Use Tool: Yes | Full Radius: No |
| Multi-Use Application: Facing; Turning; Back Turning; Boring | UNSPSC Code: 23242105 |
| Country of Origin: Germany | |
| Insert Style: DNMG | |
| ANSI Size Code: 432 | |
| ISO Size Code: 150408 | |
| Insert Shape: D – Diamond (Rhombic) 55-Deg | |
| Included Angle: 55.00 | |
| Inscribed Circle (Decimal Inch): 0.5000 | |
| Inscribed Circle (Inch): 1/2 | |
| Corner Radius (Inch): 1/32 | |
| Corner Radius (mm): 0.80 | |
| Corner Radius (Decimal Inch): 0.0315 | |
| Insert Material: Carbide | |
| Manufacturer Grade: WSM30S | |
| Coating/Finish: TiCN; Al; Al2O3 | |
| Relief Angle: 0.000 | |
| Wiper Edge: No | |
| Insert Thickness (Inch): 3/16 | |
| Insert Thickness (Decimal Inch): 0.1875 | |
| Insert Hand: Neutral | |
| Series: DNMG-RM5 | |
| Chip Breaker Operation: Medium Machining; Roughing | |
| Side Clearance: Negative | |
| Number Of Cutting Edges: 4 | |
| Hole Diameter (Decimal Inch): 0.2030 | |
| Hole Diameter (mm): 5.16 | |
| Maximum Depth of Cut (mm): 4.00 | |
| Maximum Depth of Cut (Decimal Inch): 0.2000 | |
| ANSI Insert Code: DNMG432 | |
| ISO Insert Code: DNMG150408 | |
| Insert Holding Method: Pin; Clamp | |
| Width (Inch): 1/2 | |
| Clearance Code: N | |
| Tolerance Code: M | |
| Coating Process: PVD | |
| Rake: Negative | |
| Insert Length (Decimal Inch): 0.6104 | |
| Insert Length (mm): 15.50 | |
| Primary Workpiece Material: Stainless Steel; Superalloys & Titanium | |
| Primary Workpiece Material Code: S; M | |
| Secondary Workpiece Material: Steel | |
| Secondary Workpiece Material Code: P | |
| Iso Code: DNMG150408-RM5 WSM30S | |
| Standards: ISO; ANSI | |
| Manufacturers Catalog Number: 6944743 | |
| Material Grade: S30; M30; P30 | |
| Proprietary Coating Designation: WSM30S | |
| Lead Angle: 55.000 | |
| Coating Classification: PVD | |
| Chip Breaker: RM5 | |
| Rake Angle: 20 | |
| Cutting Edge Style: Honed; Chamfered | |
| Industry Standard Number: DNMG432-RM5 WSM30S | |
| Width (Decimal Inch – 4 Decimals): 0.5000 | |
| Multi-Use Tool: Yes | |
| Full Radius: No | |
| Multi-Use Application: Facing; Turning; Back Turning; Boring | |
| UNSPSC Code: 23242105 | |
| Country of Origin: Germany |
| MSC# | 38187449 |
| Mfr# | 6944743 |
