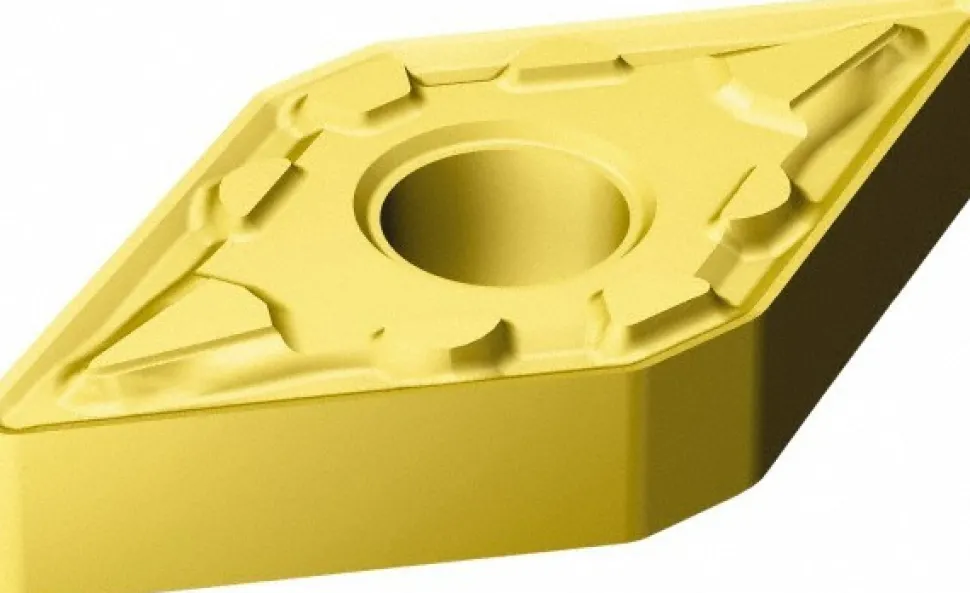

Turning Insert: DNMG432-MM 2025, Carbide
20,99 $
Specifications
| Insert Style: DNMG | ANSI Size Code: 432 |

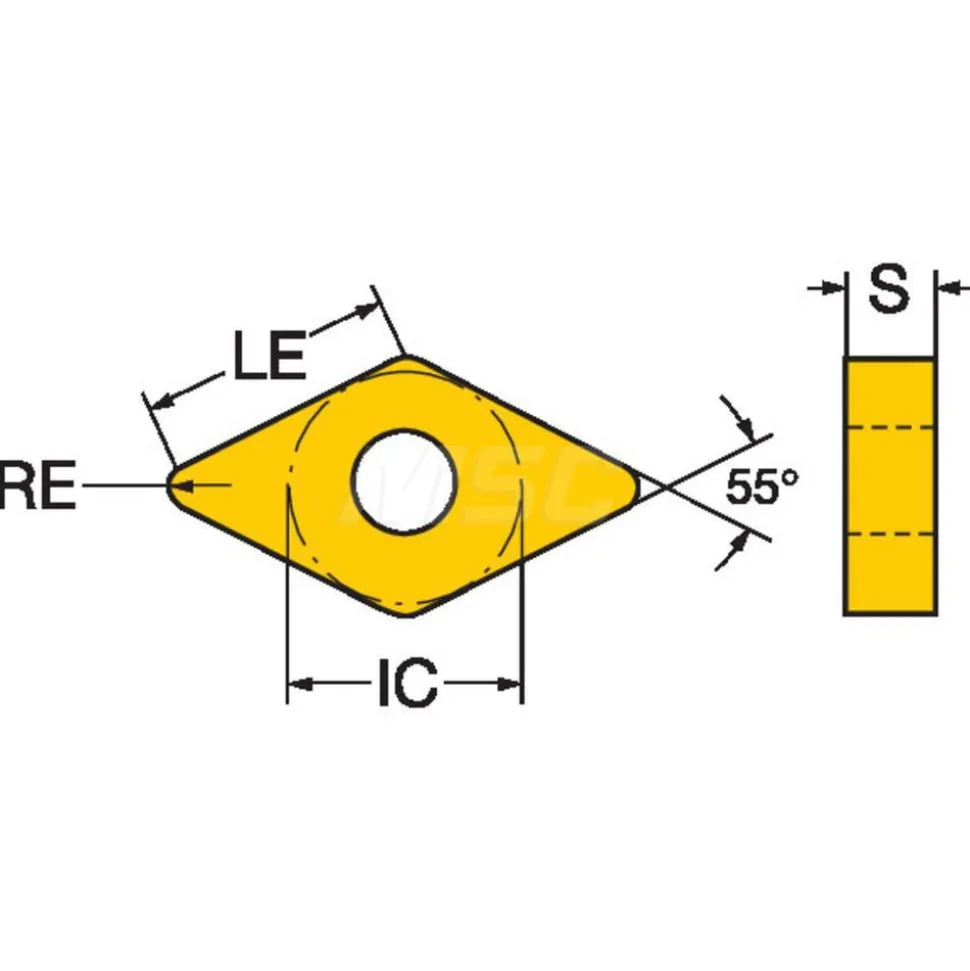

| ISO Size Code: 150408 | Insert Shape: D – Diamond (Rhombic) 55-Deg |
| Included Angle: 55.00 | Inscribed Circle (Decimal Inch): 0.5000 |
| Inscribed Circle (Inch): 1/2 | Inscribed Circle (mm): 12.70 |
| Corner Radius (Inch): 1/32 | Corner Radius (mm): 0.79 |
| Corner Radius (Decimal Inch): 0.0313 | Insert Material: Carbide |
| Manufacturer Grade: 2025 | Coating/Finish: TiCN; TiN; AI2O3 |
| Relief Angle: 0.000 | Wiper Edge: No |
| Insert Thickness (Inch): 3/16 | Insert Thickness (Decimal Inch): 0.1875 |
| Insert Thickness: 4.76 | Insert Hand: Neutral |
| Series: T-Max P | Chip Breaker Operation: Medium Machining; Roughing |
| Grade Characteristics: Stainless Steel (M) – High Wear-Resistance to High Toughness | Side Clearance: Negative |
| Number Of Cutting Edges: 4 | Hole Diameter (Decimal Inch): 0.2030 |
| Hole Diameter (mm): 5.16 | ANSI Insert Code: DNMG432 |
| ISO Insert Code: DNMG150408 | Insert Holding Method: Pin; Clamp |
| Clearance Code: N | Tolerance Code: M |
| Coating Process: CVD | Insert Length (Decimal Inch): 0.5789 |
| Insert Length (mm): 14.70 | Primary Workpiece Material: Stainless Steel |
| Primary Workpiece Material Code: M | Iso Code: DNMG 15 04 08-MM 2025 |
| Chip Breaker: MM | UNSPSC Code: 23242105 |
| Country of Origin: VARIOUS | |
| Insert Style: DNMG | |
| ANSI Size Code: 432 | |
| ISO Size Code: 150408 | |
| Insert Shape: D – Diamond (Rhombic) 55-Deg | |
| Included Angle: 55.00 | |
| Inscribed Circle (Decimal Inch): 0.5000 | |
| Inscribed Circle (Inch): 1/2 | |
| Inscribed Circle (mm): 12.70 | |
| Corner Radius (Inch): 1/32 | |
| Corner Radius (mm): 0.79 | |
| Corner Radius (Decimal Inch): 0.0313 | |
| Insert Material: Carbide | |
| Manufacturer Grade: 2025 | |
| Coating/Finish: TiCN; TiN; AI2O3 | |
| Relief Angle: 0.000 | |
| Wiper Edge: No | |
| Insert Thickness (Inch): 3/16 | |
| Insert Thickness (Decimal Inch): 0.1875 | |
| Insert Thickness: 4.76 | |
| Insert Hand: Neutral | |
| Series: T-Max P | |
| Chip Breaker Operation: Medium Machining; Roughing | |
| Grade Characteristics: Stainless Steel (M) – High Wear-Resistance to High Toughness | |
| Side Clearance: Negative | |
| Number Of Cutting Edges: 4 | |
| Hole Diameter (Decimal Inch): 0.2030 | |
| Hole Diameter (mm): 5.16 | |
| ANSI Insert Code: DNMG432 | |
| ISO Insert Code: DNMG150408 | |
| Insert Holding Method: Pin; Clamp | |
| Clearance Code: N | |
| Tolerance Code: M | |
| Coating Process: CVD | |
| Insert Length (Decimal Inch): 0.5789 | |
| Insert Length (mm): 14.70 | |
| Primary Workpiece Material: Stainless Steel | |
| Primary Workpiece Material Code: M | |
| Iso Code: DNMG 15 04 08-MM 2025 | |
| Chip Breaker: MM | |
| UNSPSC Code: 23242105 | |
| Country of Origin: VARIOUS |
| MSC# | 87269700 |
| Mfr# | 5732702 |
