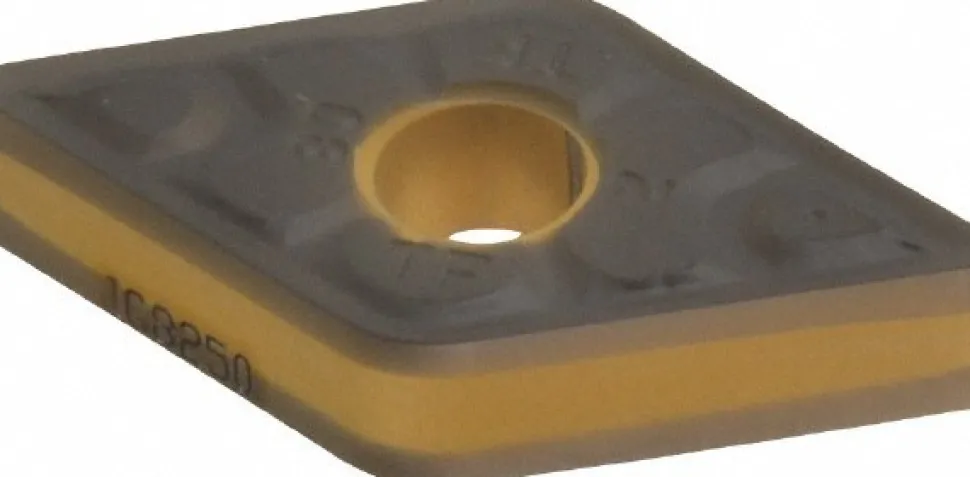

Turning Insert: DNMG432TF IC8250, Carbide

Turning Insert: DNMG432TF IC8250, Carbide

Original price was: 31,00 $.Current price is: 21,89 $.

SKU: SKUUJqbqNG0B6 Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: Iscar Brand: Iscar

Description
Reviews (0)

Specifications

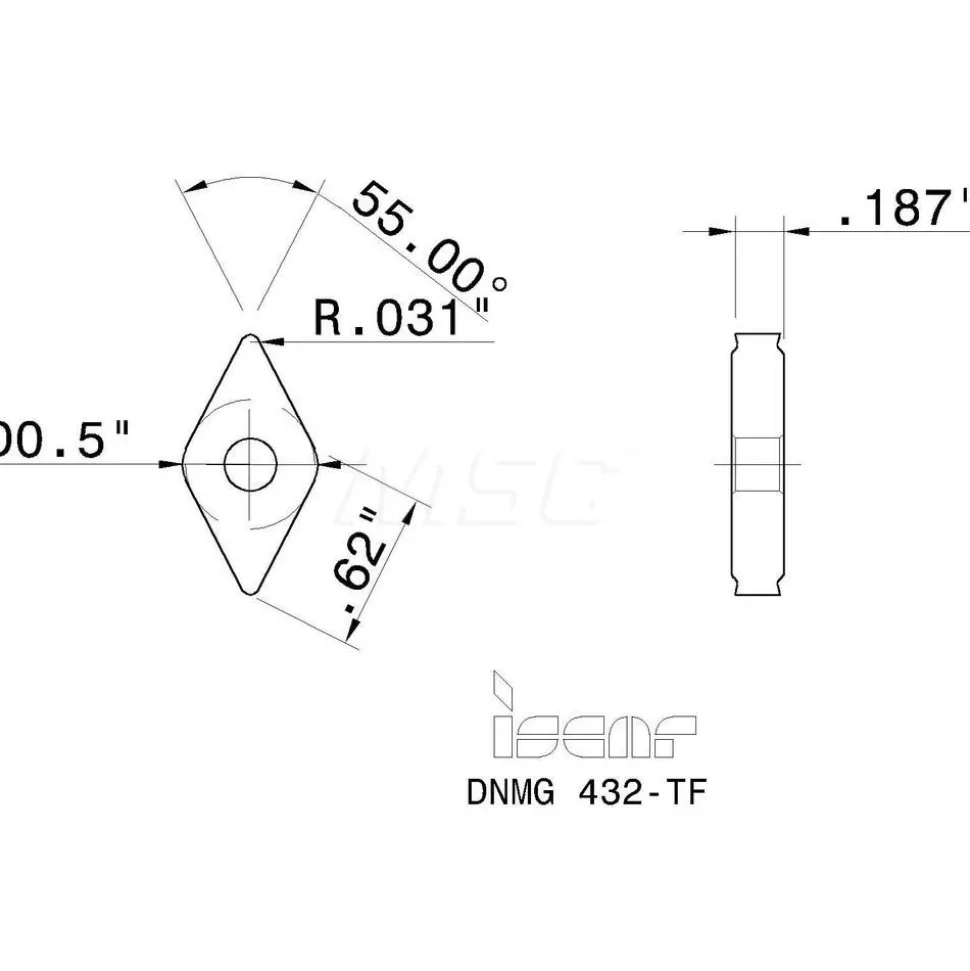

Insert Style: DNMG	ANSI Size Code: 432
ISO Size Code: 150408	Insert Shape: D – Diamond (Rhombic) 55-Deg
Included Angle: 55.00	Inscribed Circle (Decimal Inch): 0.5000
Inscribed Circle (Inch): 1/2	Corner Radius (Inch): 1/32
Corner Radius (Decimal Inch): 0.0315	Insert Material: Carbide
Manufacturer Grade: IC8250	Coating/Finish: TiCN; Al2O3
Relief Angle: 0.000	Insert Thickness (Inch): 3/16
Insert Thickness (Decimal Inch): 0.1874	Series: Isoturn
Chip Breaker Operation: Medium Machining; Roughing	Grade Characteristics: Steel (P) – High Wear-Resistance to High Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Negative	Hole Diameter (Decimal Inch): 0.2030
Maximum Depth of Cut (mm): 3.50	Maximum Depth of Cut (Decimal Inch): 0.1380
ANSI Insert Code: DNMG432	ISO Insert Code: DNMG150408
Insert Holding Method: Pin; Clamp	Clearance Code: N
Tolerance Code: M	Coating Process: CVD
Rake: Positive	Insert Length (Decimal Inch): 0.6102
Insert Length (mm): 15.50	Primary Workpiece Material Code: P; M
Secondary Workpiece Material Code: M	Iso Code: ISO 13399
Standards: ISO 13399	Chip Breaker: TF
UNSPSC Code: 23242105	Country of Origin: Israel
Insert Style: DNMG
ANSI Size Code: 432
ISO Size Code: 150408
Insert Shape: D – Diamond (Rhombic) 55-Deg
Included Angle: 55.00
Inscribed Circle (Decimal Inch): 0.5000
Inscribed Circle (Inch): 1/2
Corner Radius (Inch): 1/32
Corner Radius (Decimal Inch): 0.0315
Insert Material: Carbide
Manufacturer Grade: IC8250
Coating/Finish: TiCN; Al2O3
Relief Angle: 0.000
Insert Thickness (Inch): 3/16
Insert Thickness (Decimal Inch): 0.1874
Series: Isoturn
Chip Breaker Operation: Medium Machining; Roughing
Grade Characteristics: Steel (P) – High Wear-Resistance to High Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Negative
Hole Diameter (Decimal Inch): 0.2030
Maximum Depth of Cut (mm): 3.50
Maximum Depth of Cut (Decimal Inch): 0.1380
ANSI Insert Code: DNMG432
ISO Insert Code: DNMG150408
Insert Holding Method: Pin; Clamp
Clearance Code: N
Tolerance Code: M
Coating Process: CVD
Rake: Positive
Insert Length (Decimal Inch): 0.6102
Insert Length (mm): 15.50
Primary Workpiece Material Code: P; M
Secondary Workpiece Material Code: M
Iso Code: ISO 13399
Standards: ISO 13399
Chip Breaker: TF
UNSPSC Code: 23242105
Country of Origin: Israel
