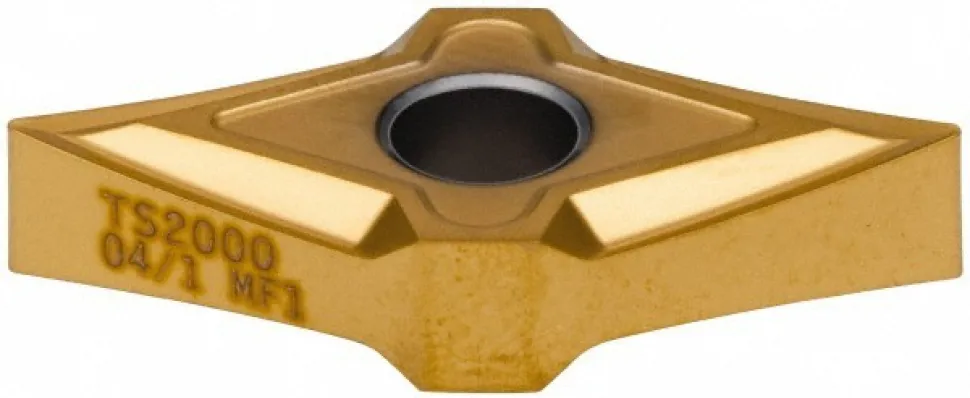

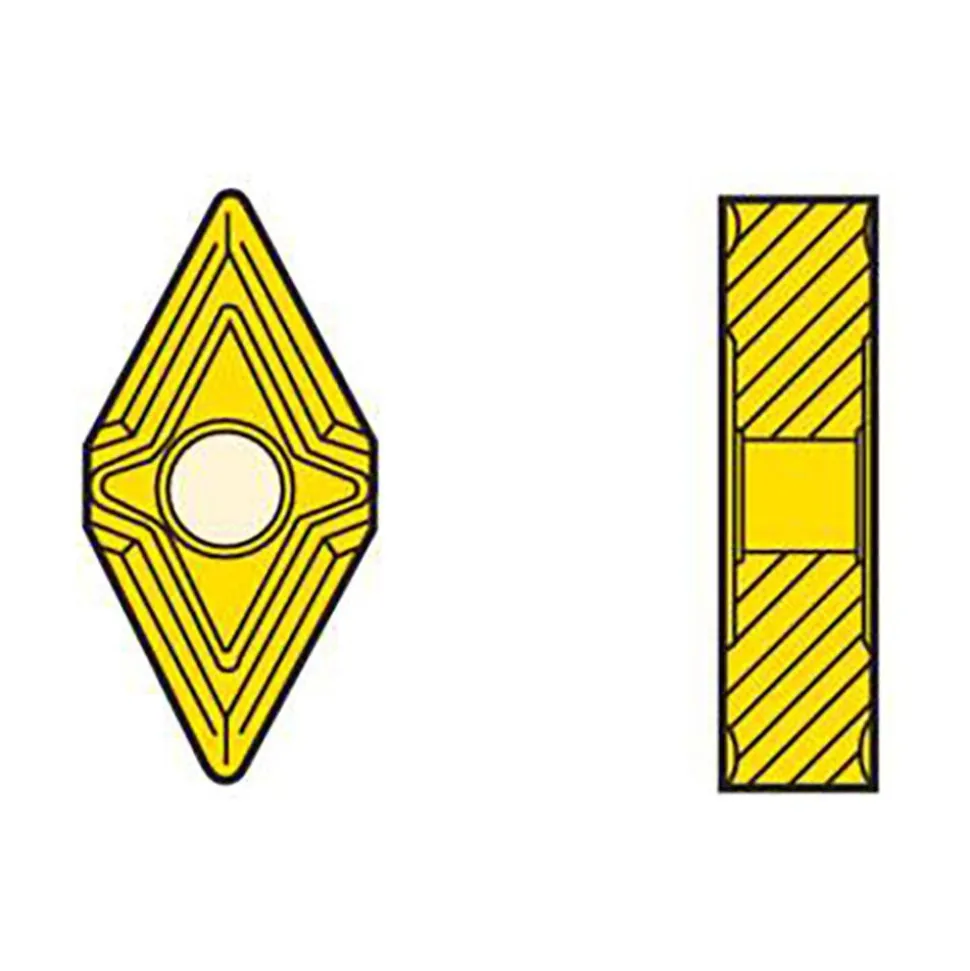

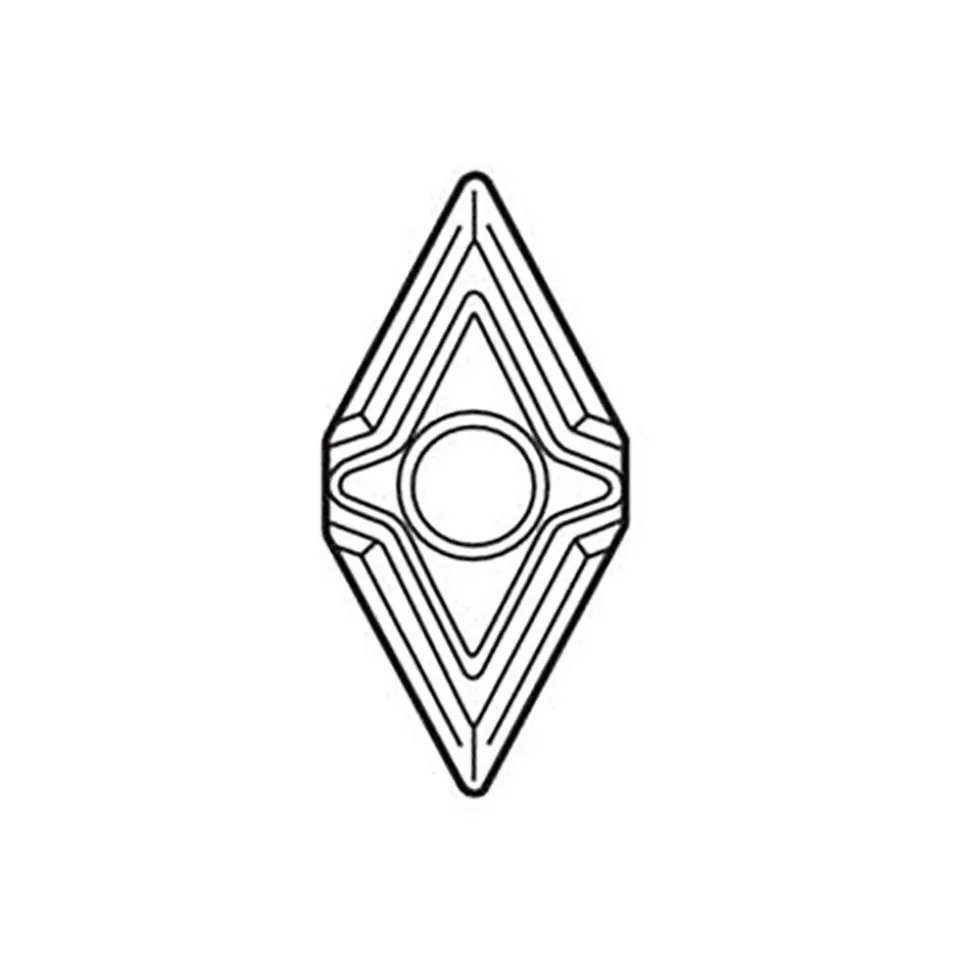

Turning Insert: DNMP 431-MF1 TS2000, Carbide
Original price was: 31,00 $.21,99 $Current price is: 21,99 $.
Specifications
| Insert Style: DNMP | ANSI Size Code: 431 |
| ISO Size Code: 150404 | Insert Shape: D – Diamond (Rhombic) 55-Deg |
| Included Angle: 55.00 | Inscribed Circle (Decimal Inch): 0.5000 |
| Inscribed Circle (Inch): 1/2 | Inscribed Circle (mm): 12.70 |
| Corner Radius (Inch): 1/64 | Corner Radius (Decimal Inch): 0.0157 |
| Insert Material: Carbide | Manufacturer Grade: TS2000 |
| Coating/Finish: TiN; TiAlN | Relief Angle: 0.000 |
| Wiper Edge: No | Insert Thickness (Inch): 3/16 |
| Insert Thickness (Decimal Inch): 0.1874 | Insert Hand: Neutral |
| Series: DNMP-MF1 | Chip Breaker Operation: Finishing |
| Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Materials (H) – Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness | Side Clearance: Negative |
| Number Of Cutting Edges: 4 | Hole Diameter (Decimal Inch): 0.2028 |
| Maximum Depth of Cut (Decimal Inch): 0.5945 | ANSI Insert Code: DNMP431 |
| ISO Insert Code: DNMP150404 | Insert Holding Method: Pin; Clamp; Lever Lock |
| Width (Inch): 1/2 | Clearance Code: N |
| Tolerance Code: M | Coating Process: PVD |
| Rake: Negative | Insert Length (Decimal Inch): 1.2204 |
| Primary Workpiece Material: Stainless Steel; Superalloys & Titanium | Primary Workpiece Material Code: P; S; H; K; M |
| Secondary Workpiece Material: Hard Material; Cast Iron; Steel | Secondary Workpiece Material Code: P; H; K |
| Iso Code: DNMG150404-MF1 | Standards: ISO; ANSI |
| Manufacturers Catalog Number: 02615901 | Material Grade: M05; S10; S15; M10 |
| Proprietary Coating Designation: Multilayer Coating | Lead Angle: 55.000 |
| Coating Classification: PVD | Chip Breaker: MF1 |
| Cutting Edge Style: Honed | Industry Standard Number: DNMP431-MF1 |
| Width (Decimal Inch – 4 Decimals): 0.5000 | Multi-Use Tool: Yes |
| Full Radius: No | Multi-Use Application: Facing; Turning; Back Turning; Boring |
| UNSPSC Code: 23242105 | Country of Origin: Sweden |
| Insert Style: DNMP | |
| ANSI Size Code: 431 | |
| ISO Size Code: 150404 | |
| Insert Shape: D – Diamond (Rhombic) 55-Deg | |
| Included Angle: 55.00 | |
| Inscribed Circle (Decimal Inch): 0.5000 | |
| Inscribed Circle (Inch): 1/2 | |
| Inscribed Circle (mm): 12.70 | |
| Corner Radius (Inch): 1/64 | |
| Corner Radius (Decimal Inch): 0.0157 | |
| Insert Material: Carbide | |
| Manufacturer Grade: TS2000 | |
| Coating/Finish: TiN; TiAlN | |
| Relief Angle: 0.000 | |
| Wiper Edge: No | |
| Insert Thickness (Inch): 3/16 | |
| Insert Thickness (Decimal Inch): 0.1874 | |
| Insert Hand: Neutral | |
| Series: DNMP-MF1 | |
| Chip Breaker Operation: Finishing | |
| Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Materials (H) – Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness | |
| Side Clearance: Negative | |
| Number Of Cutting Edges: 4 | |
| Hole Diameter (Decimal Inch): 0.2028 | |
| Maximum Depth of Cut (Decimal Inch): 0.5945 | |
| ANSI Insert Code: DNMP431 | |
| ISO Insert Code: DNMP150404 | |
| Insert Holding Method: Pin; Clamp; Lever Lock | |
| Width (Inch): 1/2 | |
| Clearance Code: N | |
| Tolerance Code: M | |
| Coating Process: PVD | |
| Rake: Negative | |
| Insert Length (Decimal Inch): 1.2204 | |
| Primary Workpiece Material: Stainless Steel; Superalloys & Titanium | |
| Primary Workpiece Material Code: P; S; H; K; M | |
| Secondary Workpiece Material: Hard Material; Cast Iron; Steel | |
| Secondary Workpiece Material Code: P; H; K | |
| Iso Code: DNMG150404-MF1 | |
| Standards: ISO; ANSI | |
| Manufacturers Catalog Number: 02615901 | |
| Material Grade: M05; S10; S15; M10 | |
| Proprietary Coating Designation: Multilayer Coating | |
| Lead Angle: 55.000 | |
| Coating Classification: PVD | |
| Chip Breaker: MF1 | |
| Cutting Edge Style: Honed | |
| Industry Standard Number: DNMP431-MF1 | |
| Width (Decimal Inch – 4 Decimals): 0.5000 | |
| Multi-Use Tool: Yes | |
| Full Radius: No | |
| Multi-Use Application: Facing; Turning; Back Turning; Boring | |
| UNSPSC Code: 23242105 | |
| Country of Origin: Sweden |
| MSC# | 72493281 |
| Mfr# | 02615901 |
| Big Book# | 777 |
