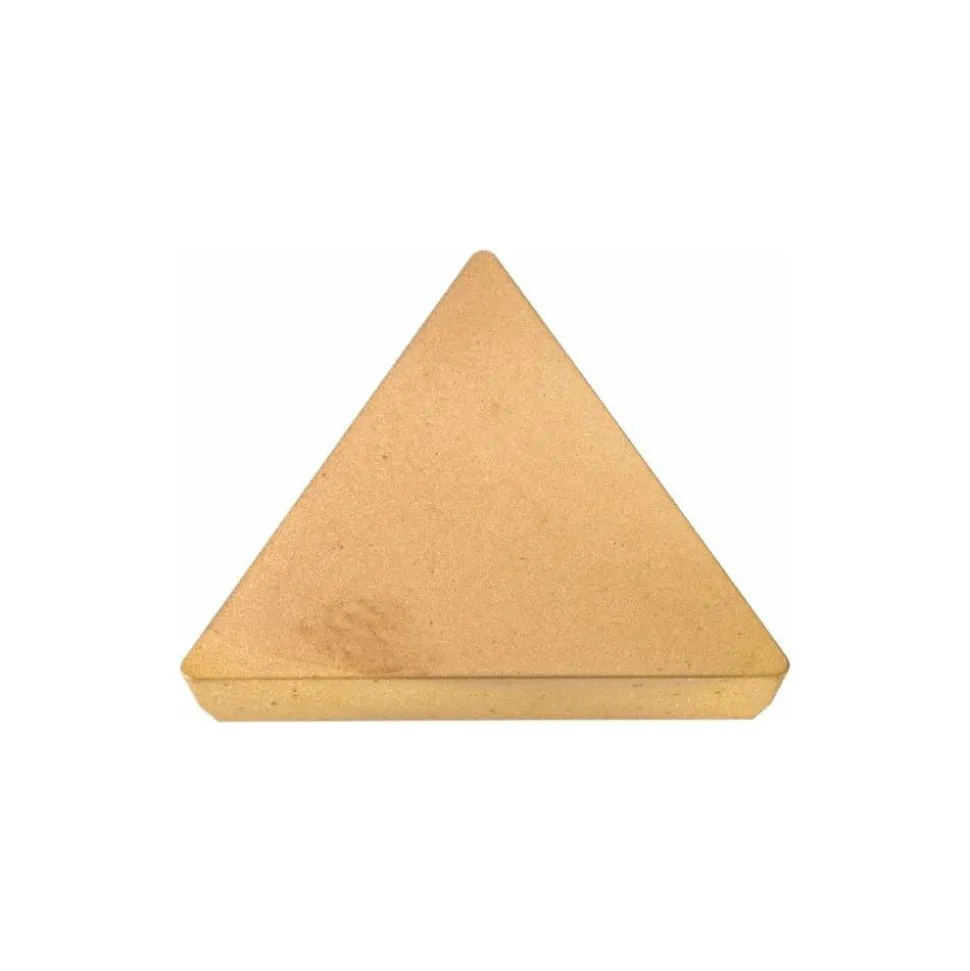

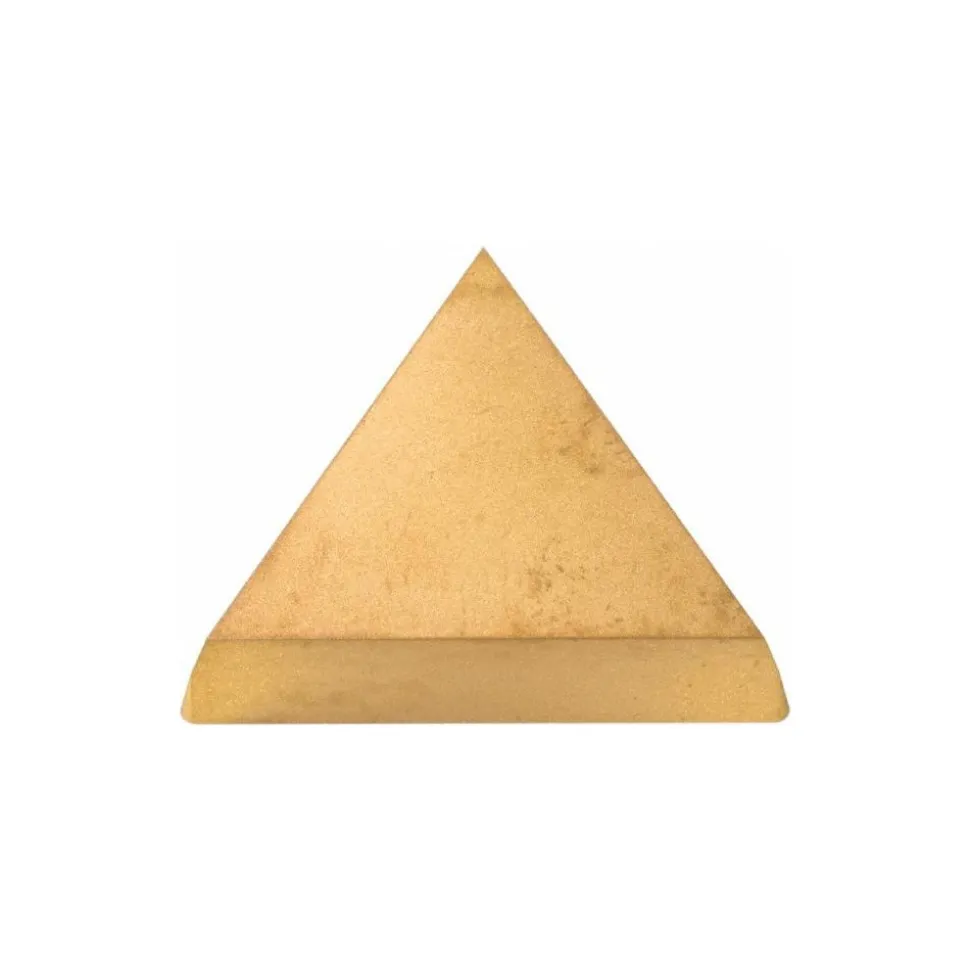

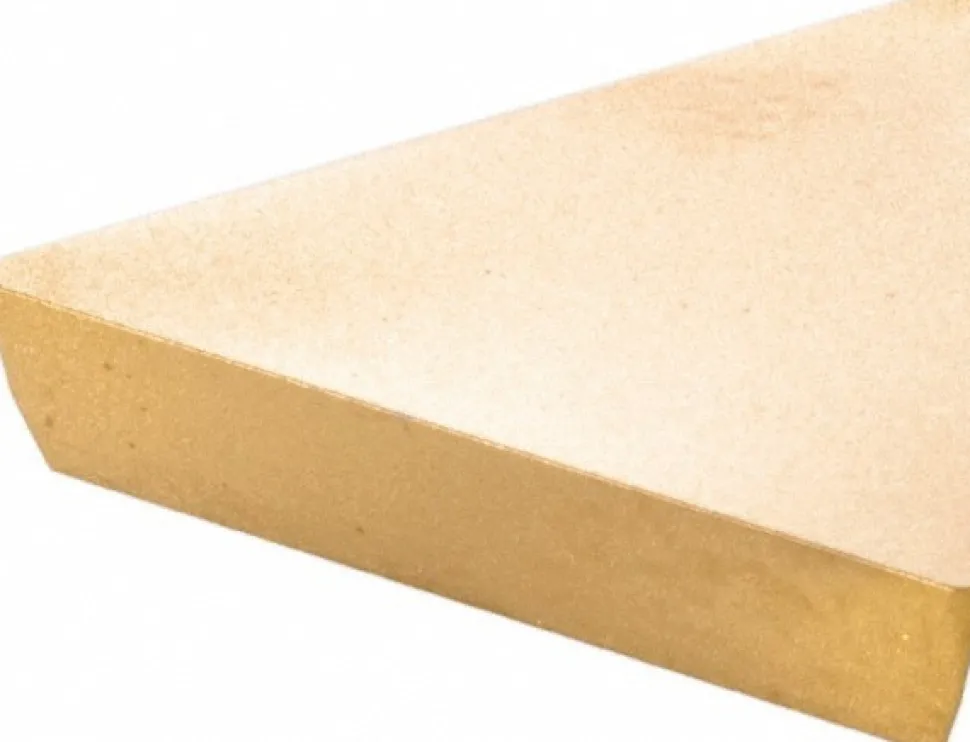

Turning Insert: TPG321 TCN55, Carbide

15,89 $

SKU: SKUc1k25mte9D Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: Value Collection Brand: Value Collection

Description
Reviews (0)

Specifications

Insert Style: TPG	ANSI Size Code: 321
ISO Size Code: 160304	Insert Shape: T – Triangle
Included Angle: 60.00	Inscribed Circle (Decimal Inch): 0.3750
Inscribed Circle (Inch): 3/8	Corner Radius (Inch): 1/64
Corner Radius (Decimal Inch): 0.0156	Insert Material: Carbide
Manufacturer Grade: TCN55	Coating/Finish: TiN; TiC
Relief Angle: 11.000	Insert Thickness (Inch): 1/8
Insert Thickness (Decimal Inch): 0.1250	Chip Breaker Operation: Flat Top
Side Clearance: Positive	ANSI Insert Code: TPG321
ISO Insert Code: TPG160304	Insert Holding Method: Clamp
Clearance Code: P	Tolerance Code: G
Coating Process: CVD	Insert Length (mm): 16.50
Primary Workpiece Material Code: P; M	Iso Code: TPGN160304
Material Grade: C5; C6; C7	Chip Breaker: N
UNSPSC Code: 23242105	Country of Origin: Portugal
Insert Style: TPG
ANSI Size Code: 321
ISO Size Code: 160304
Insert Shape: T – Triangle
Included Angle: 60.00
Inscribed Circle (Decimal Inch): 0.3750
Inscribed Circle (Inch): 3/8
Corner Radius (Inch): 1/64
Corner Radius (Decimal Inch): 0.0156
Insert Material: Carbide
Manufacturer Grade: TCN55
Coating/Finish: TiN; TiC
Relief Angle: 11.000
Insert Thickness (Inch): 1/8
Insert Thickness (Decimal Inch): 0.1250
Chip Breaker Operation: Flat Top
Side Clearance: Positive
ANSI Insert Code: TPG321
ISO Insert Code: TPG160304
Insert Holding Method: Clamp
Clearance Code: P
Tolerance Code: G
Coating Process: CVD
Insert Length (mm): 16.50
Primary Workpiece Material Code: P; M
Iso Code: TPGN160304
Material Grade: C5; C6; C7
Chip Breaker: N
UNSPSC Code: 23242105
Country of Origin: Portugal
