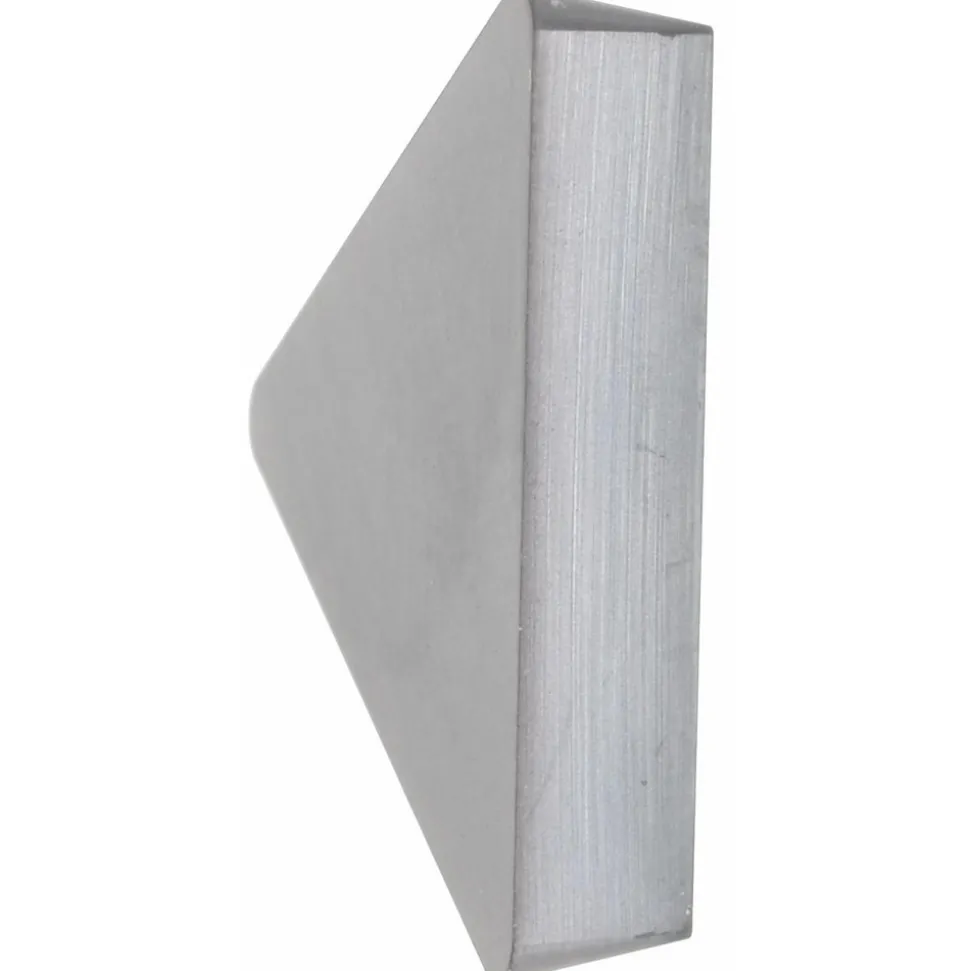

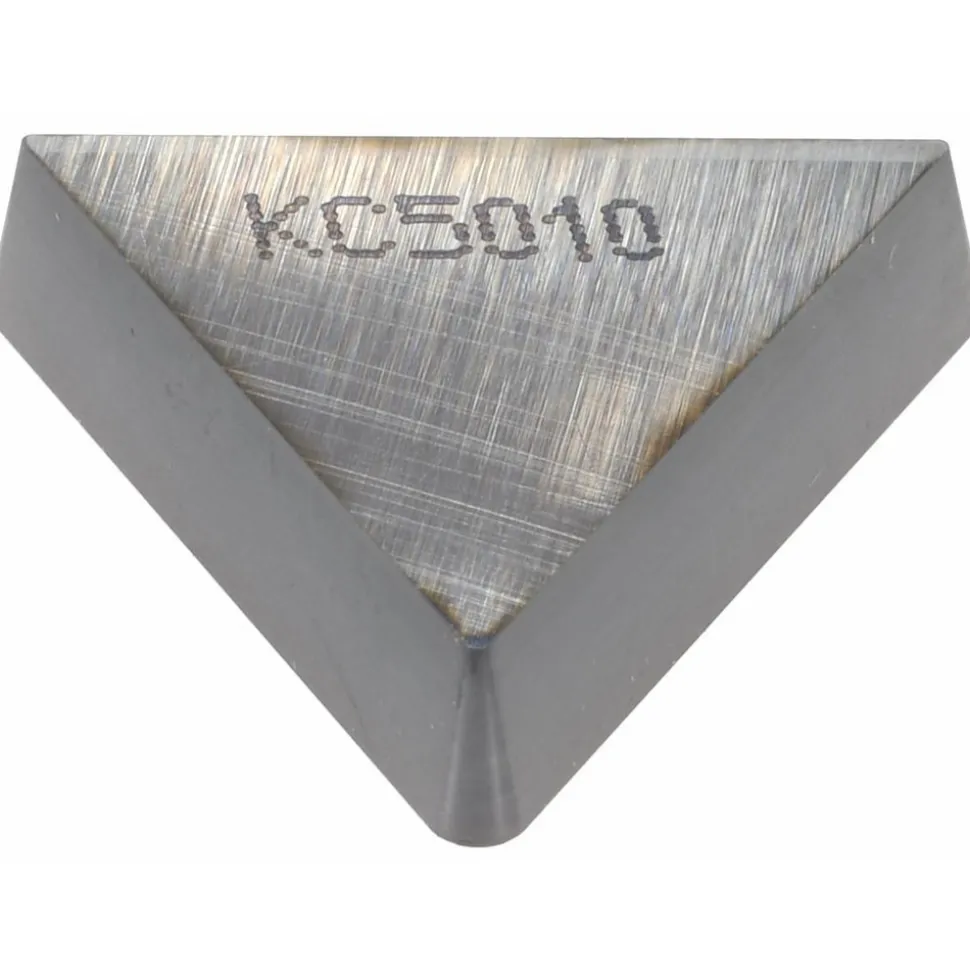

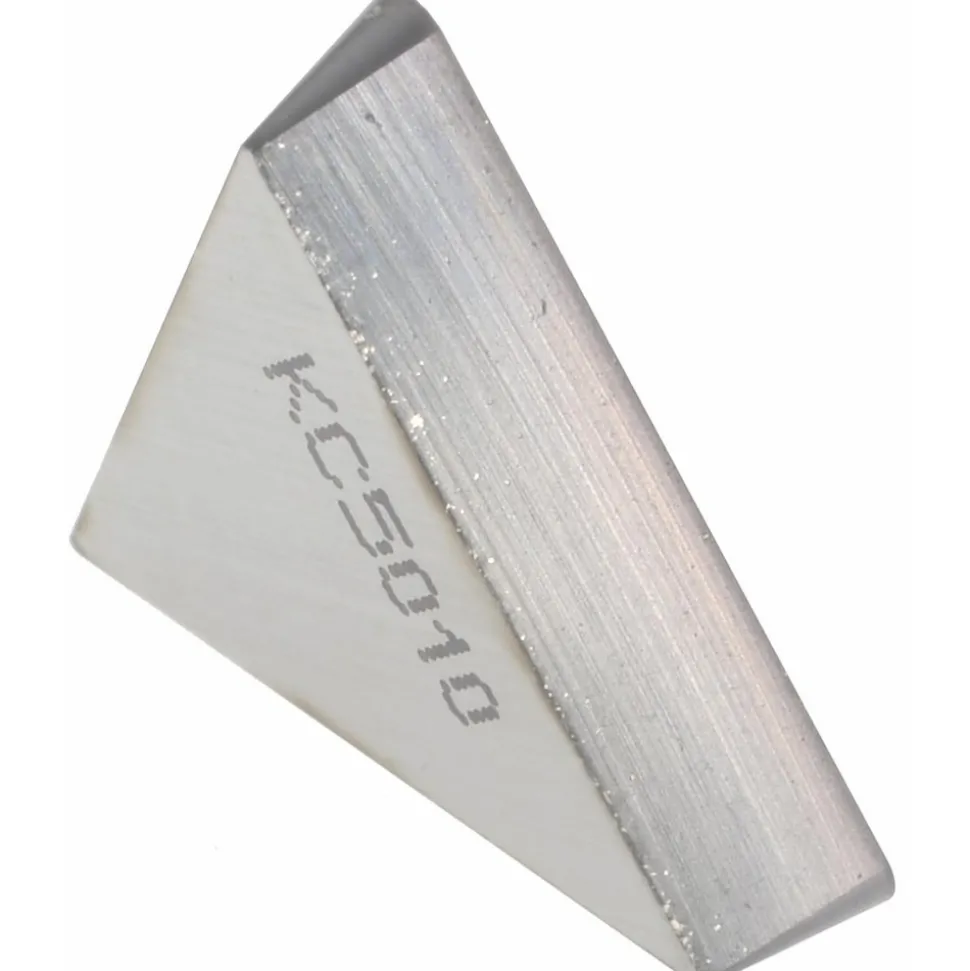

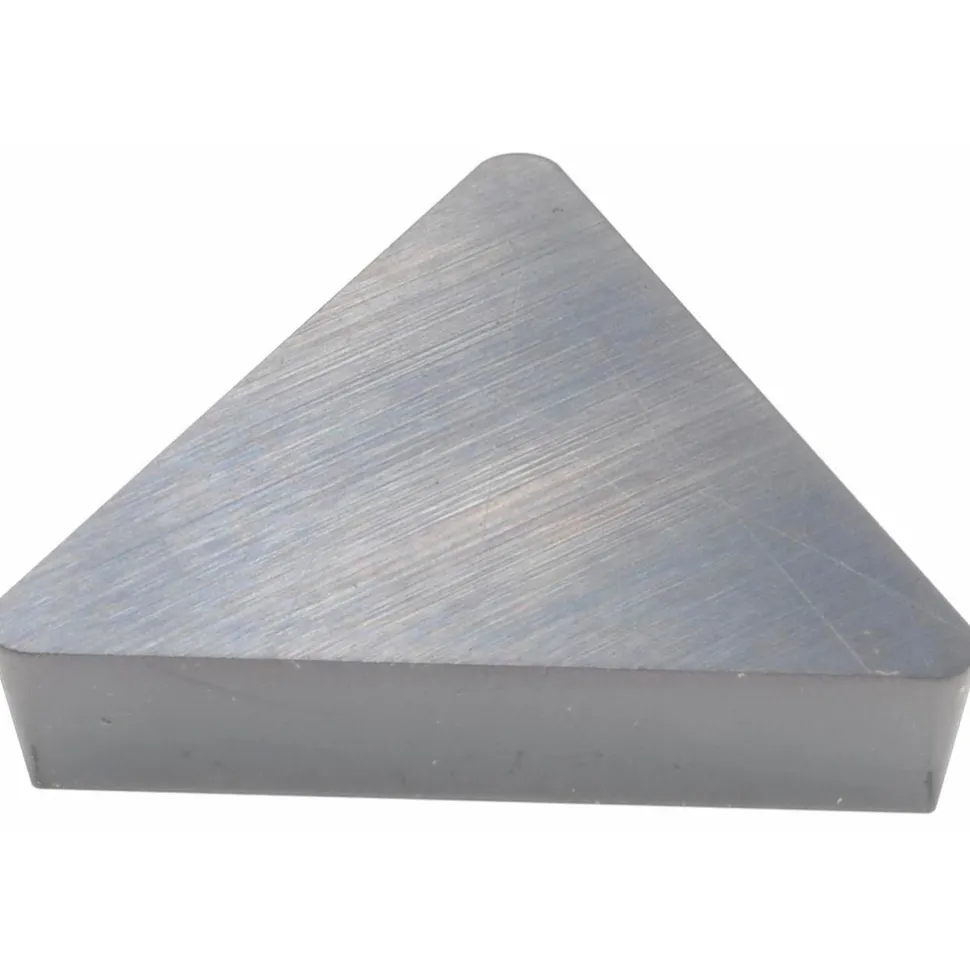

Turning Insert: TPG322 KC5010, Carbide

Original price was: 31,00 $.Current price is: 23,89 $.

SKU: SKUWxTfothxtI Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: Kennametal Brand: Kennametal

Description
Reviews (0)

Specifications

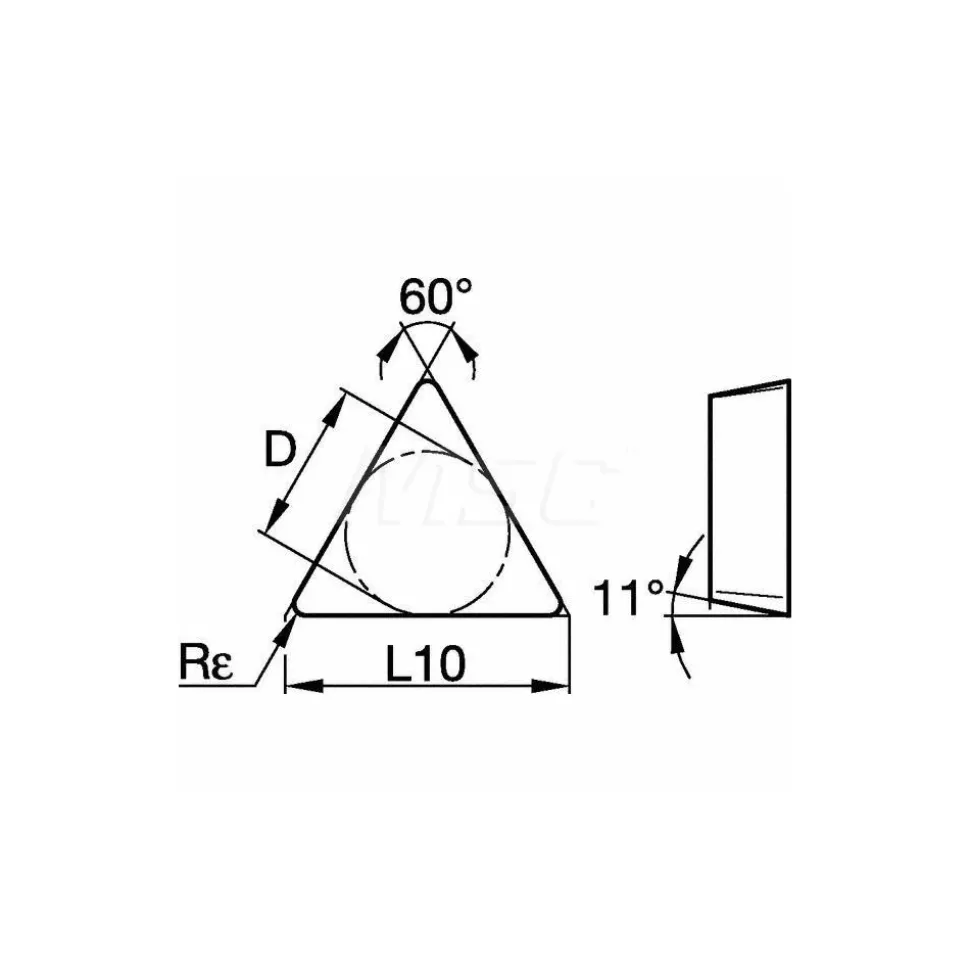

Insert Style: TPG	ANSI Size Code: 322
ISO Size Code: 160308	Insert Shape: T – Triangle
Included Angle: 60.00	Inscribed Circle (Decimal Inch): 0.3750
Inscribed Circle (Inch): 3/8	Corner Radius (Inch): 1/32
Corner Radius (Decimal Inch): 0.0313	Insert Material: Carbide
Manufacturer Grade: KC5010	Coating/Finish: TiAlN
Relief Angle: 11.000	Wiper Edge: No
Insert Thickness (Inch): 1/8	Insert Thickness (Decimal Inch): 0.1250
Insert Hand: Neutral	Series: KENDEX
Chip Breaker Operation: Flat Top	Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Positive	Number Of Cutting Edges: 3
Maximum Depth of Cut (mm): 1.25	Maximum Depth of Cut (Decimal Inch): 0.0492
ANSI Insert Code: TPG322	ISO Insert Code: TPG160308
Insert Holding Method: Clamp	Clearance Code: P
Tolerance Code: G	Coating Process: PVD
Rake: Positive	Insert Length (Decimal Inch): 0.6495
Insert Length (mm): 16.50	Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel
Primary Workpiece Material Code: P; S; K; M; N	Secondary Workpiece Material Code: P; S; N
Standards: ISO; ANSI	Manufacturers Catalog Number: 1865535
Material Grade: C3; C4	Coating Classification: PVD
Chip Breaker: Flat Top	Rake Angle: 0
Cutting Edge Style: Honed	Industry Standard Number: TPG322
Width (Decimal Inch – 4 Decimals): 0.6495	Multi-Use Tool: Yes
Full Radius: No	Multi-Use Application: Facing; Turning; Boring
UNSPSC Code: 23242105
Insert Style: TPG
ANSI Size Code: 322
ISO Size Code: 160308
Insert Shape: T – Triangle
Included Angle: 60.00
Inscribed Circle (Decimal Inch): 0.3750
Inscribed Circle (Inch): 3/8
Corner Radius (Inch): 1/32
Corner Radius (Decimal Inch): 0.0313
Insert Material: Carbide
Manufacturer Grade: KC5010
Coating/Finish: TiAlN
Relief Angle: 11.000
Wiper Edge: No
Insert Thickness (Inch): 1/8
Insert Thickness (Decimal Inch): 0.1250
Insert Hand: Neutral
Series: KENDEX
Chip Breaker Operation: Flat Top
Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Positive
Number Of Cutting Edges: 3
Maximum Depth of Cut (mm): 1.25
Maximum Depth of Cut (Decimal Inch): 0.0492
ANSI Insert Code: TPG322
ISO Insert Code: TPG160308
Insert Holding Method: Clamp
Clearance Code: P
Tolerance Code: G
Coating Process: PVD
Rake: Positive
Insert Length (Decimal Inch): 0.6495
Insert Length (mm): 16.50
Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel
Primary Workpiece Material Code: P; S; K; M; N
Secondary Workpiece Material Code: P; S; N
Standards: ISO; ANSI
Manufacturers Catalog Number: 1865535
Material Grade: C3; C4
Coating Classification: PVD
Chip Breaker: Flat Top
Rake Angle: 0
Cutting Edge Style: Honed
Industry Standard Number: TPG322
Width (Decimal Inch – 4 Decimals): 0.6495
Multi-Use Tool: Yes
Full Radius: No
Multi-Use Application: Facing; Turning; Boring
UNSPSC Code: 23242105
