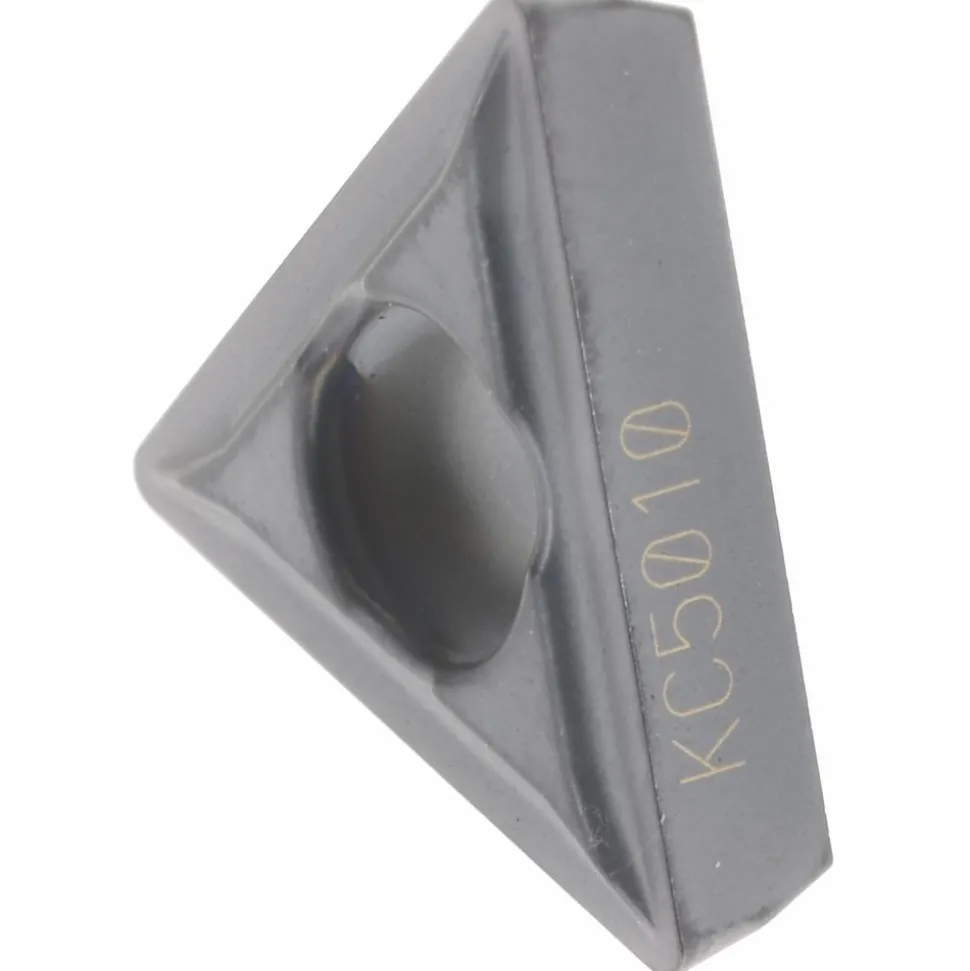

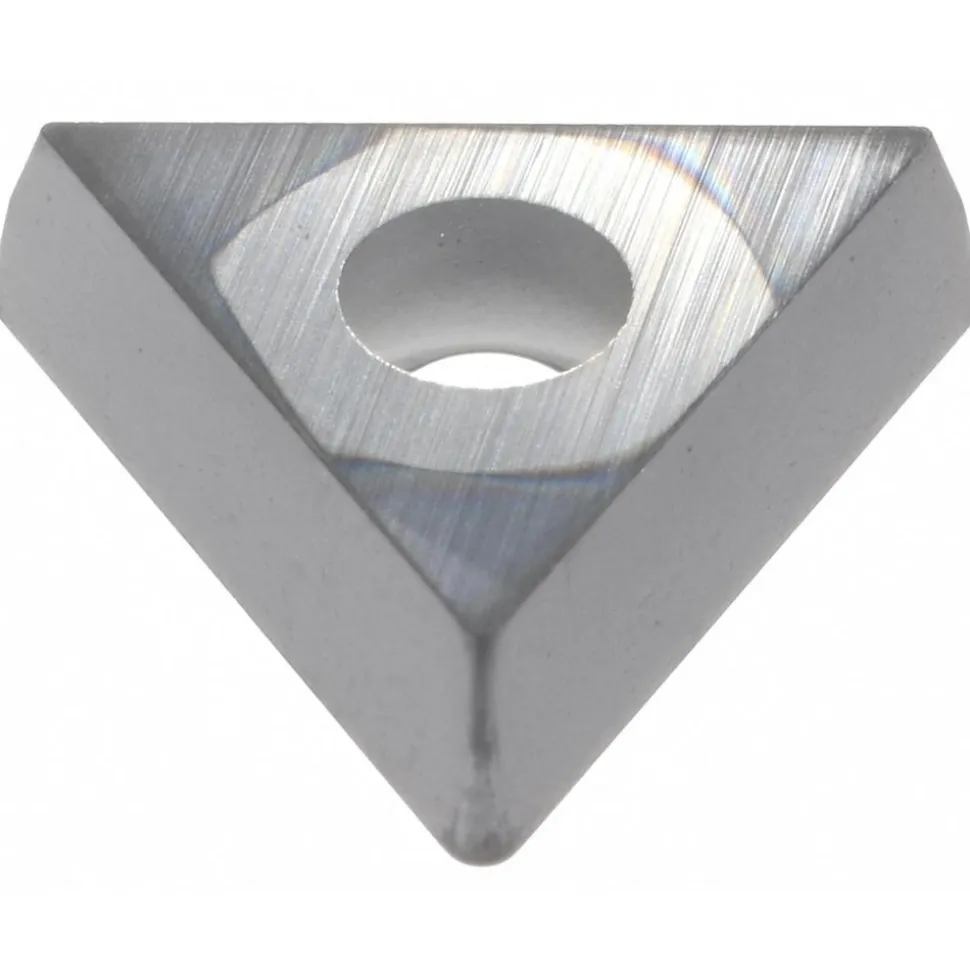

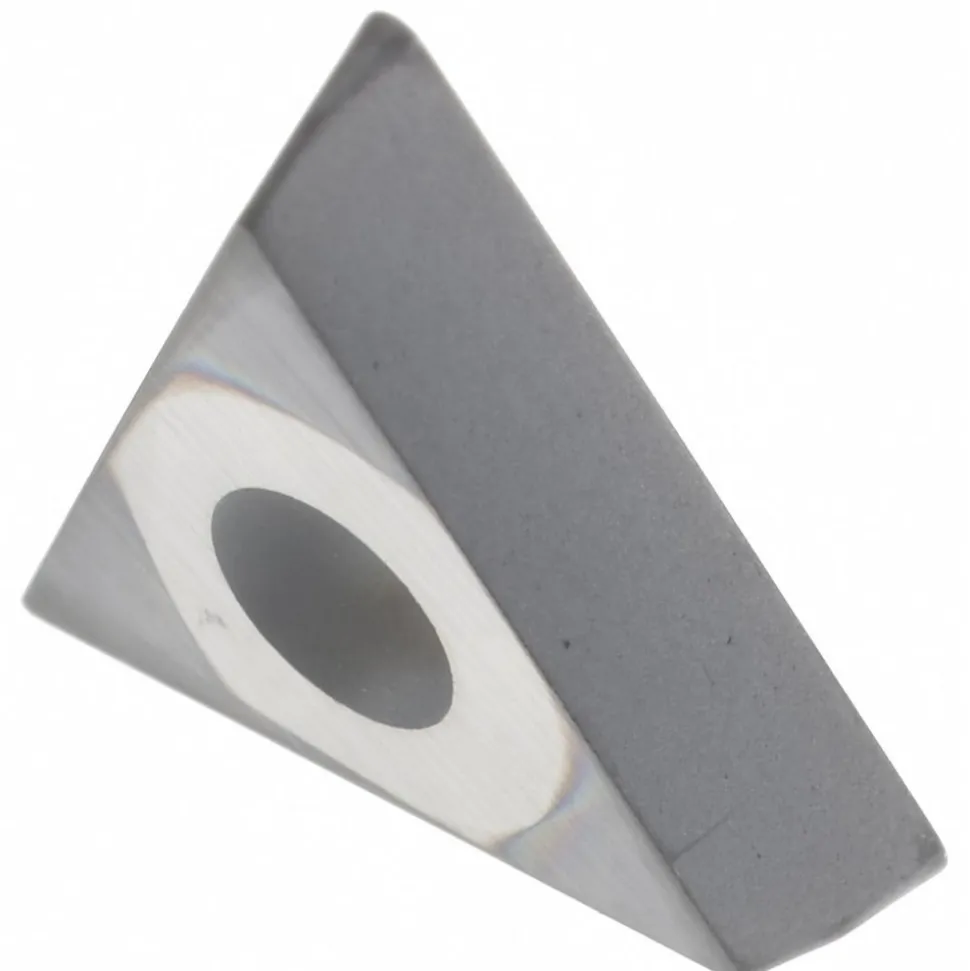

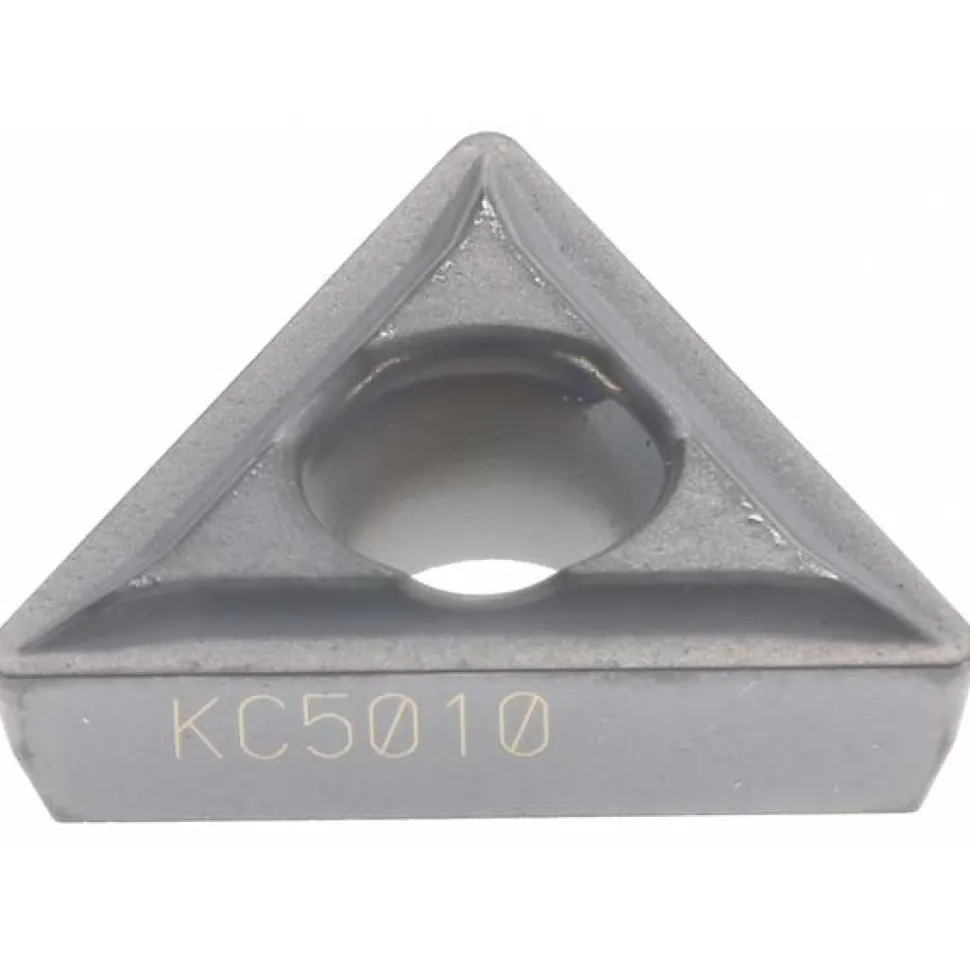

Turning Insert: TPMT2151LF KC5010, Carbide

Turning Insert: TPMT2151LF KC5010, Carbide

24,89 $

SKU: SKUwUPiQORtxo Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: Kennametal Brand: Kennametal

Description
Reviews (0)

Specifications

Insert Style: TPMT	ANSI Size Code: 21.51
ISO Size Code: 110204	Insert Shape: T – Triangle
Included Angle: 60.00	Inscribed Circle (Decimal Inch): 0.2500
Inscribed Circle (Inch): 1/4	Corner Radius (Inch): 1/64
Corner Radius (Decimal Inch): 0.0156	Insert Material: Carbide
Manufacturer Grade: KC5010	Coating/Finish: TiAlN
Relief Angle: 11.000	Wiper Edge: No
Insert Thickness (Inch): 3/32	Insert Thickness (Decimal Inch): 0.0938
Insert Hand: Neutral	Series: Screw-On
Chip Breaker Operation: Light Machining; Finishing	Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Positive	Number Of Cutting Edges: 3
Hole Diameter (Decimal Inch): 0.1142	Hole Diameter (mm): 2.80
Maximum Depth of Cut (mm): 1.25	Maximum Depth of Cut (Decimal Inch): 0.0492
ANSI Insert Code: TPMT21.51	ISO Insert Code: TPMT110204
Insert Holding Method: Screw	Clearance Code: P
Tolerance Code: M	Coating Process: PVD
Rake: Positive	Insert Length (Decimal Inch): 0.4331
Insert Length (mm): 11.00	Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel
Primary Workpiece Material Code: P; S; K; M; N	Secondary Workpiece Material Code: P; S; N
Standards: ISO; ANSI	Manufacturers Catalog Number: 1845219
Material Grade: C3; C4	Coating Classification: PVD
Chip Breaker: LF	Rake Angle: 5
Cutting Edge Style: Honed	Industry Standard Number: TPMT2151LF
Width (Decimal Inch – 4 Decimals): 0.4331	Multi-Use Tool: Yes
Full Radius: No	Multi-Use Application: Facing; Turning; Boring
UNSPSC Code: 23242105
Insert Style: TPMT
ANSI Size Code: 21.51
ISO Size Code: 110204
Insert Shape: T – Triangle
Included Angle: 60.00
Inscribed Circle (Decimal Inch): 0.2500
Inscribed Circle (Inch): 1/4
Corner Radius (Inch): 1/64
Corner Radius (Decimal Inch): 0.0156
Insert Material: Carbide
Manufacturer Grade: KC5010
Coating/Finish: TiAlN
Relief Angle: 11.000
Wiper Edge: No
Insert Thickness (Inch): 3/32
Insert Thickness (Decimal Inch): 0.0938
Insert Hand: Neutral
Series: Screw-On
Chip Breaker Operation: Light Machining; Finishing
Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Positive
Number Of Cutting Edges: 3
Hole Diameter (Decimal Inch): 0.1142
Hole Diameter (mm): 2.80
Maximum Depth of Cut (mm): 1.25
Maximum Depth of Cut (Decimal Inch): 0.0492
ANSI Insert Code: TPMT21.51
ISO Insert Code: TPMT110204
Insert Holding Method: Screw
Clearance Code: P
Tolerance Code: M
Coating Process: PVD
Rake: Positive
Insert Length (Decimal Inch): 0.4331
Insert Length (mm): 11.00
Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel
Primary Workpiece Material Code: P; S; K; M; N
Secondary Workpiece Material Code: P; S; N
Standards: ISO; ANSI
Manufacturers Catalog Number: 1845219
Material Grade: C3; C4
Coating Classification: PVD
Chip Breaker: LF
Rake Angle: 5
Cutting Edge Style: Honed
Industry Standard Number: TPMT2151LF
Width (Decimal Inch – 4 Decimals): 0.4331
Multi-Use Tool: Yes
Full Radius: No
Multi-Use Application: Facing; Turning; Boring
UNSPSC Code: 23242105
