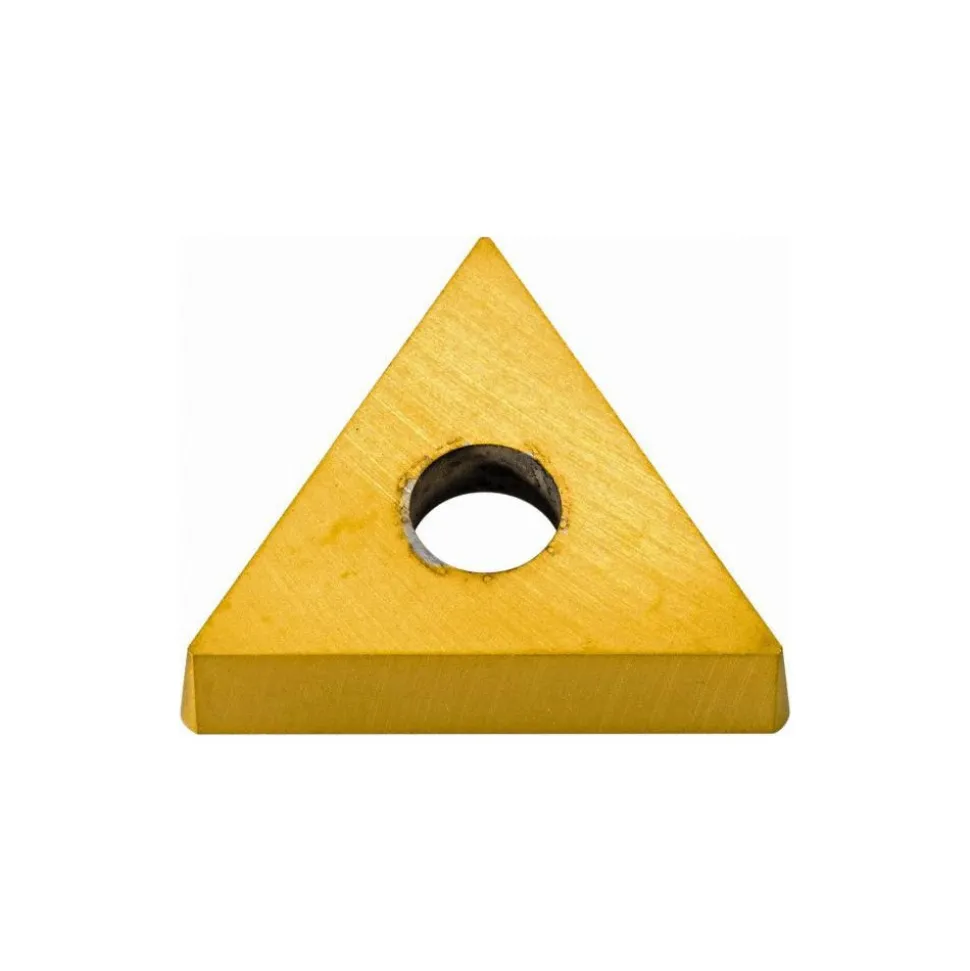

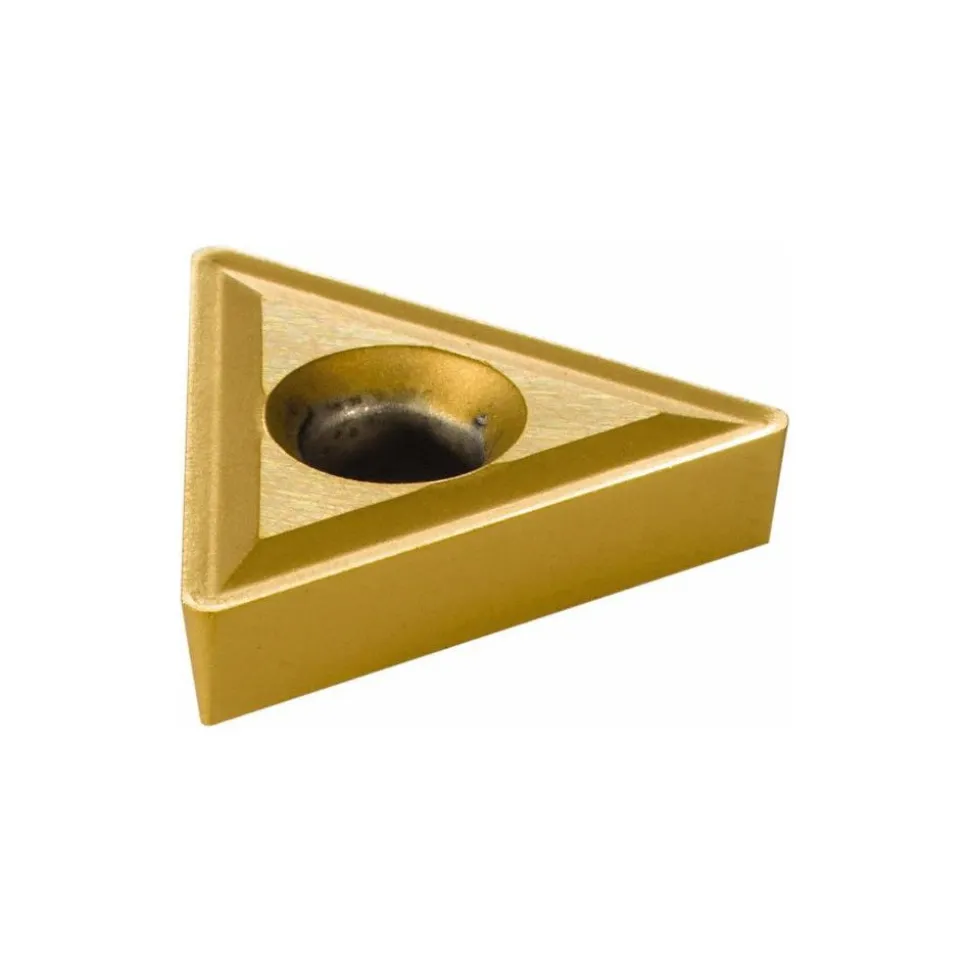

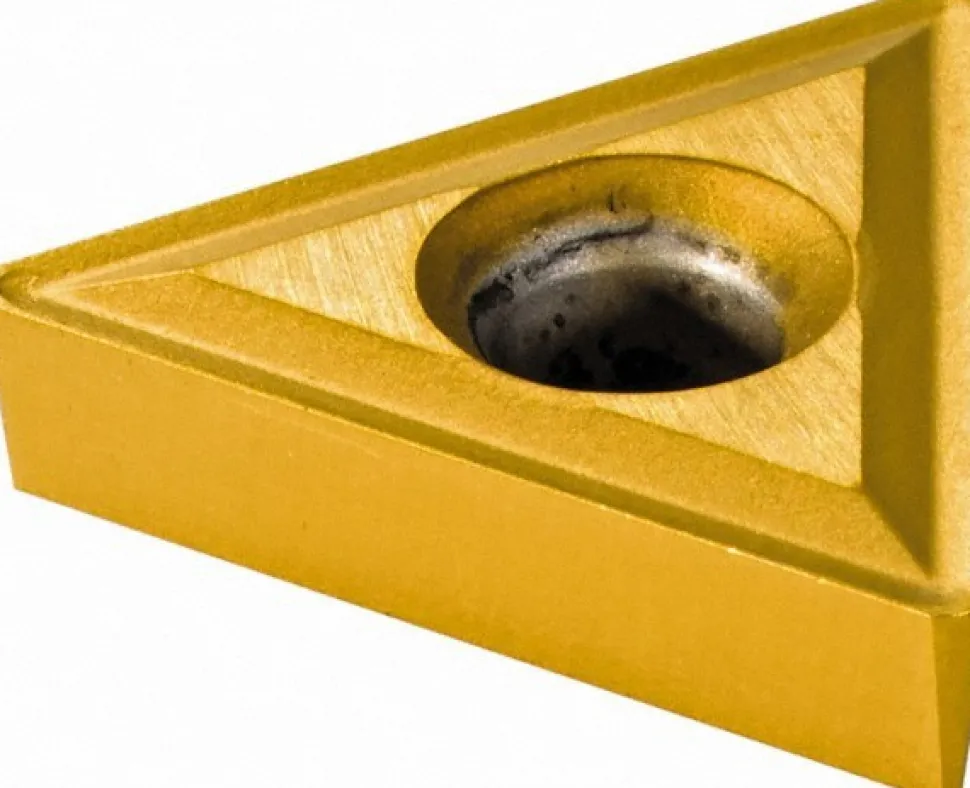

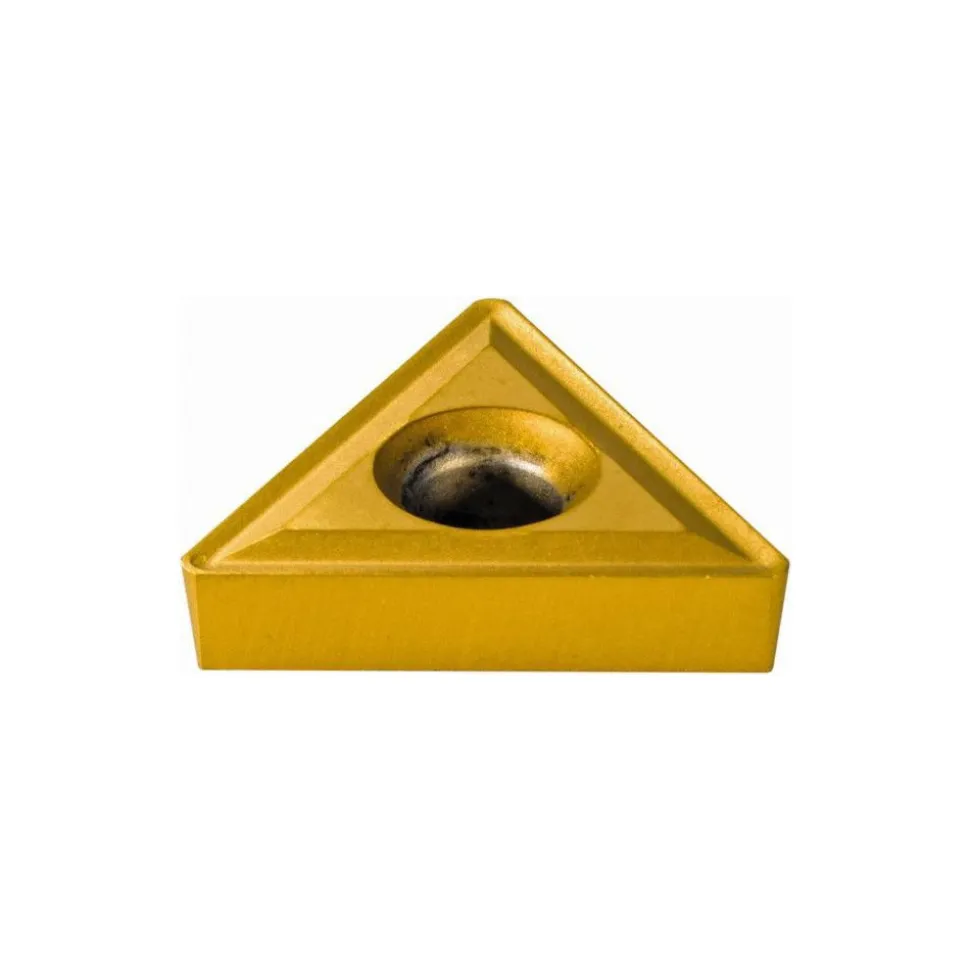

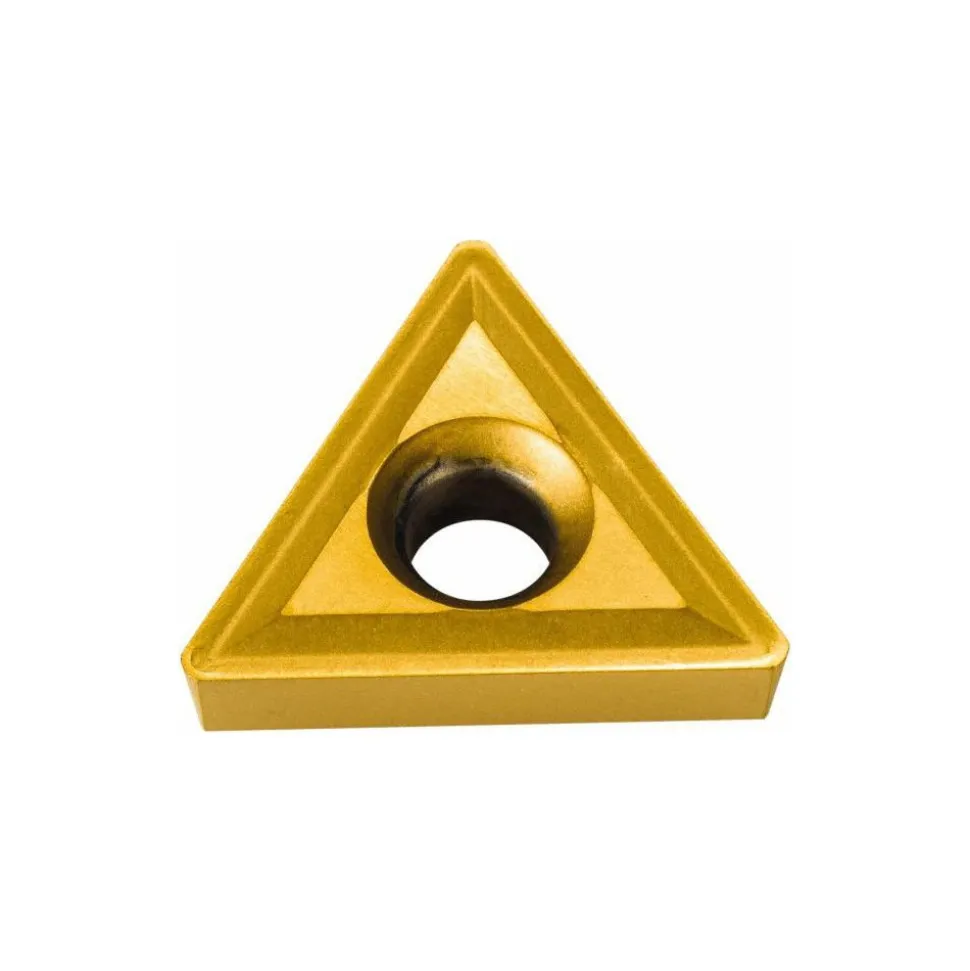

Turning Insert: TT322 TCN55, Carbide

9,89 $

Specifications

Insert Style: TT	ANSI Size Code: 322
ISO Size Code: 160308	Insert Shape: T – Triangle
Included Angle: 60.00	Inscribed Circle (Decimal Inch): 0.3750
Inscribed Circle (Inch): 3/8	Corner Radius (Inch): 1/32
Corner Radius (Decimal Inch): 0.0312	Insert Material: Carbide
Manufacturer Grade: TCN55	Coating/Finish: TiCN; TiN; TiC
Relief Angle: 11.000	Insert Thickness (Inch): 1/8
Insert Thickness (Decimal Inch): 0.1250	Side Clearance: Positive
Hole Diameter (Decimal Inch): 0.1500	Hole Diameter (mm): 3.81
ANSI Insert Code: TT322	ISO Insert Code: TT160308
Insert Holding Method: Screw	Coating Process: CVD
Primary Workpiece Material Code: P; M	Material Grade: C5
UNSPSC Code: 23242105
Insert Style: TT
ANSI Size Code: 322
ISO Size Code: 160308
Insert Shape: T – Triangle
Included Angle: 60.00
Inscribed Circle (Decimal Inch): 0.3750
Inscribed Circle (Inch): 3/8
Corner Radius (Inch): 1/32
Corner Radius (Decimal Inch): 0.0312
Insert Material: Carbide
Manufacturer Grade: TCN55
Coating/Finish: TiCN; TiN; TiC
Relief Angle: 11.000
Insert Thickness (Inch): 1/8
Insert Thickness (Decimal Inch): 0.1250
Side Clearance: Positive
Hole Diameter (Decimal Inch): 0.1500
Hole Diameter (mm): 3.81
ANSI Insert Code: TT322
ISO Insert Code: TT160308
Insert Holding Method: Screw
Coating Process: CVD
Primary Workpiece Material Code: P; M
Material Grade: C5
UNSPSC Code: 23242105
