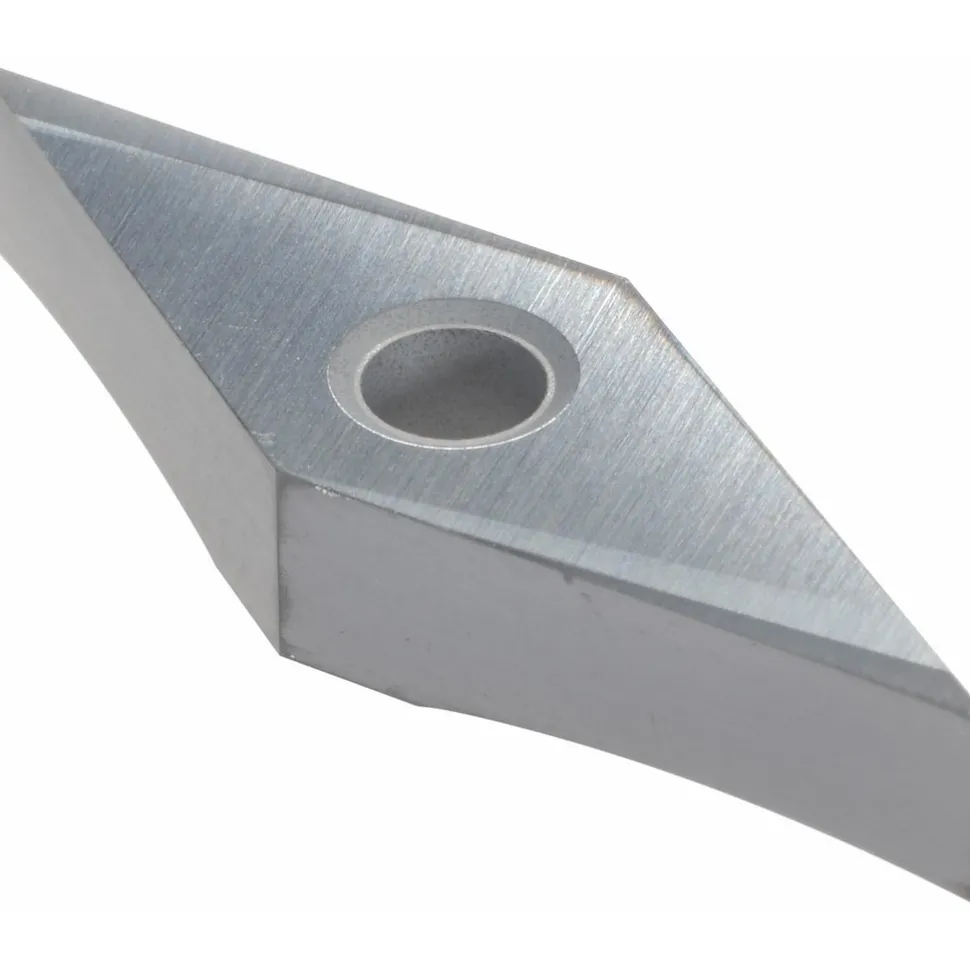

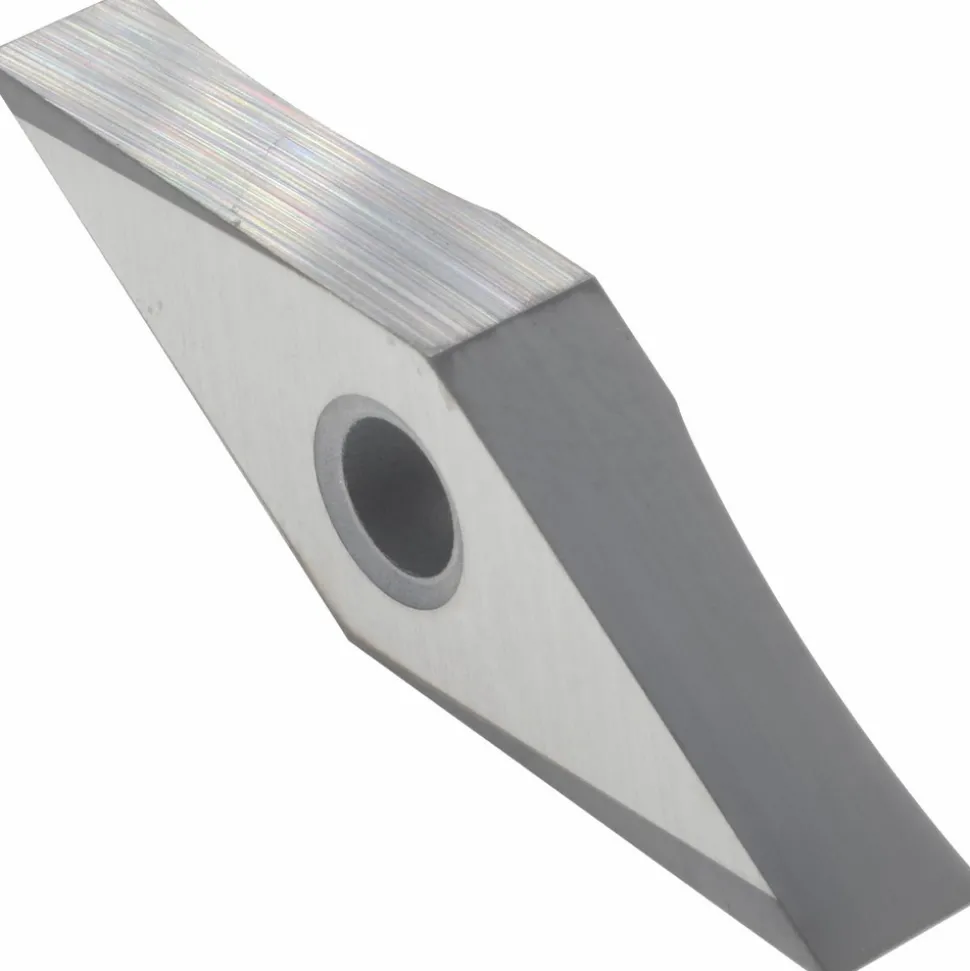

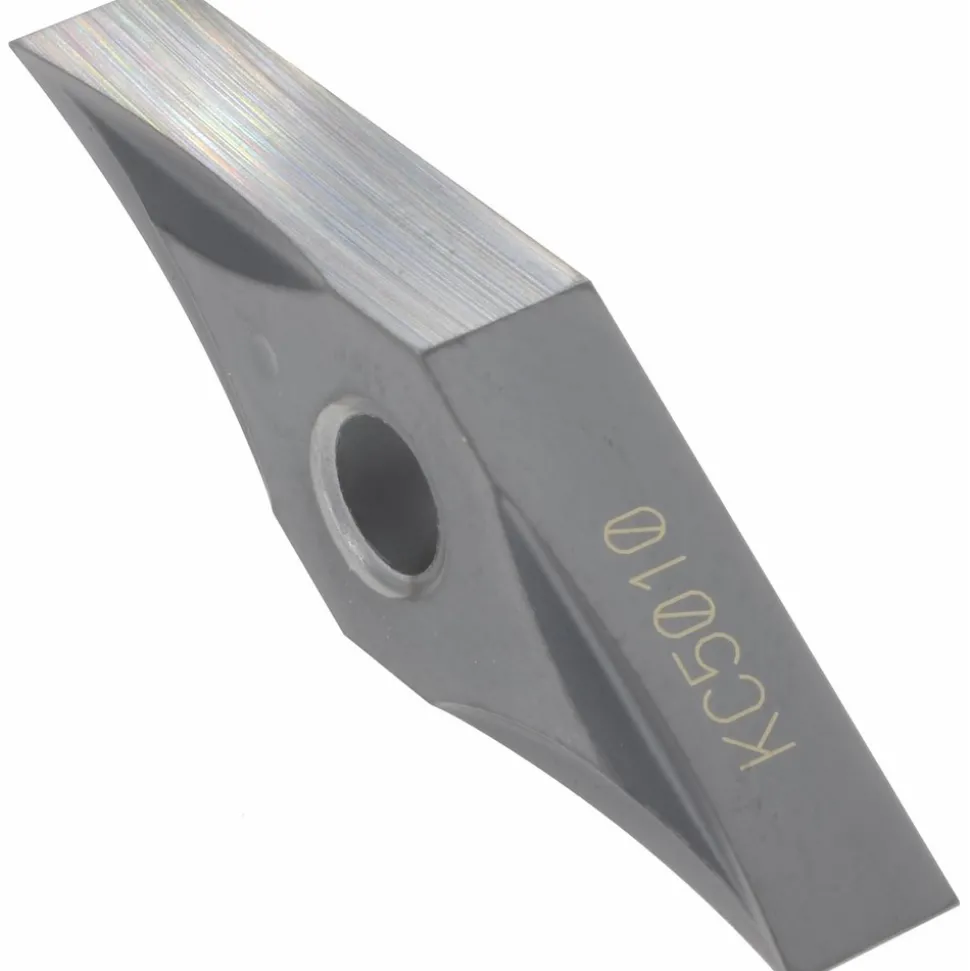

Turning Insert: VNGP330 KC5010, Carbide
Original price was: 35,00 $.26,89 $Current price is: 26,89 $.
Specifications
| Insert Style: VNGP | ANSI Size Code: 3302 |
| ISO Size Code: 160401 | Insert Shape: V – Diamond (Rhombic) 35-Deg |
| Included Angle: 35.00 | Inscribed Circle (Decimal Inch): 0.3750 |
| Inscribed Circle (Inch): 3/8 | Corner Radius (Decimal Inch): 0.0039 |
| Insert Material: Carbide | Manufacturer Grade: KC5010 |
| Coating/Finish: TiAlN | Relief Angle: 0.000 |
| Wiper Edge: No | Insert Thickness (Inch): 3/16 |
| Insert Thickness (Decimal Inch): 0.1875 | Insert Hand: Neutral |
| Series: KENLOC | Chip Breaker Operation: Medium Machining |
| Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness | Side Clearance: Negative |
| Number Of Cutting Edges: 4 | Hole Diameter (Decimal Inch): 0.1500 |
| Hole Diameter (mm): 3.81 | Maximum Depth of Cut (mm): 1.25 |
| Maximum Depth of Cut (Decimal Inch): 0.0492 | ANSI Insert Code: VNGP3302 |
| ISO Insert Code: VNGP160401 | Insert Holding Method: Pin; Clamp |
| Width (Inch): 3/8 | Clearance Code: N |
| Tolerance Code: G | Coating Process: PVD |
| Rake: Negative | Insert Length (Decimal Inch): 1.3076 |
| Insert Length (mm): 16.61 | Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code: P; S; K; M; N | Secondary Workpiece Material Code: P; S; N |
| Standards: ISO; ANSI | Manufacturers Catalog Number: 1868464 |
| Material Grade: C3; C4 | Coating Classification: PVD |
| Chip Breaker: Common | Rake Angle: 10 |
| Cutting Edge Style: Honed | Industry Standard Number: VNGP3302 |
| Width (Decimal Inch – 4 Decimals): 0.3750 | Multi-Use Tool: Yes |
| Full Radius: No | Multi-Use Application: Back Boring; Facing; Turning; Back Turning; Boring |
| UNSPSC Code: 23242105 | Country of Origin: UNITED STATES |
| Insert Style: VNGP | |
| ANSI Size Code: 3302 | |
| ISO Size Code: 160401 | |
| Insert Shape: V – Diamond (Rhombic) 35-Deg | |
| Included Angle: 35.00 | |
| Inscribed Circle (Decimal Inch): 0.3750 | |
| Inscribed Circle (Inch): 3/8 | |
| Corner Radius (Decimal Inch): 0.0039 | |
| Insert Material: Carbide | |
| Manufacturer Grade: KC5010 | |
| Coating/Finish: TiAlN | |
| Relief Angle: 0.000 | |
| Wiper Edge: No | |
| Insert Thickness (Inch): 3/16 | |
| Insert Thickness (Decimal Inch): 0.1875 | |
| Insert Hand: Neutral | |
| Series: KENLOC | |
| Chip Breaker Operation: Medium Machining | |
| Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness | |
| Side Clearance: Negative | |
| Number Of Cutting Edges: 4 | |
| Hole Diameter (Decimal Inch): 0.1500 | |
| Hole Diameter (mm): 3.81 | |
| Maximum Depth of Cut (mm): 1.25 | |
| Maximum Depth of Cut (Decimal Inch): 0.0492 | |
| ANSI Insert Code: VNGP3302 | |
| ISO Insert Code: VNGP160401 | |
| Insert Holding Method: Pin; Clamp | |
| Width (Inch): 3/8 | |
| Clearance Code: N | |
| Tolerance Code: G | |
| Coating Process: PVD | |
| Rake: Negative | |
| Insert Length (Decimal Inch): 1.3076 | |
| Insert Length (mm): 16.61 | |
| Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel | |
| Primary Workpiece Material Code: P; S; K; M; N | |
| Secondary Workpiece Material Code: P; S; N | |
| Standards: ISO; ANSI | |
| Manufacturers Catalog Number: 1868464 | |
| Material Grade: C3; C4 | |
| Coating Classification: PVD | |
| Chip Breaker: Common | |
| Rake Angle: 10 | |
| Cutting Edge Style: Honed | |
| Industry Standard Number: VNGP3302 | |
| Width (Decimal Inch – 4 Decimals): 0.3750 | |
| Multi-Use Tool: Yes | |
| Full Radius: No | |
| Multi-Use Application: Back Boring; Facing; Turning; Back Turning; Boring | |
| UNSPSC Code: 23242105 | |
| Country of Origin: UNITED STATES |
| MSC# | 05656632 |
| Mfr# | 1868464 |
| Big Book# | 805 |
