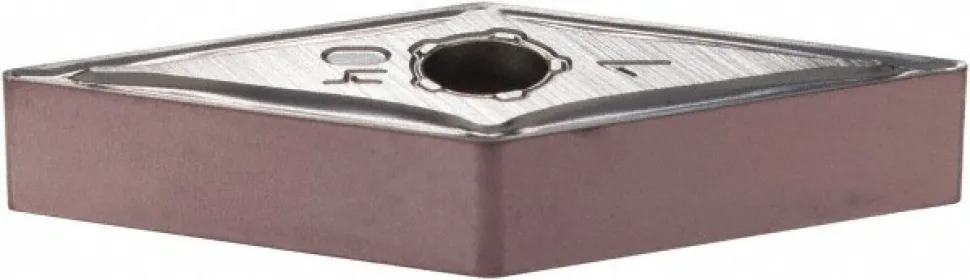

Turning Insert: VNMG331M3M IC806, Carbide
Original price was: 33,00 $.23,89 $Current price is: 23,89 $.
Specifications

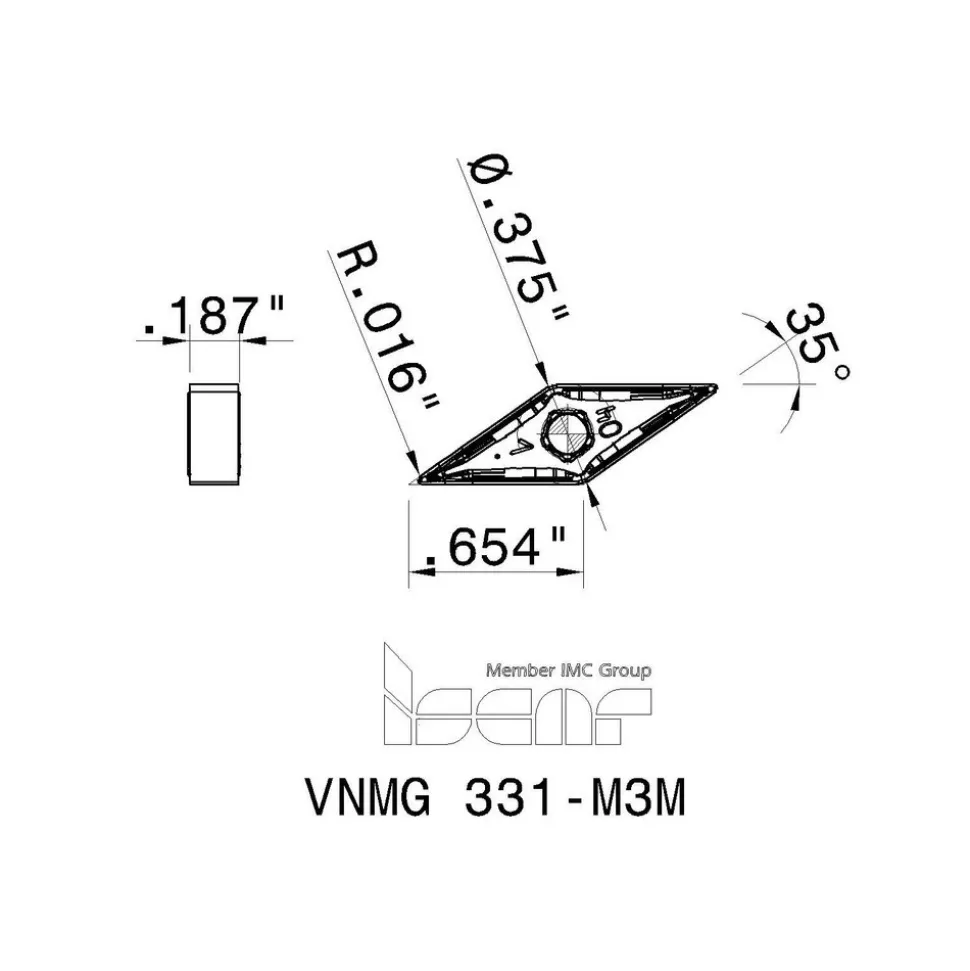

| Insert Style: VNMG | ANSI Size Code: 331 |
| ISO Size Code: 160404 | Insert Shape: V – Diamond (Rhombic) 35-Deg |
| Included Angle: 35.00 | Inscribed Circle (Decimal Inch): 0.3750 |
| Inscribed Circle (Inch): 3/8 | Corner Radius (Inch): 1/64 |
| Corner Radius (Decimal Inch): 0.0156 | Insert Material: Carbide |
| Manufacturer Grade: IC806 | Coating/Finish: TiAlN |
| Relief Angle: 0.000 | Insert Thickness (Inch): 3/16 |
| Insert Thickness (Decimal Inch): 0.1875 | Series: Isoturn |
| Chip Breaker Operation: Medium Machining; Roughing | Grade Characteristics: Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance: Negative | Maximum Depth of Cut (mm): 3.00 |
| Maximum Depth of Cut (Decimal Inch): 0.1180 | ANSI Insert Code: VNMG331 |
| ISO Insert Code: VNMG160404 | Insert Holding Method: Pin; Clamp |
| Clearance Code: N | Tolerance Code: M |
| Coating Process: PVD | Rake: Positive |
| Insert Length (Decimal Inch): 0.6540 | Insert Length (mm): 16.61 |
| Primary Workpiece Material: Superalloy; Titanium | Primary Workpiece Material Code: S |
| Iso Code: VNMG 331-M3M | Standards: ISO 13399 |
| Material Grade: Submicron | Proprietary Coating Designation: SumoTec |
| Chip Breaker: M3M | Full Radius: No |
| UNSPSC Code: 23242105 | Country of Origin: Israel |
| Insert Style: VNMG | |
| ANSI Size Code: 331 | |
| ISO Size Code: 160404 | |
| Insert Shape: V – Diamond (Rhombic) 35-Deg | |
| Included Angle: 35.00 | |
| Inscribed Circle (Decimal Inch): 0.3750 | |
| Inscribed Circle (Inch): 3/8 | |
| Corner Radius (Inch): 1/64 | |
| Corner Radius (Decimal Inch): 0.0156 | |
| Insert Material: Carbide | |
| Manufacturer Grade: IC806 | |
| Coating/Finish: TiAlN | |
| Relief Angle: 0.000 | |
| Insert Thickness (Inch): 3/16 | |
| Insert Thickness (Decimal Inch): 0.1875 | |
| Series: Isoturn | |
| Chip Breaker Operation: Medium Machining; Roughing | |
| Grade Characteristics: Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness | |
| Side Clearance: Negative | |
| Maximum Depth of Cut (mm): 3.00 | |
| Maximum Depth of Cut (Decimal Inch): 0.1180 | |
| ANSI Insert Code: VNMG331 | |
| ISO Insert Code: VNMG160404 | |
| Insert Holding Method: Pin; Clamp | |
| Clearance Code: N | |
| Tolerance Code: M | |
| Coating Process: PVD | |
| Rake: Positive | |
| Insert Length (Decimal Inch): 0.6540 | |
| Insert Length (mm): 16.61 | |
| Primary Workpiece Material: Superalloy; Titanium | |
| Primary Workpiece Material Code: S | |
| Iso Code: VNMG 331-M3M | |
| Standards: ISO 13399 | |
| Material Grade: Submicron | |
| Proprietary Coating Designation: SumoTec | |
| Chip Breaker: M3M | |
| Full Radius: No | |
| UNSPSC Code: 23242105 | |
| Country of Origin: Israel |
| MSC# | 50938703 |
| Mfr# | 5566749 |
