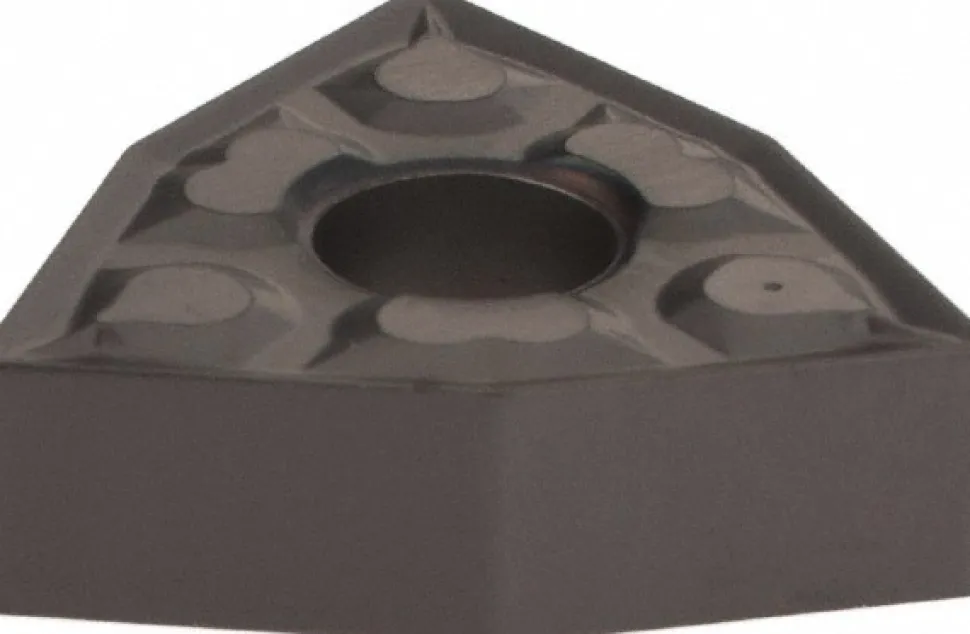

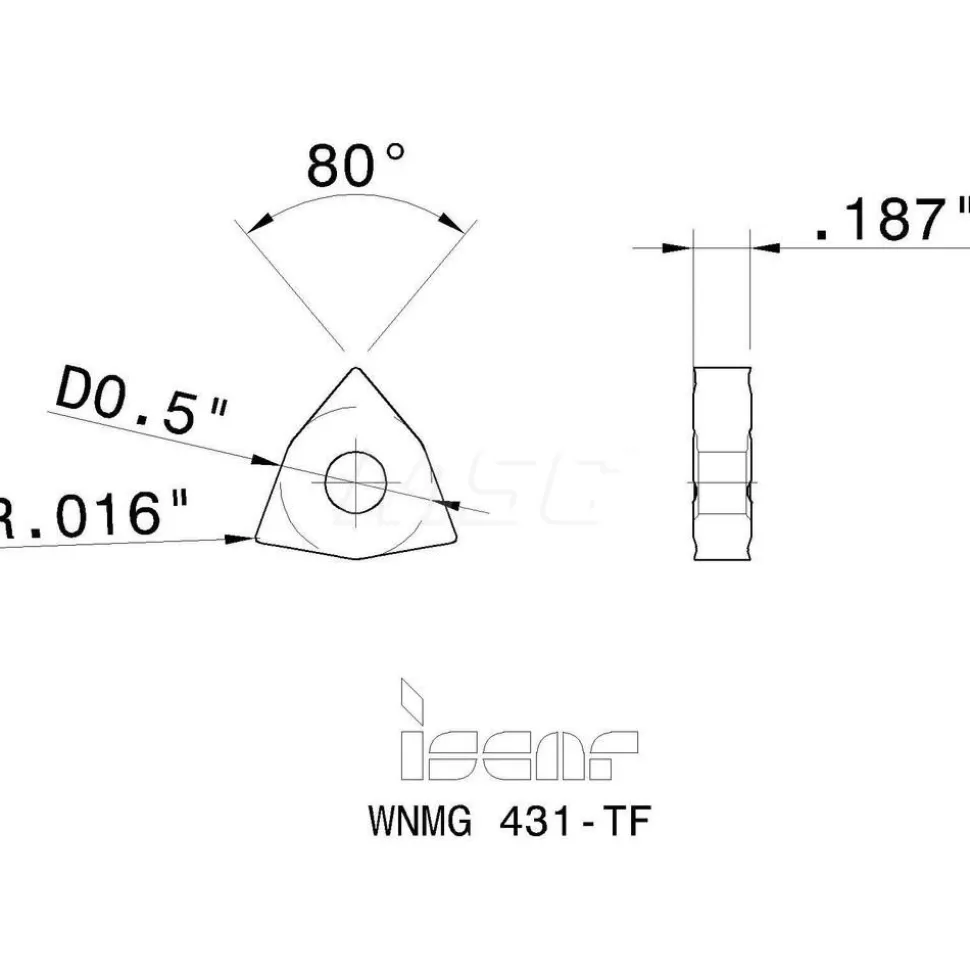

Turning Insert: WNMG 431-TF IC907, Carbide
Original price was: 23,00 $.16,89 $Current price is: 16,89 $.
Specifications
| Insert Style: WNMG | ANSI Size Code: 431 |
| ISO Size Code: 080404 | Insert Shape: W – Trigon 80-Deg |
| Included Angle: 80.00 | Inscribed Circle (Decimal Inch): 0.5000 |
| Inscribed Circle (Inch): 1/2 | Corner Radius (Inch): 1/64 |
| Corner Radius (Decimal Inch): 0.0157 | Insert Material: Carbide |
| Manufacturer Grade: IC907 | Coating/Finish: TiN; TiAlN |
| Relief Angle: 0.000 | Insert Thickness (Inch): 3/16 |
| Insert Thickness (Decimal Inch): 0.1874 | Series: Isoturn |
| Chip Breaker Operation: Medium Machining; Roughing | Grade Characteristics: Cast Iron (K) – High Wear-Resistance; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance: Negative | Hole Diameter (Decimal Inch): 0.2030 |
| Maximum Depth of Cut (Decimal Inch): 0.1570 | ANSI Insert Code: WNMG431 |
| ISO Insert Code: WNMG080404 | Insert Holding Method: Pin; Clamp |
| Clearance Code: N | Tolerance Code: M |
| Coating Process: PVD | Rake: Positive |
| Insert Length (Decimal Inch): 0.3425 | Insert Length (mm): 8.70 |
| Primary Workpiece Material Code: P; S; K; M; N | Iso Code: ISO 13399 |
| Standards: ISO 13399 | Material Grade: C7; C8 |
| Chip Breaker: TF | UNSPSC Code: 23242105 |
| Country of Origin: Israel | |
| Insert Style: WNMG | |
| ANSI Size Code: 431 | |
| ISO Size Code: 080404 | |
| Insert Shape: W – Trigon 80-Deg | |
| Included Angle: 80.00 | |
| Inscribed Circle (Decimal Inch): 0.5000 | |
| Inscribed Circle (Inch): 1/2 | |
| Corner Radius (Inch): 1/64 | |
| Corner Radius (Decimal Inch): 0.0157 | |
| Insert Material: Carbide | |
| Manufacturer Grade: IC907 | |
| Coating/Finish: TiN; TiAlN | |
| Relief Angle: 0.000 | |
| Insert Thickness (Inch): 3/16 | |
| Insert Thickness (Decimal Inch): 0.1874 | |
| Series: Isoturn | |
| Chip Breaker Operation: Medium Machining; Roughing | |
| Grade Characteristics: Cast Iron (K) – High Wear-Resistance; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness | |
| Side Clearance: Negative | |
| Hole Diameter (Decimal Inch): 0.2030 | |
| Maximum Depth of Cut (Decimal Inch): 0.1570 | |
| ANSI Insert Code: WNMG431 | |
| ISO Insert Code: WNMG080404 | |
| Insert Holding Method: Pin; Clamp | |
| Clearance Code: N | |
| Tolerance Code: M | |
| Coating Process: PVD | |
| Rake: Positive | |
| Insert Length (Decimal Inch): 0.3425 | |
| Insert Length (mm): 8.70 | |
| Primary Workpiece Material Code: P; S; K; M; N | |
| Iso Code: ISO 13399 | |
| Standards: ISO 13399 | |
| Material Grade: C7; C8 | |
| Chip Breaker: TF | |
| UNSPSC Code: 23242105 | |
| Country of Origin: Israel |
| MSC# | 71465934 |
| Mfr# | 5505131 |
| Big Book# | 810 |
