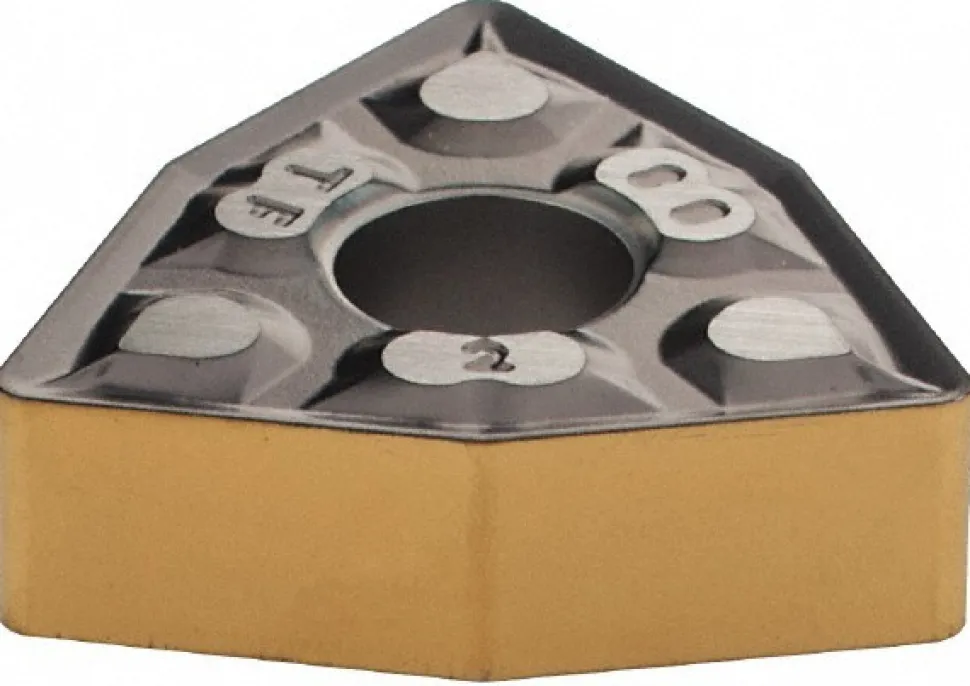

Turning Insert: WNMG432TF GR IC807, Carbide

Turning Insert: WNMG432TF GR IC807, Carbide

16,99 $

SKU: SKUP30B4BfgAh Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: Iscar Brand: Iscar

Description
Reviews (0)

Specifications

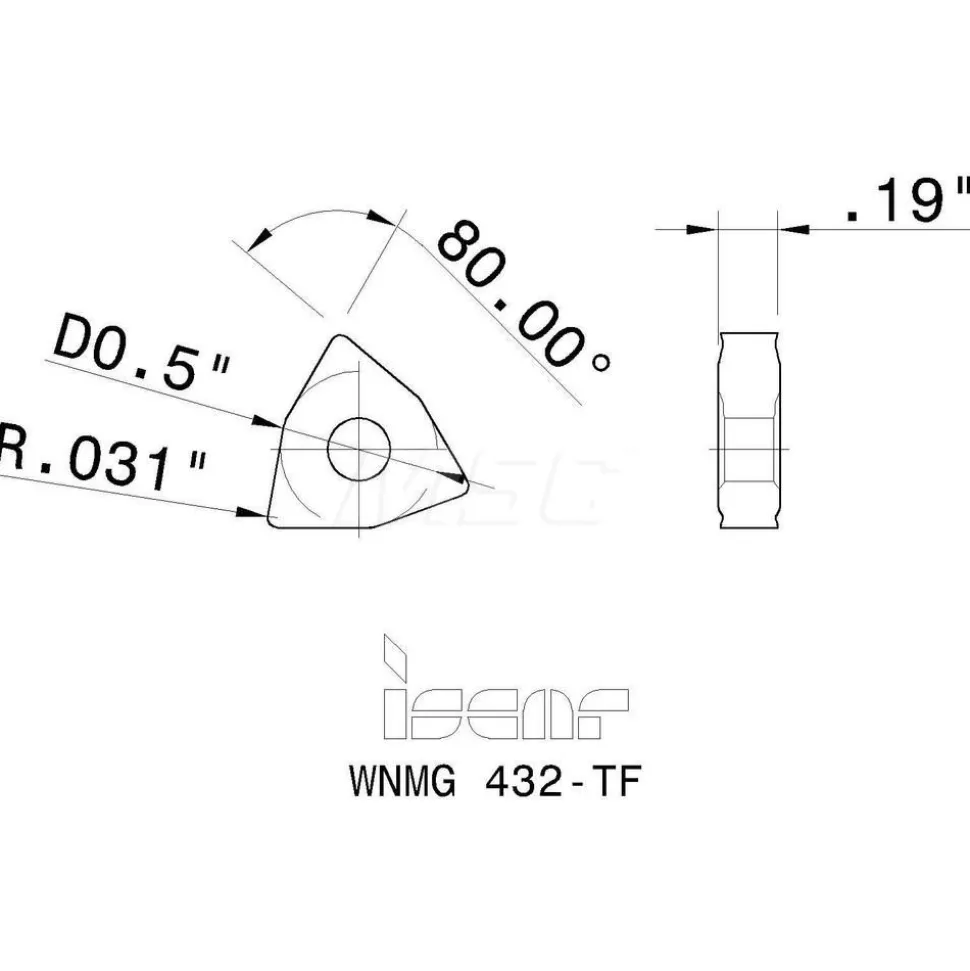

Insert Style: WNMG	ANSI Size Code: 432
ISO Size Code: 080402	Insert Shape: W – Trigon 80-Deg
Included Angle: 80.00	Inscribed Circle (Decimal Inch): 0.5000
Inscribed Circle (Inch): 1/2	Corner Radius (Inch): 1/32
Corner Radius (Decimal Inch): 0.0315	Insert Material: Carbide
Manufacturer Grade: IC807	Coating/Finish: TiAlN
Relief Angle: 0.000	Insert Thickness (Inch): 3/16
Insert Thickness (Decimal Inch): 0.1874	Series: Isoturn
Chip Breaker Operation: Medium Machining; Roughing	Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Negative	Hole Diameter (Decimal Inch): 0.2030
Maximum Depth of Cut (Decimal Inch): 0.1570	ANSI Insert Code: WNMG432
ISO Insert Code: WNMG080402	Insert Holding Method: Pin; Clamp
Clearance Code: N	Tolerance Code: M
Coating Process: PVD	Rake: Positive
Insert Length (Decimal Inch): 0.3425	Insert Length (mm): 8.70
Primary Workpiece Material Code: P; S; K; M	Iso Code: ISO 13399
Standards: ISO 13399	Chip Breaker: TF
UNSPSC Code: 23242105	Country of Origin: Israel
Insert Style: WNMG
ANSI Size Code: 432
ISO Size Code: 080402
Insert Shape: W – Trigon 80-Deg
Included Angle: 80.00
Inscribed Circle (Decimal Inch): 0.5000
Inscribed Circle (Inch): 1/2
Corner Radius (Inch): 1/32
Corner Radius (Decimal Inch): 0.0315
Insert Material: Carbide
Manufacturer Grade: IC807
Coating/Finish: TiAlN
Relief Angle: 0.000
Insert Thickness (Inch): 3/16
Insert Thickness (Decimal Inch): 0.1874
Series: Isoturn
Chip Breaker Operation: Medium Machining; Roughing
Grade Characteristics: Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Negative
Hole Diameter (Decimal Inch): 0.2030
Maximum Depth of Cut (Decimal Inch): 0.1570
ANSI Insert Code: WNMG432
ISO Insert Code: WNMG080402
Insert Holding Method: Pin; Clamp
Clearance Code: N
Tolerance Code: M
Coating Process: PVD
Rake: Positive
Insert Length (Decimal Inch): 0.3425
Insert Length (mm): 8.70
Primary Workpiece Material Code: P; S; K; M
Iso Code: ISO 13399
Standards: ISO 13399
Chip Breaker: TF
UNSPSC Code: 23242105
Country of Origin: Israel
