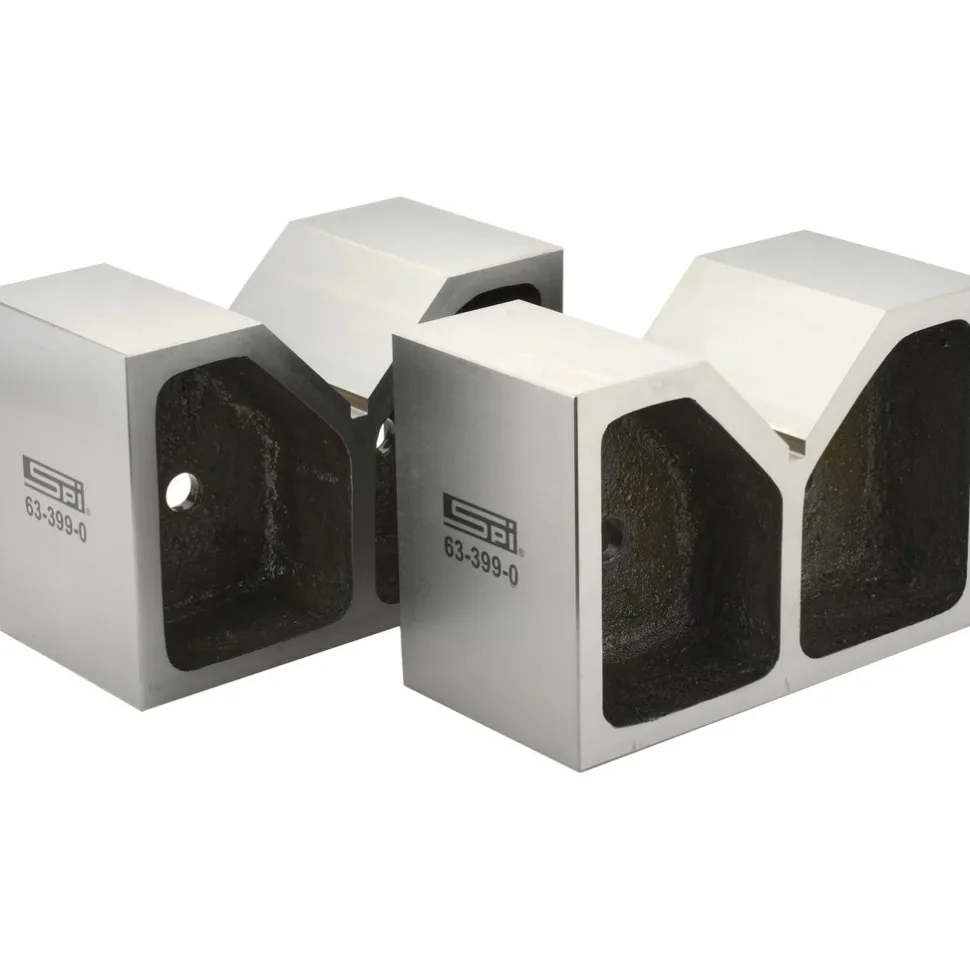

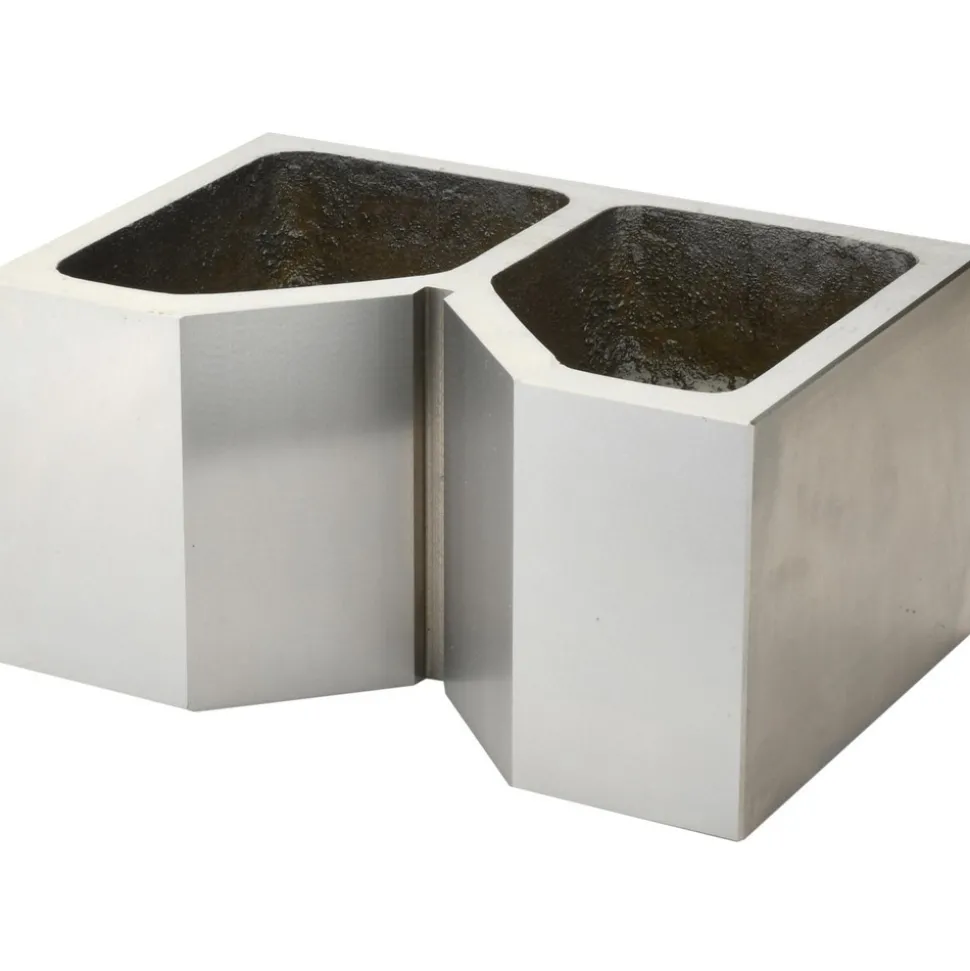

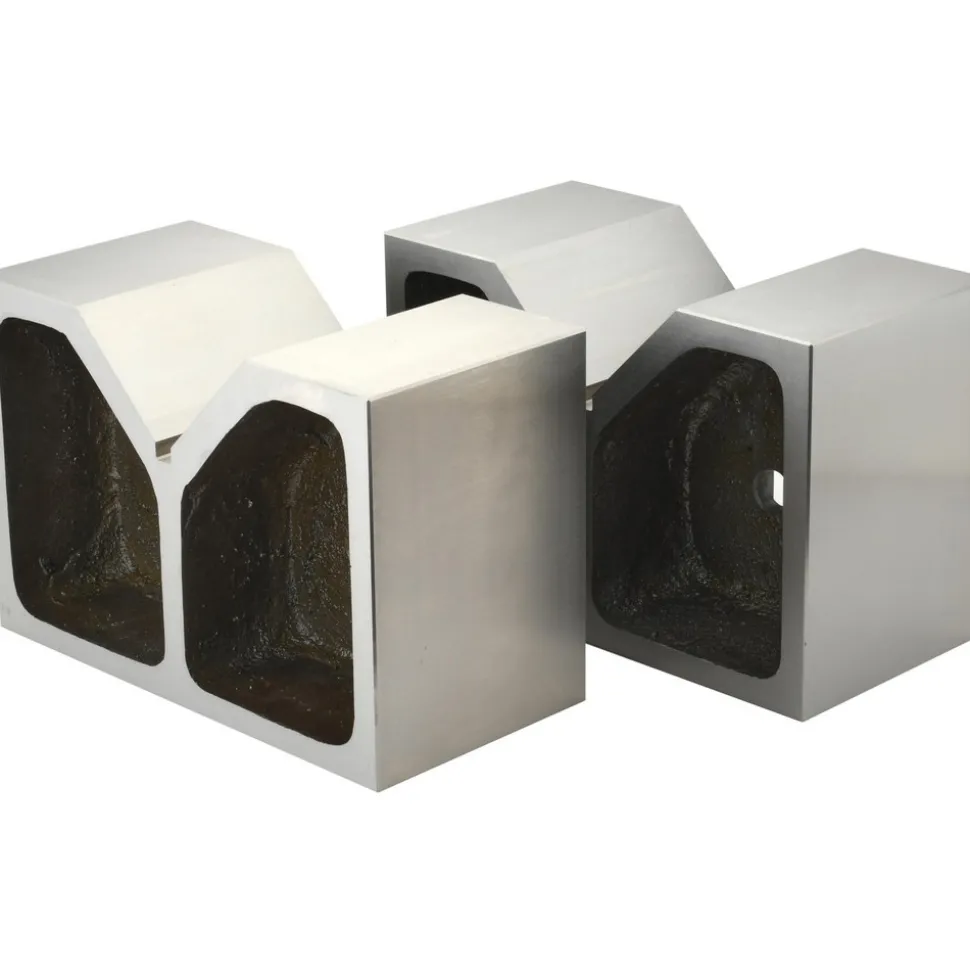

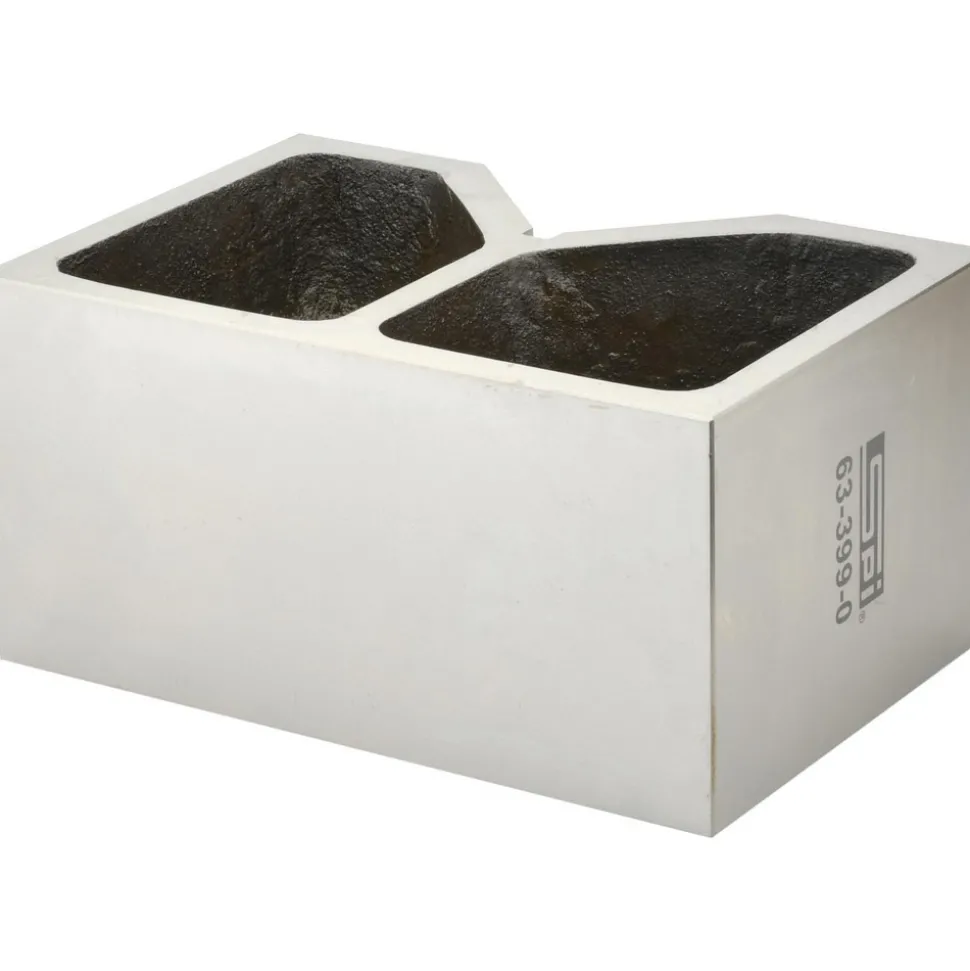

V-Block: 5-1/8″ Max Capacity, 90° V Angle
124,89 $
Specifications
| Overall Length (Inch): 12 | Overall Length (mm): 304.80 |
| Overall Length (Decimal Inch): 12.0000 | Overall Width (mm): 152.40 |
| Overall Width (Inch): 6 | Overall Height (Inch): 8 |
| Overall Height (Decimal Inch): 8.0000 | Overall Height (mm): 203.20 |
| V Angle: 90 | Maximum Capacity of V (Inch): 5-1/8 |
| Maximum Capacity of V (mm): 130.18 | Material: Cast Iron |
| V Parallelism (micro m): 30.00 | V Parallelism (Decimal Inch): 0.0002 |
| V Accuracy (Decimal Inch): 0.000200 | Magnetic: No |
| Squareness Per 1 Inch (micro m): 30.00 | Large V Width (Inch): 5-1/8 |
| Sold As Pair: Matched Pair | Squareness (Decimal Inch): 0.001200 |
| UNSPSC Code: 41111627 | |
| Overall Length (Inch): 12 | |
| Overall Length (mm): 304.80 | |
| Overall Length (Decimal Inch): 12.0000 | |
| Overall Width (mm): 152.40 | |
| Overall Width (Inch): 6 | |
| Overall Height (Inch): 8 | |
| Overall Height (Decimal Inch): 8.0000 | |
| Overall Height (mm): 203.20 | |
| V Angle: 90 | |
| Maximum Capacity of V (Inch): 5-1/8 | |
| Maximum Capacity of V (mm): 130.18 | |
| Material: Cast Iron | |
| V Parallelism (micro m): 30.00 | |
| V Parallelism (Decimal Inch): 0.0002 | |
| V Accuracy (Decimal Inch): 0.000200 | |
| Magnetic: No | |
| Squareness Per 1 Inch (micro m): 30.00 | |
| Large V Width (Inch): 5-1/8 | |
| Sold As Pair: Matched Pair | |
| Squareness (Decimal Inch): 0.001200 | |
| UNSPSC Code: 41111627 |
| MSC# | 02662831 |
| Mfr# | AVB0653 |
| Big Book# | 1845 |
